HIKVISION DS-K2604 - RS485 Card Reader Connection

DS-K2600 Series Access Controller
24
4.2.5 RS485 Card Reader Connection

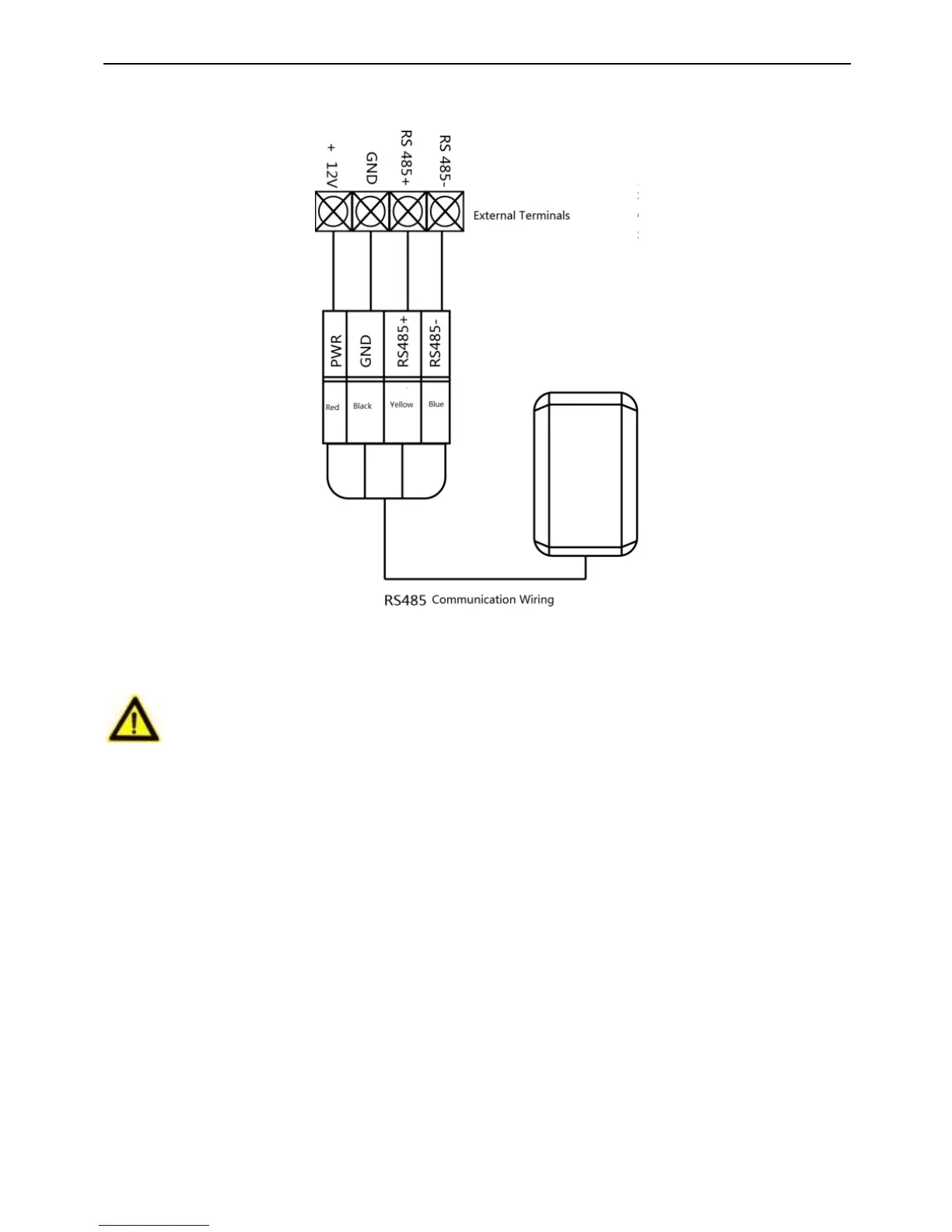

Figure 4-5 Wiring diagram of RS485
Note:
If the card reader is installed too far away from the access controller, you can use an external
power supply.
