DS-K2800 Serial Access Controller
16
4.2 Installing Door Lock
4.2.1 Installation of Cathode Lock

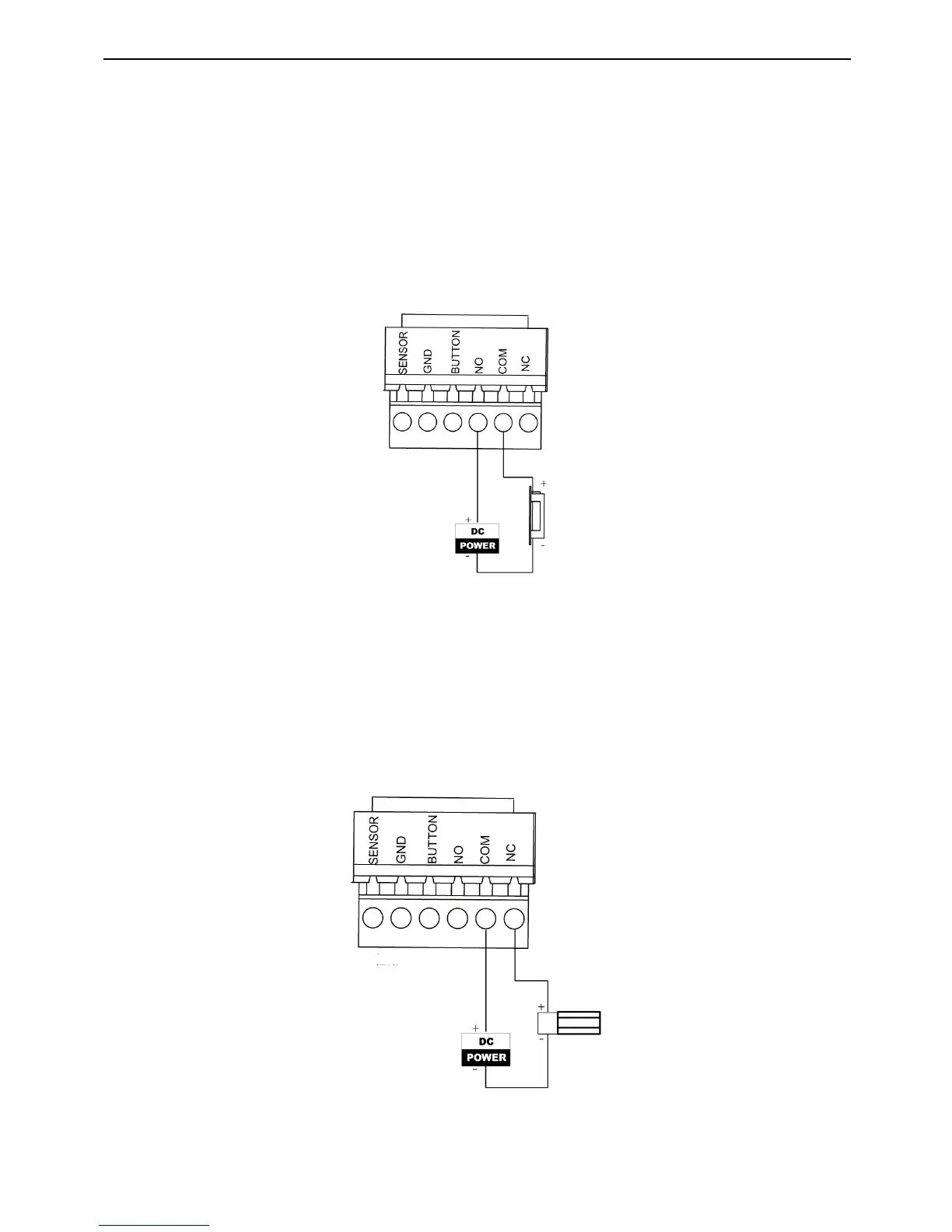

Figure 4-3 Wiring diagram of cathode lock
4.2.2 Installation of Anode Lock
Figure 4-4 Wiring diagram of anode lock
