HIKVISION DS-KD-M User Manual

No. Descripon
6 Nametag
7 TAMPER
8 Network Interface
9
Module-Connecng Interface
(output)
10 Terminals
Note
●
Nametag area supports insert customized name card. The
suggested card size is: 58 (L) x 11.7(W) mm.
●
The module connecng interface is used to connect other
funcon module, such as nametag module, keypad module,
card reader module, etc. All these modules are known as sub
module.
Two-Wire Main Unit

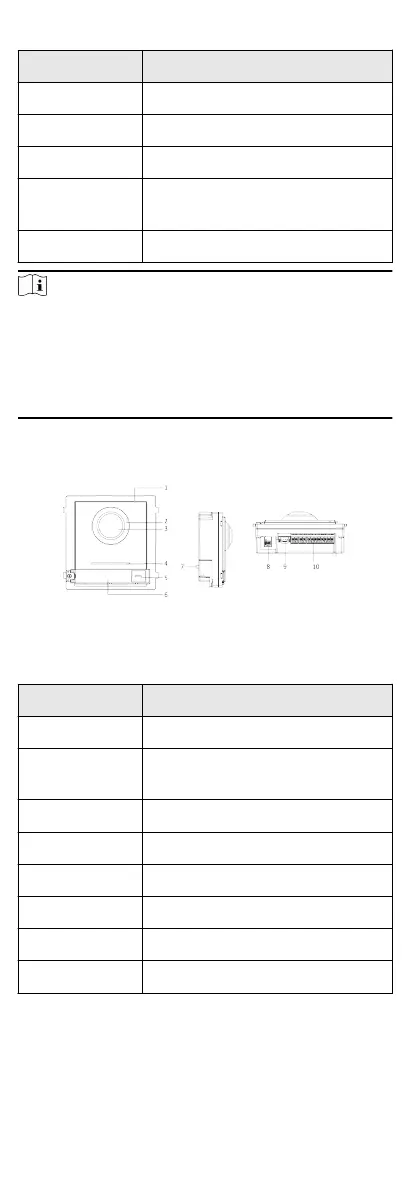

Figure 2-2 Two-Wire Main Unit
Table 2-2 Appearance Descripon
No. Descripon
1 Microphone
2
Low Illuminaon IR Supplement
Light
3 Built-in Camera
4 Loudspeaker
5 Call Buon
6 Nametag
7 TAMPER
8 Two-Wire Interface
2

HIKVISION DS-KD-M Specifications

General

Product type	Card reader
Mounting type	Surface
Product color	Black
Brand compatibility	Hikvision
International Protection (IP) code	IP65
Package weight	421 g
Quantity per pack	1 pc(s)
Storage temperature (T-T)	10 - 95 °C
Operating temperature (T-T)	-40 - 55 °C
DC input voltage	12 V
Sustainability certificates	REACH, RoHS, WEEE

Weight and Dimensions

Depth	33.7 mm
Width	98.5 mm
Height	100 mm
Weight	160 g
