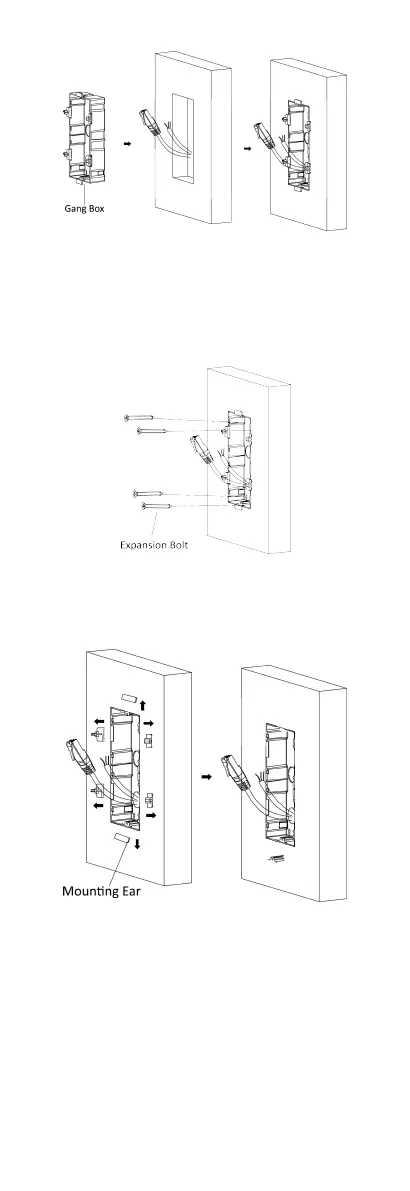

Figure 4-11 Mark the Screw Holes
4. Drill 4 holes according to the marks on the wall, and insert the
expansion sleeves into the screw holes. The suggested size of
hole is 6 (diameter) × 45 (depth) mm.
5. Fix the gang box with 4 expansion bolts.
Figure 4-12 Fix the Gang Box
6. Fill the gap between the gang box and the wall with concrete.
Remove the mounng ears with tool aer concrete is dry.
Figure 4-13 Remove the Mounng Ears
7. Connect cables and insert the modules.
1) Connect Cable 1 and one end of Cable 2 to the
corresponding interfaces of the main unit, then insert the
main unit into the upper grid.
2) Connect the other end of Cable 2 to the input interface of
the sub module. Insert it into the lower grid.
18
