HIKVISION DS-KV8102-IM Quick Start Guide

Video Intercom Door Station·Quick Start Guide
1
1 Appearance
1.1 Appearance of DS-KV8X02-IM
For device DS-KV8X02-IM, the number of calling buttons varies according to its model.
Take the figure of device DS-KV8402-IM as an example.
 For device DS-KV8102-IM, there is only 1 calling button.
 For device DS-KV8202-IM, there are 2 calling buttons.
 For device DS-KV8402-IM, there are 4 calling buttons.
8

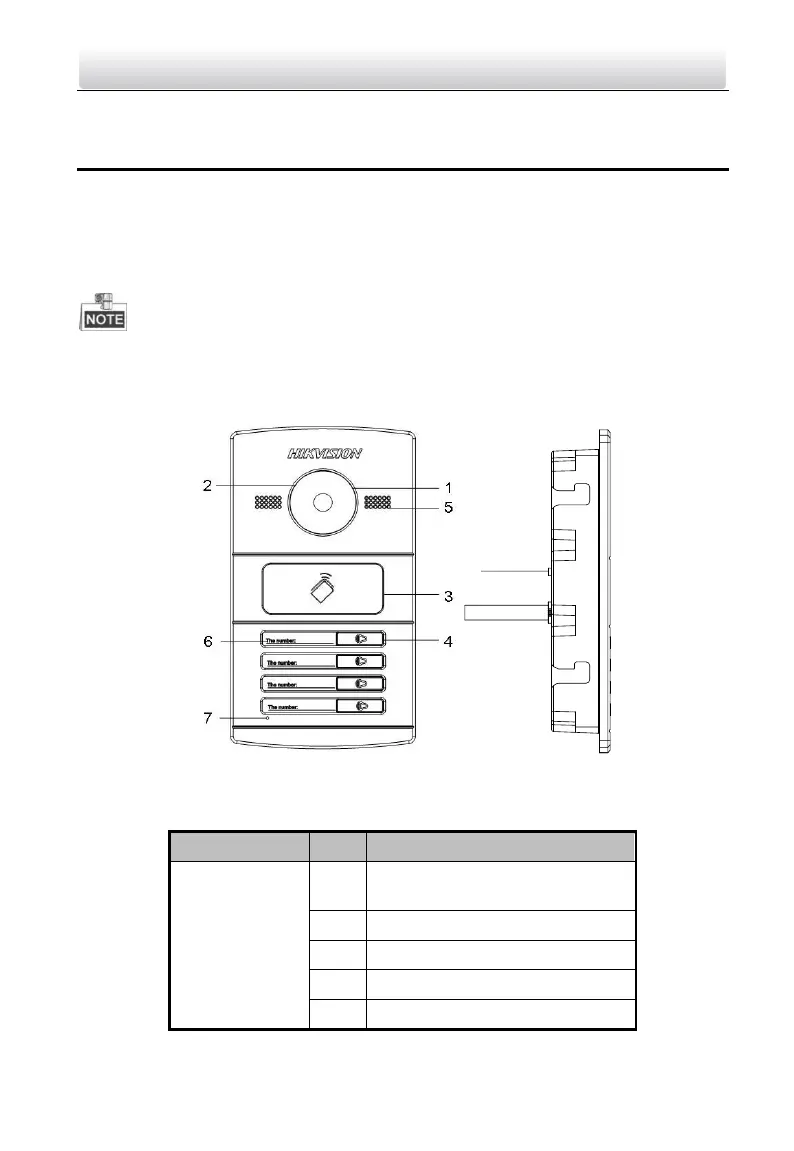

Figure 1-1 Appearance of DS-KV8402-IM
Table 1-1 Description of DS-KV8X02-IM
Models
No.
Description
DS-KV8102-IM
DS-KV8202-IM
DS-KV8402-IM
1
Low Illumination Supplement
Light
2
Built-in Camera
3
Card Induction Area
4
Calling Button
5
Loudspeaker

HIKVISION DS-KV8102-IM Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	1 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Proper use	Outdoor
Product color	Aluminum
International Protection (IP) code	IP65
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Indoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Outdoor unit power type	AC/DC
Power consumption (typical)	12 W
LED type	IR
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	25 fps
Maximum video resolution	1280 x 720 pixels

Weight and Dimensions

Depth	33 mm
Width	100 mm
Height	182 mm
Door station dimensions (WxDxH)	100 x 33 x 182 mm
