4. Secure the body of junction box on the wall with four PA4 × 25
screws.

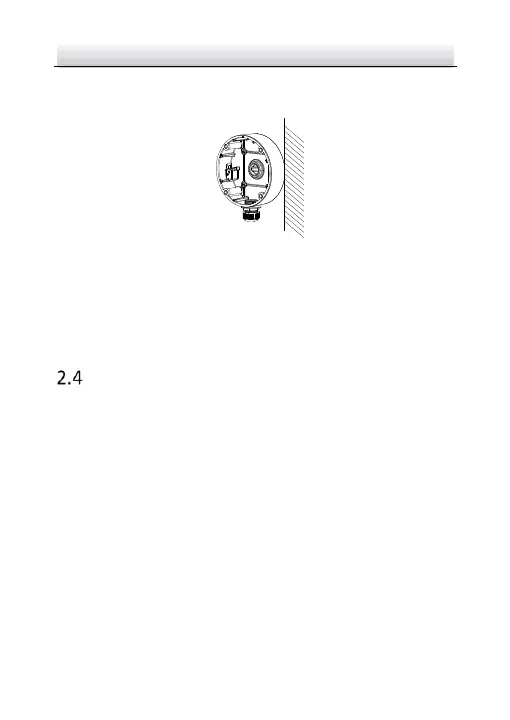

Figure 2-9 Secure the Body of Junction Box on the Ceiling/Wall
5. Combine the cover of junction box with its body with supplied
screws.
6. Repeat steps 5 to 8 of 2.2 Ceiling Mounting to complete the
installation.
Mounting with Inclined Base
Before you start:
● You need to purchase an inclined base separately if you adopt
the mounting with an inclined base.
● Both wall mounting and ceiling mounting are suitable for the
turret camera. Wall mounting will be taken as an example in
this section. And you can take steps of wall mounting as a
reference for the ceiling mounting.
Steps:
1. Paste the drill template to the wall.
2. Drill screw holes and the cable hole (optional) on the wall
according to the supplied drill template.
