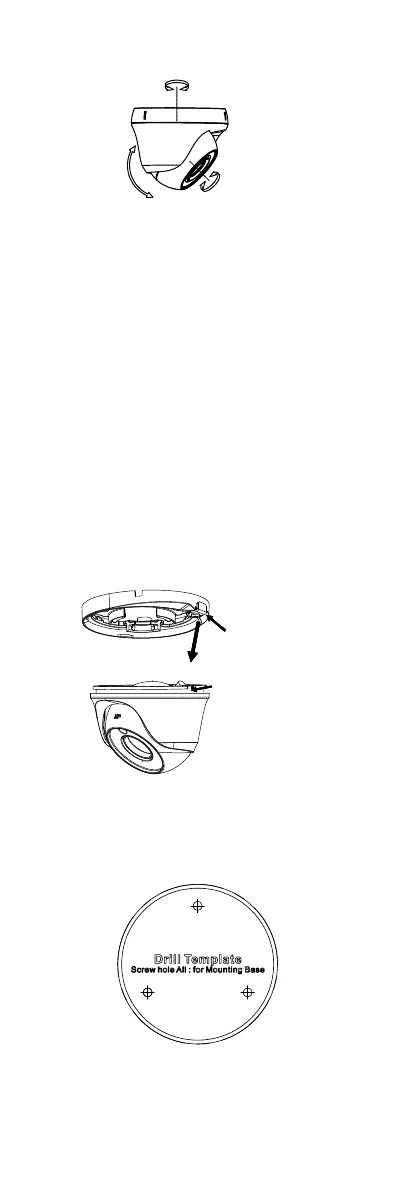

Figure 2-5 3-axis Adjustment
1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.2 Installation of Type III Camera
Before you start:
Both wall mounting and ceiling mounting are suitable
for the camera. We take ceiling mounting as an example
in this section. You can take the steps of ceiling
mounting as a reference, when adopting wall mounting.
Steps:
1. Disassemble the turret camera.
1). Use the screw driver to loosen the screw on the
mounting base.
2). Align the notch to the clip plate to separate the
mounting base from the camera body.
Figure 2-6 Disassemble the Camera
2. Paste the drill template (supplied) to the place
where you want to install the camera.
3. Drill the screw holes and the cable hole (optional)
on the ceiling according to the drill template.
Figure 2-7 Drill Template
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
4. Attach the mounting base to the ceiling, and secure
them with supplied screws.
To Next Page
