2.3 Ties,clamps and tapes:

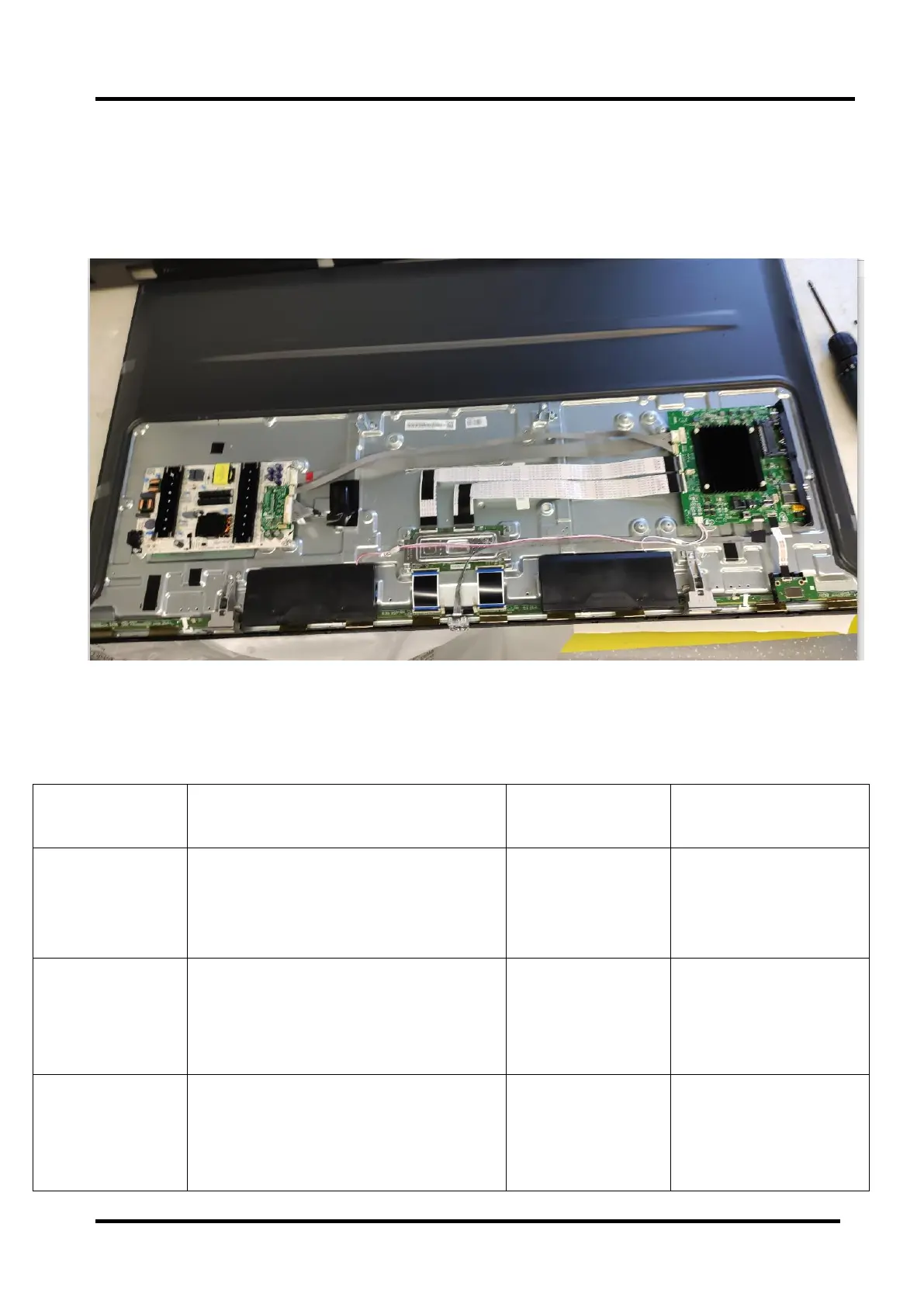

To show the positions where ties and clamps and tapes should be, for checking after
servicing.Before disassemble the TV ,besure to take photes for the TV assembly example
for 55U69GEVS.
2.2 TV boards part list
Main board
Boards function difference
Main chassis type
For Series
2RSAG7.820.11711\R
OH
1. Lateral terminal and vertical terminal.
2. Different AMP design
3.Adapt different panel，such as OLED and LCD
MT9900
55U69GEVS
RSAG7.820.11959\RO
H
1. Lateral terminal and vertical terminal.
2. Different AMP design
3.Adapt different panel，such as OLED and Mini
LED
MT9900
65E80GEVS

Hisense 55E7HQ Specifications

General

Screen shape	Flat
Response time	8 ms
Display diagonal	55 \
Display brightness	250 cd/m²
Display technology	LED
Native aspect ratio	16:9
Contrast ratio (typical)	3800:1
Motion interpolation technology	-
Tuner type	Digital
Analog signal format system	Not supported
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Operating system version	U5
Operating system installed	VIDAA
Hybrid Broadcast Broadband TV (HbbTV) version	2.0.3
Audio decoders	DTS, DTS Virtual:X
RMS rated power	8 W
Number of speakers	2
Bluetooth version	5.0
Product color	Black
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	110 W
Package depth	136 mm
Package width	1364 mm
Package height	864 mm
Package weight	17500 g
Repairability index	6.5

Weight and Dimensions

Depth (with stand)	274 mm
Width (with stand)	1232 mm
Height (with stand)	768 mm
Weight (with stand)	11500 g
Depth (without stand)	74 mm
Height (without stand)	711 mm
Weight (without stand)	11300 g
