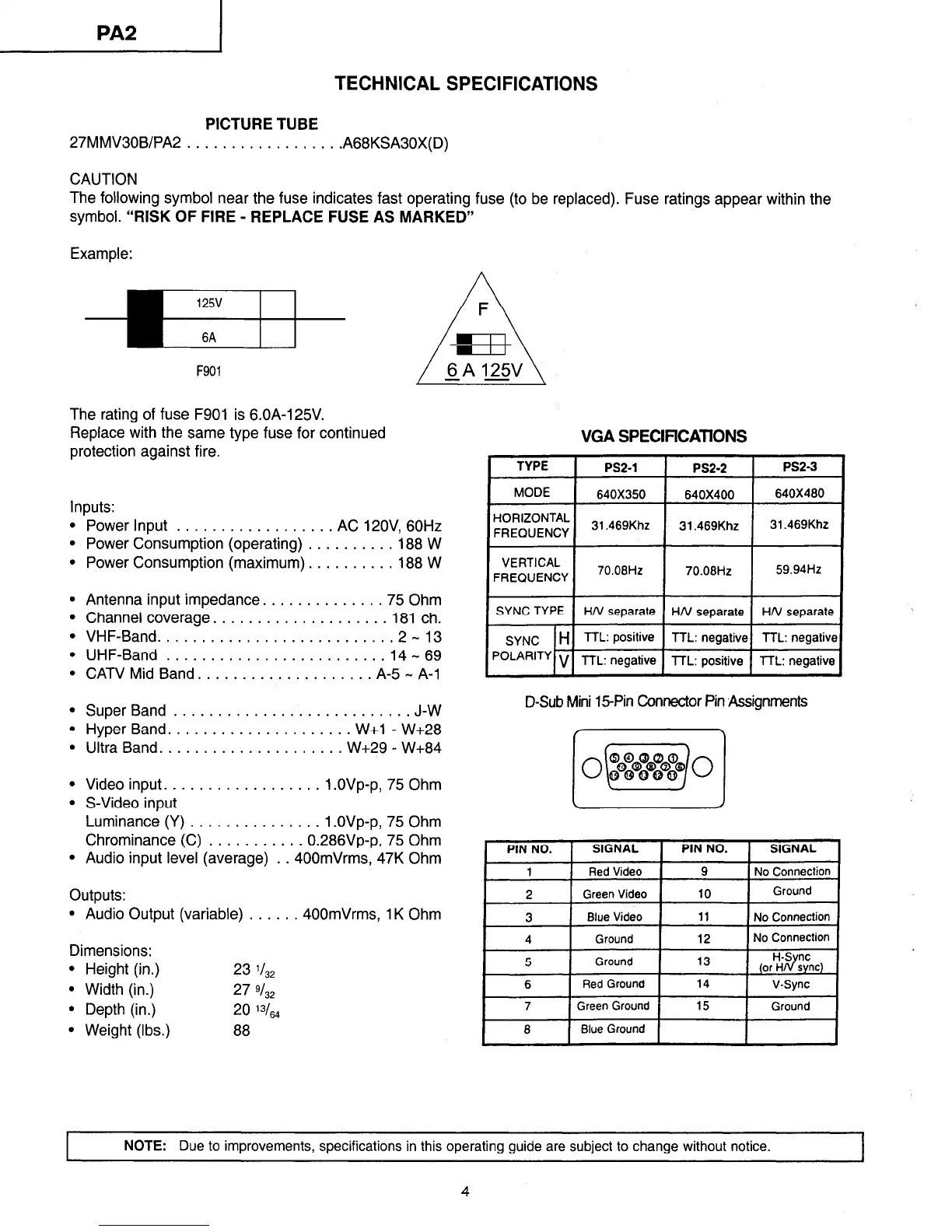

TECHNICAL SPECIFICATIONS
PICTURE TUBE
27MMV30B/PA2 . . . . . . . . . . . . . . . . .A68KSA30X(D)
CAUTION
The following symbol near the fuse indicates fast operating fuse (to be replaced). Fuse ratings appear within the
symbol. “RISK OF FIRE - REPLACE FUSE AS MARKED”
Example:
F901
--
The rating of fuse F901 is 6.OA-125V.
Replace with the same type fuse for continued
protection against fire.
Inputs:
l
Power Input .................. AC 12OV, 60Hz
l
Power Consumption (operating) .......... 188 W
l
Power Consumption (maximum). ......... 188 W
. Antenna input impedance. ............ .75 Ohm
l
Channel coverage. ................... 181 ch.
l
VHF-Band .......................... .2- 13
l
UHF-Band ......................... 14 - 69
l
CATV Mid Band. ................... A-5 - A-l
l
Super Band ........................... J-W
l
Hyper Band. .................... W+l - W+28
l
Ultra Band. .................... W+29 - W+84
. Video input. ................. 1 .OVp-p, 75 Ohm
l
S-Video input
Luminance (Y) ............... 1 .OVp-p, 75 Ohm
Chrominance (C) ........... 0.286Vp-p, 75 Ohm
l
Audio input level (average) . .400mVrms, 47K Ohm
outputs:
l
Audio Output (variable) ...... 400mVrms, 1K Ohm
Dimensions:
l
Height (in.)
l
Width (in.)
l
Depth (in.)
l
Weight (Ibs.)
23 ‘l32
27 9/32
20
‘3/64
88
VGA SPECIFICATONS
1 TYPE 1
PS2-1 1 Ps2-2 1 PS2-3 i
MODE
640X350 640X400
640X480
HORIZONTAL
FREQUENCY
31.469Khz
31.469Khz
31.469Khz
1 F;E;;&y 1 70.06Hz 1 70.06Hz 1 59.94Hz 1
SYNC TYPE
HN separate HN separate HN separate
I
SYNC H TTL: positive TTL: negative TTL: negative
PoLAR’TY V TTL: negative TTL: positive TTL: negative
D-Sub Mini 15Pin Connector Pin ,Assignments
PIN NO. SIGNAL PIN NO. SIGNAL
1 Red Video 9 No Connection
2 Green Video
10
Ground
3 Blue Video 11 No Connection
4 Ground 12 No Connection
5
Ground 13
H-S nc
(or Hd sync)
6
Red Ground 14 V-Sync
7
Green Ground 15
Ground
8
Blue Ground
NOTE:
Due to improvements, specifications in this operating guide are subject to change without notice.
