English

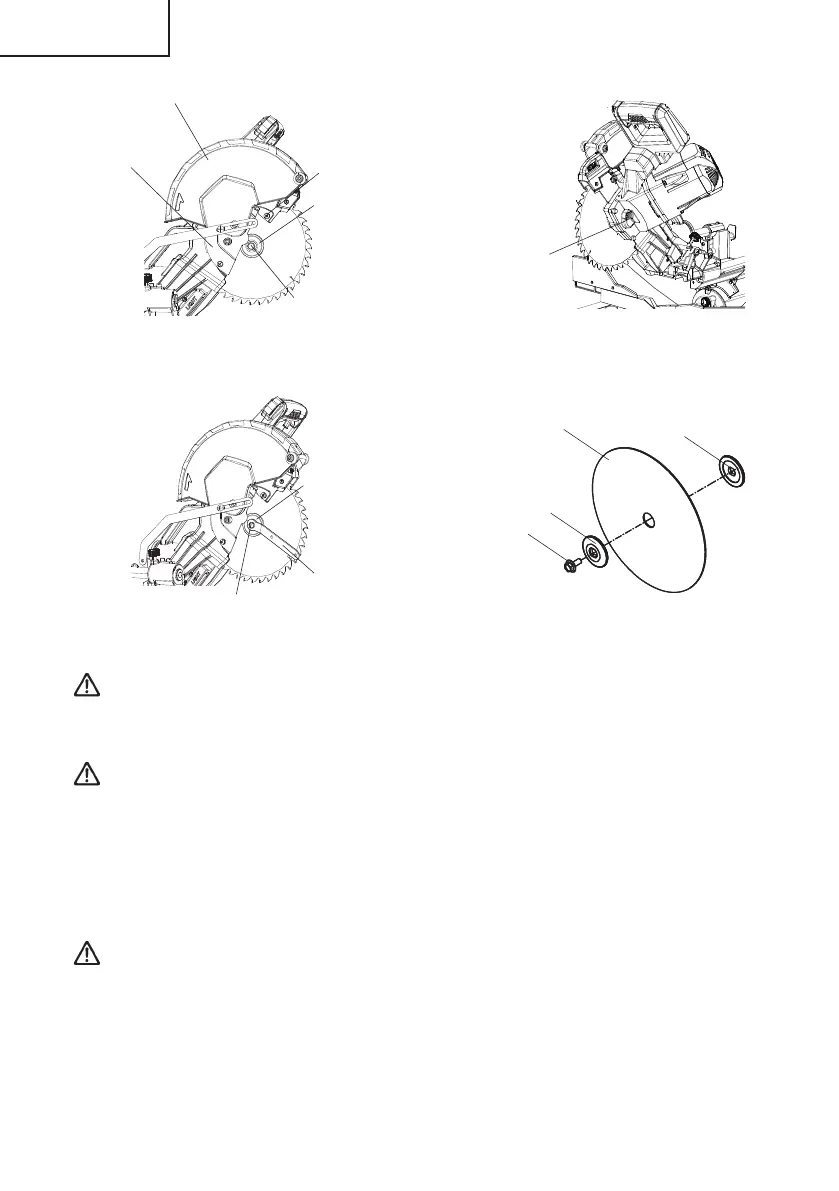

Fig. 44-a

Lower guard

Cover plate

screw

8 mm bolt

Fig. 44-b

Spindle lock

Blade end

spanner

8 mm bolt

Washer (B)

Fig. 44-c

Washer (B)

8 mm bolt

Blade

Washer (A)

Fig. 44-d

Washer (B)

Cover plate

WARNING: When mounting the saw blade, conﬁ rm that the rotation indicator

mark on the saw blade and the rotation direction of the lower

guard (see Fig. 1) are properly matched.

CAUTION: * Conﬁ rm that the spindle lock has returned to the retract position

after installing or removing the saw blade.

* Tighten the 8 mm bolt so it does not come loose during operation.

Conﬁ rm the 8 mm bolt has been properly tightened before the

power tool is started.

2. Mounting the saw blade

WARNING: Unplug the mitre saw before changing/installing the blade.

(1) Select a 255 mm blade, making sure the rotation arrow on the blade matches the

clockwise rotation arrow on the lower guard, and the blade teeth are pointing downward.

(2) Place the blade, washer (B) against the blade. Thread the 8 mm bolt in a

counterclockwise direction.
