2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened.
Should any of the screws be lossened, retighten them immediately.
WARNING: Using this drill with loosened screws is extremely dangerous.
3. Keeping after use
When not in use, the Power tool should be kept in a dry place out of the reach of children.
4. Inspecting the carbon brushes (Fig. 4)
The Motor employs carbon brushes which are
consumable parts. When they become worn to
or near the ”wear limit“, it could result in motor
trouble. When an auto-stop carbon brush is
equipped, the motor will stop automatically. At
that time, replace both carbon brushes with
new ones which have the same carbon brush
Numbers shown in the figure. In addition, al-
ways keep carbon brushes clean and ensure
that they slide freely within the brush holders.
NOTE: Use HITACHI carbon brush number
indicated in Fig. 4
5. Replacing carbon brushes
Disassemble the brush caps with a slotted-head
screwdriver. The carbon brushes can then be
easily removed.
SERVICE AND REPAIRS
All quality power tools will eventually require servicing or replacement of parts because of
wear from normal use. To assure that only authorized replacement parts will be used, all
service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER,
ONLY.
NOTE:
Specifications are subject to change without any obligation on the part of the HITACHI.

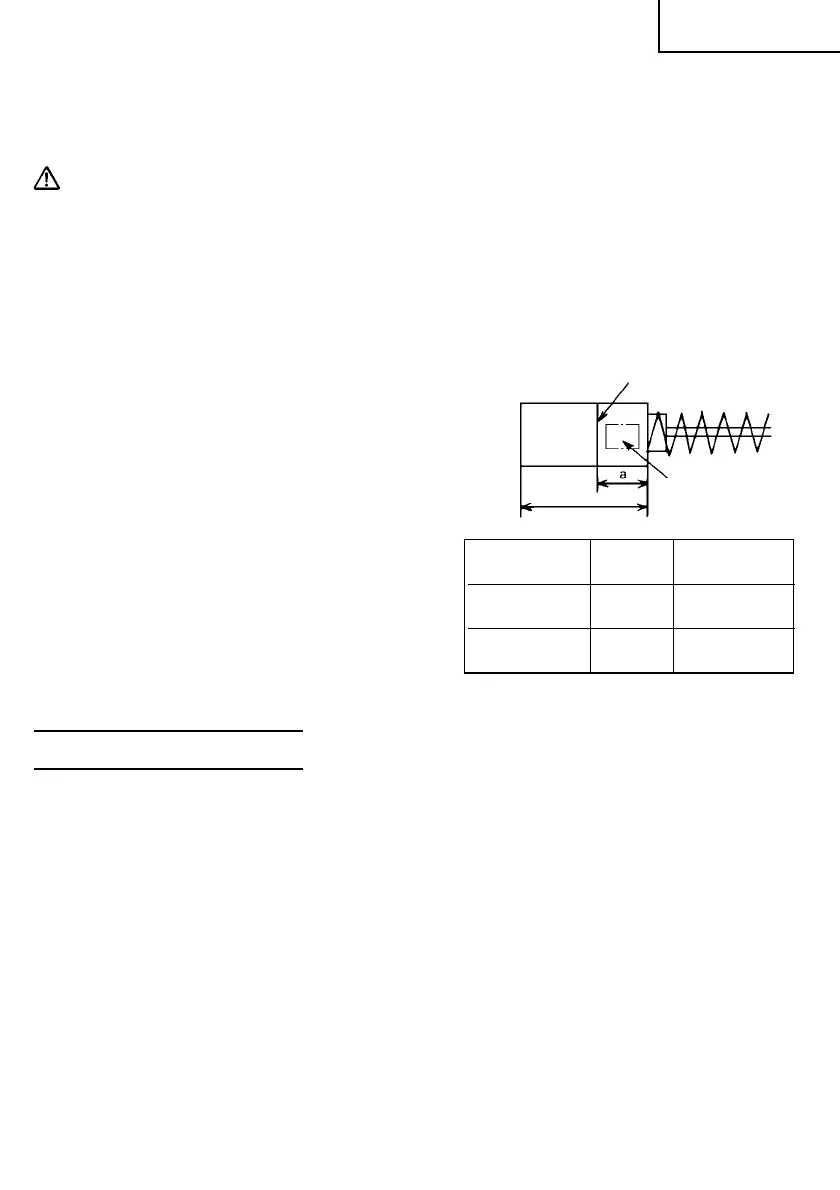

Fig. 4
Wear limit
No. of carbon
brush
0.67" (17mm)
a
No. of
carbon brush
Usual carbon 0.24"
43
brush (6 mm)
Auto-stop 0.28"
carbon brush (7 mm)
73

Hitachi D13 Specifications

General

Input power	720 W
Power source	AC
Idle speed (max)	650 RPM
Drilling diameter in wood (max)	40 mm
Drilling diameter in steel (max)	13 mm
Chuck type	Keyless
Adjustable speed	Yes

Weight and Dimensions

Weight	3000 g
