Parts and functions

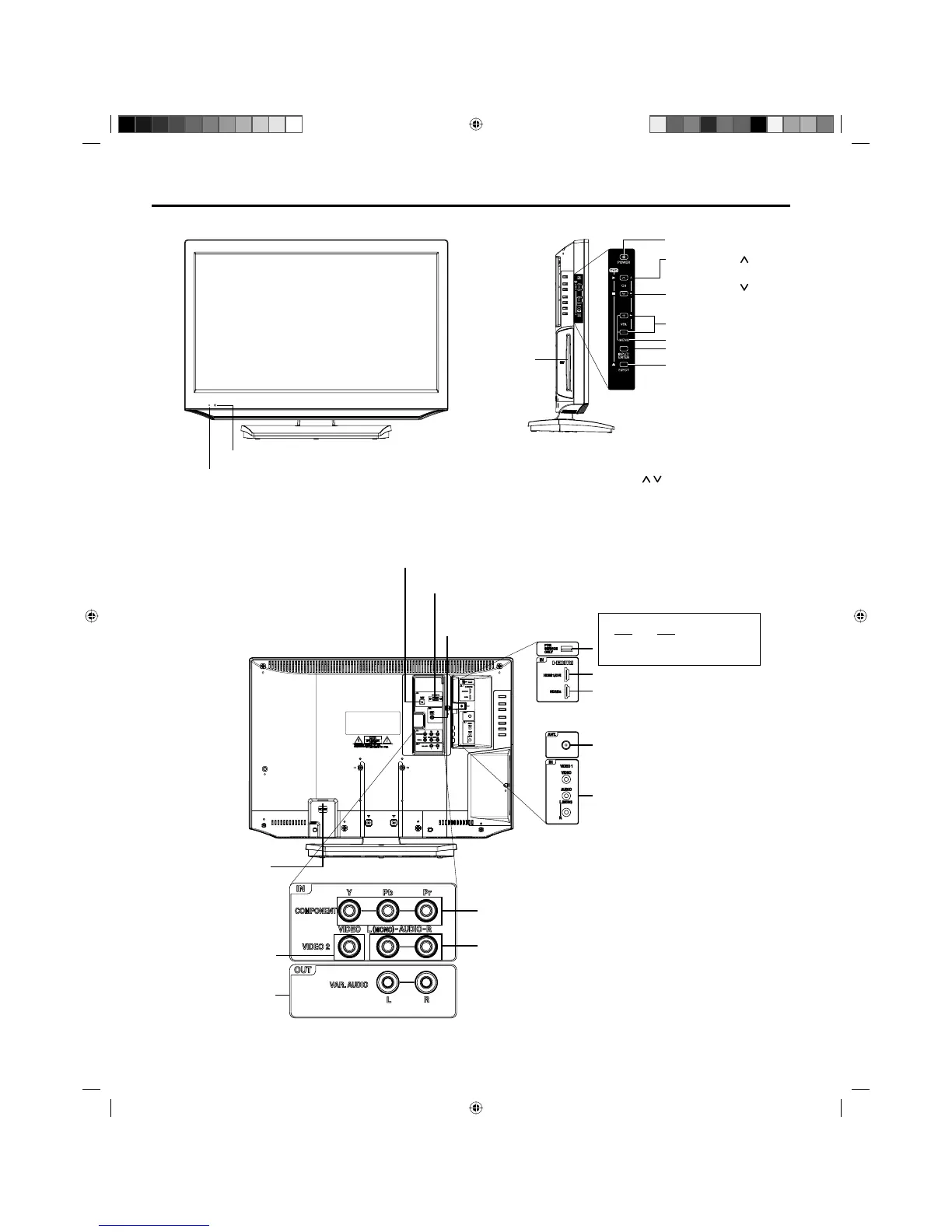

Front
Press and hold both VOL (VOLUME) +/– at the
same time for 1 second to display the menu screen.
CH (CHANNEL) / buttons, VOL (VOLUME)
+/– buttons and INPUT/ENTER button can be
used to select the desired setting during the
menu screen operations.
INPUT/ENTER button
VOL (VOLUME)
+/– buttons
CH (CHANNEL)
/1 (PLAY) button
MENU button
Power Indicator
Red : Standby
Green : On
EJECT button
Left side
CH (CHANNEL)
/3 (STOP) button
DISC slot
Remote sensor
POWER button
FOR SERVICE PERSONNEL USE ONLY
Do NOT insert ANY USB device into
this port. Use of this port by other than
Service Personnel may void this products
warranty.
HDMI 2 IN jack
HDMI 1/DVI IN jack
PC/DVI AUDIO IN jack
AUDIO (L (MONO)/R) jacks
(for COMPONENT IN and VIDEO2 IN)
COMPONENT IN jacks
ANT. (RF) IN jack
DIGITAL AUDIO
COAXIAL OUT jack
VAR. (VARIABLE)
AUDIO (L/R) OUT jacks
PC MONITOR IN jack
Rear side
VIDEO1 IN jacks
(VIDEO/AUDIO (L (MONO)/R))
VIDEO2 IN jack
AC INPUT jack
