--- 32 ---

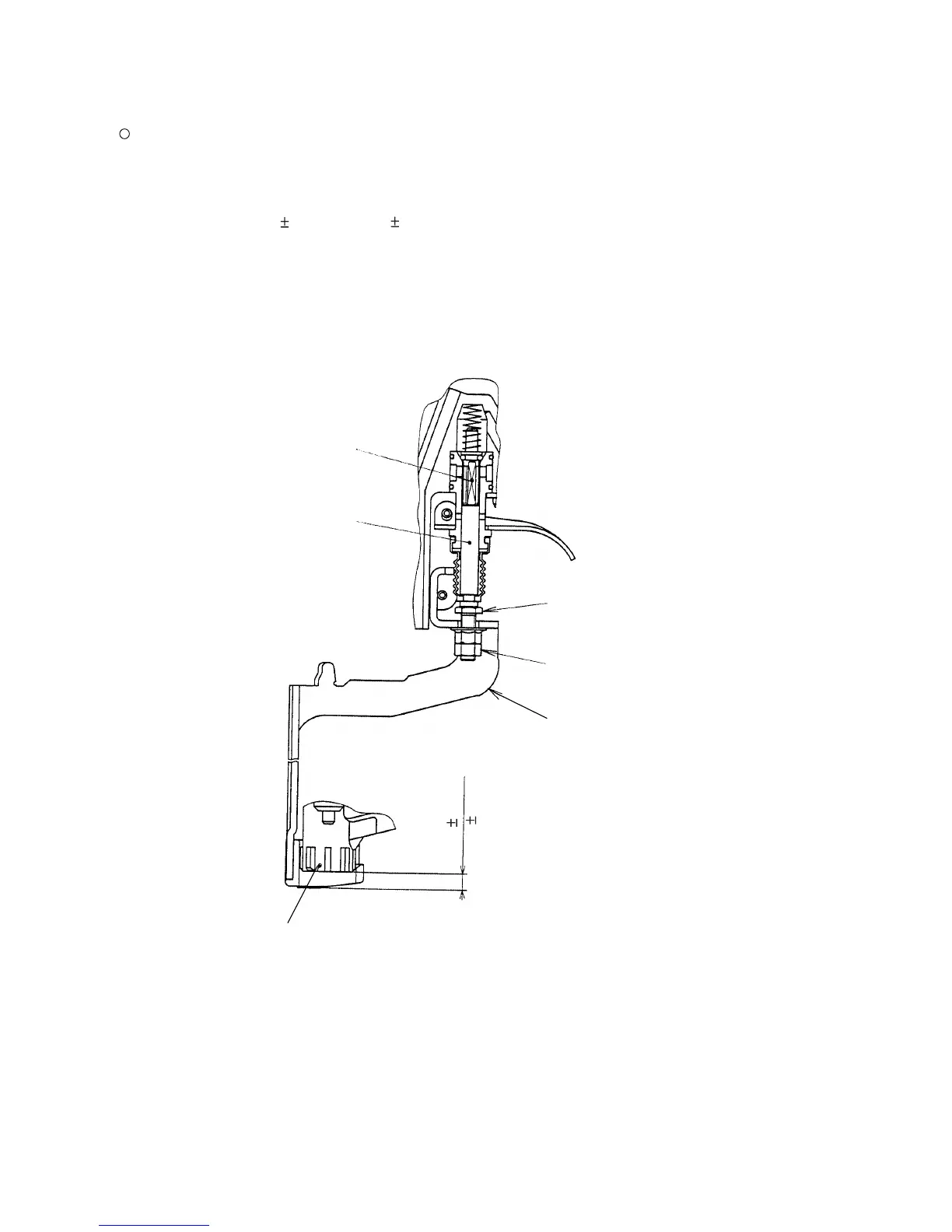

(2) Adjustment of Safety Bolt [36] (See Fig. 17.)
Tool required:
8 mm (0.315") spanner
(a) To adjust the Safety Bolt [36], loosen the Nut M5 [37] and turn the Safety Bolt [36].
(b) Perform adjustment so that the distance between the bottom end of the Nose [32] and the bottom end of the
Pushing Lever [38] is 5 0.5 mm (0.197 0.020") when the Pushing Lever [38] is pushed up so that Safety
Bolt [36] pushes up Plunger (B) [59] to a position where it, in turn, begins to push up Plunger (A) [50].
(When Plunger (B) [59] is pushed upward, you will feel the slight resistance when it reaches the position
where it begins to push up Plunger (A) [50].)
(c) On completion of adjustment, securely tighten the Nut M5 [37].
Plunger (A) [50]
Pushing Lever [38]
Nut M5 [37]
Safety Bolt [36]
Plunger (B) [59]
Fig. 17
Nose [32]
5 0.5
(0.197 0.020")
To Next Page
