6.2 REMOVING THE COVERS

If it is necessary to access to the indoor unit components, please

follow these operations.

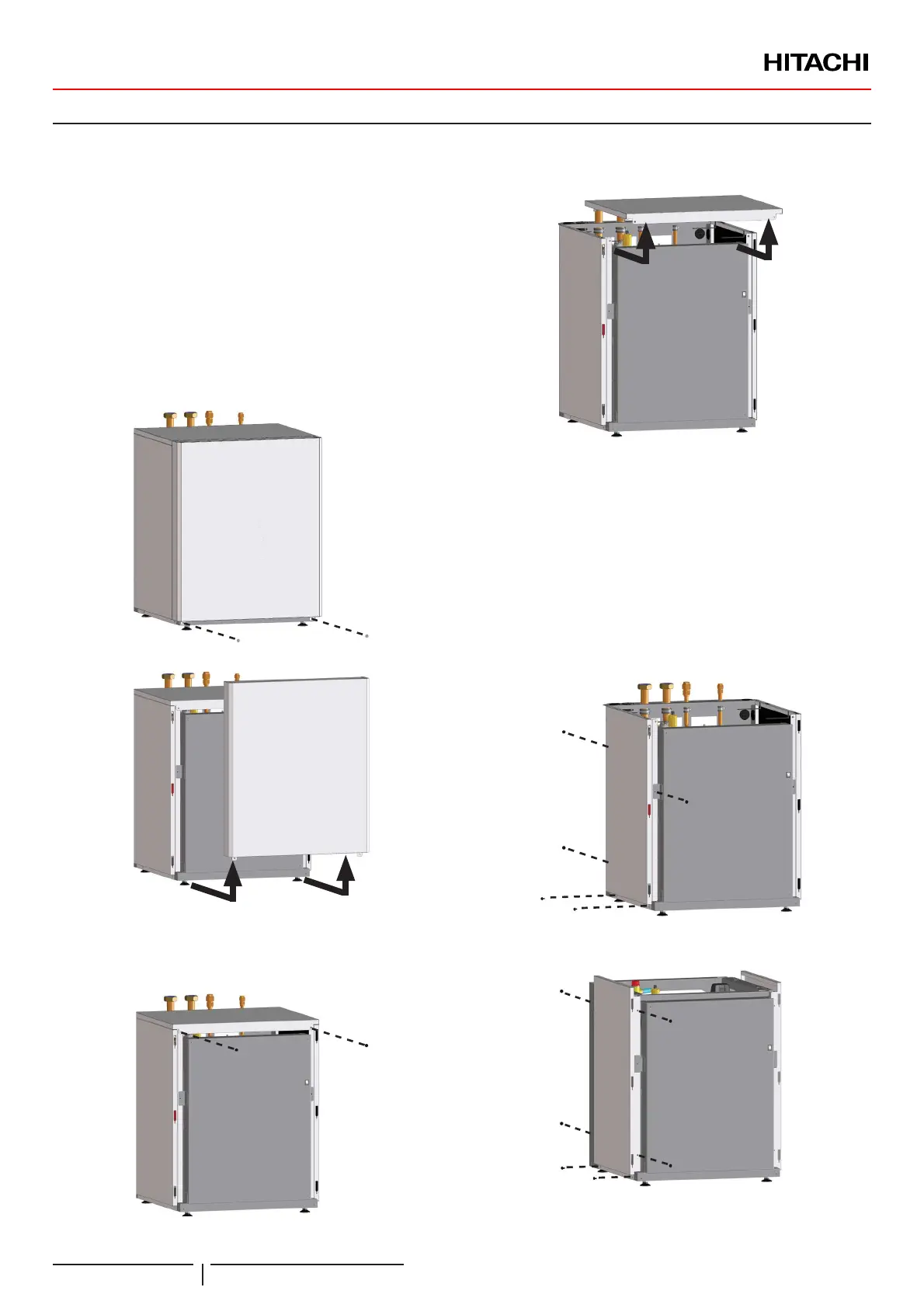

6.2.1 Removing the indoor unit covers

 N O T E

• The pictures shown correspond to the YUTAKI S80 TYPE 1, but the

procedure for removing covers is exactly the same for the TYPE 2

except in case of lateral covers.

• Front cover needs to be removed for any task inside the indoor unit.

• Back cover does not need to be removed.



Removing the indoor unit front cover

1 8QVFUHZWKH¿[LQJVFUHZVDWWKHORZHUVLGH

2 Pull the indoor unit front cover forward and then remove it.



Removing the indoor unit upper cover

1 Remove the indoor unit front cover.

2 8QVFUHZWKHXSSHU¿[LQJVFUHZV

3 Pull the indoor unit upper cover forward and then remove it.



Removing the indoor unit lateral cover

 N O T E

Pictures refer to the left side cover, but the removal procedure is exactly

the same for the right side cover.

1 Remove the indoor unit front cover.

2 Remove the indoor unit upper cover.

3 8QVFUHZWKHVFUHZVZKLFK¿[WKHFRYHUWRWKHLQGRRUXQLW

TYPE 1 (5 screws)

TYPE 2 (6 screws)

UNIT INSTALLATION

PMML0340B rev.1 - 03/201624
