English
6
SPECIFICATIONS
Model UC18YGL
Input power
Single phase: AC 120 V, 60 Hz
source
Charging
Approx. 30 minutes ... BCL1415, BCL1815
time
Approx. 65 minutes ... BCL1430, EBM1830
Charger
Charging voltage ........ DC 7.2–18 V
Charging current ........ DC 2.6 A
Weight 1.3 lbs (0.6 kg)
APPLICATIONS
For charging the HITACHI batteries types BCL14, BCL18
series and EBM1830.
CHARGING METHOD
NOTE:
Before plugging into the receptacle, make sure the
following points.
䡬
The power source voltage is stated on the
nameplate.
䡬
The cord is not damaged.
WARNING:
Do not charge at voltage higher than indicated on
the nameplate.
If charged at voltage higher than indicated on the
nameplate, the charger will burn up.
1. Insert the plug of battery charger into the
receptacle.
When the plug of battery charger has been inserted
into the receptacle, pilot lamp will blink in red. (At
1-second intervals)
WARNING:
Do not use the electrical cord if
damaged. Have it repaired
immediately.
2. Insert the battery to the battery charger.

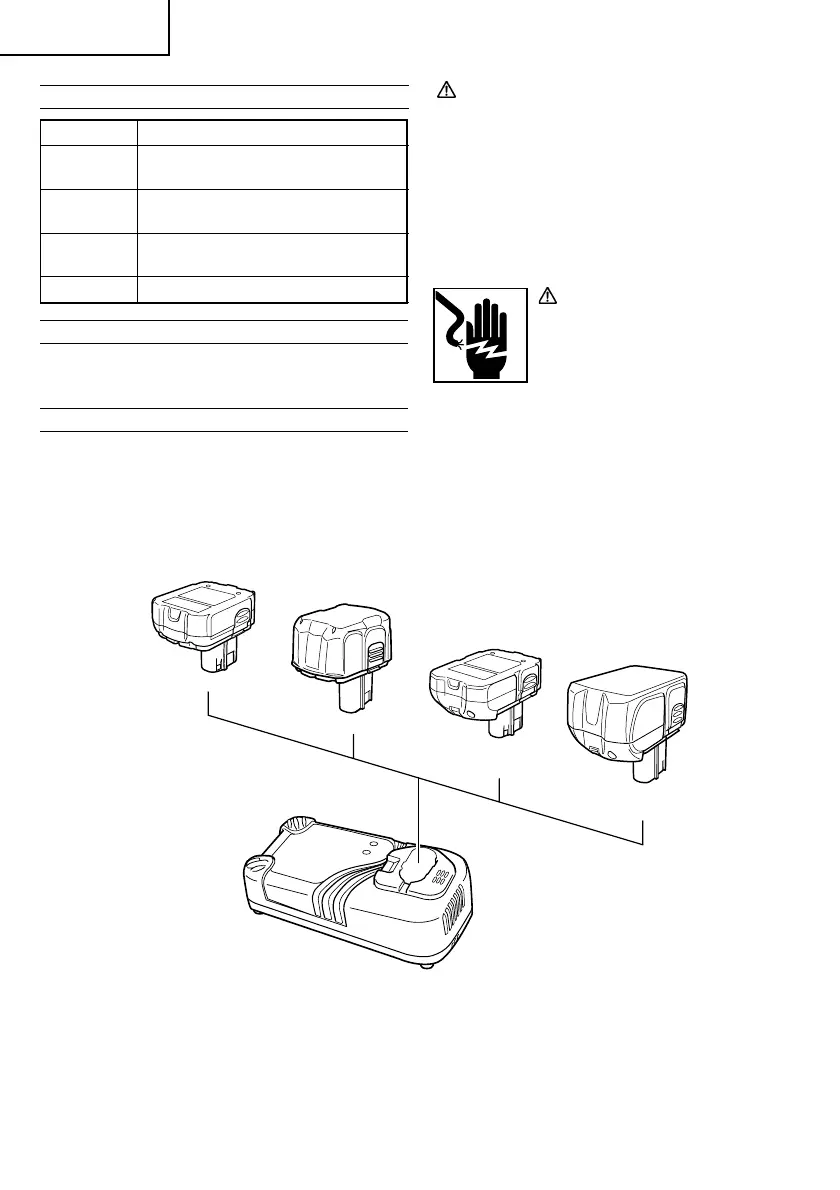

Insert the battery into the battery charger as shown
in Fig. 2. Make sure it contacts the bottom of the
battery charger.
Fig. 2
BCL1430
EBM1830
BCL1815
BCL1415
3. Charging
䡬
When the battery is connected to the battery
charger, charging will commence and the pilot
lamp will light in red. (See Table 2)
NOTE:
If the pilot lamp flickers in red, pull out the plug
from the receptacle and check if the battery is
properly mounted.
䡬
When the battery is fully charged, the pilot lamp
will bilink in red slowly. (At 1-second intervals) (See
Table 2)
To Next Page
