OPERATOR'S STATION
1-79
ADJUSTING CONSOLE HEIGHT
Adjust the console height to the operator’s comfort and/or
work conditions. Adjusting console height can be achieved us-
ing three positions provided vertically at 20 mm (0.8 in) inter-
vals.
CAUTION: Before loosening the console, support the
console. Otherwise, the console may suddenly drop,
possibly causing personal injury.
Adjusting Procedures
1. Lower the bucket to the ground. Stop the engine.
2. Move the pilot control shut-off lever to the LOCK posi
-
tion.

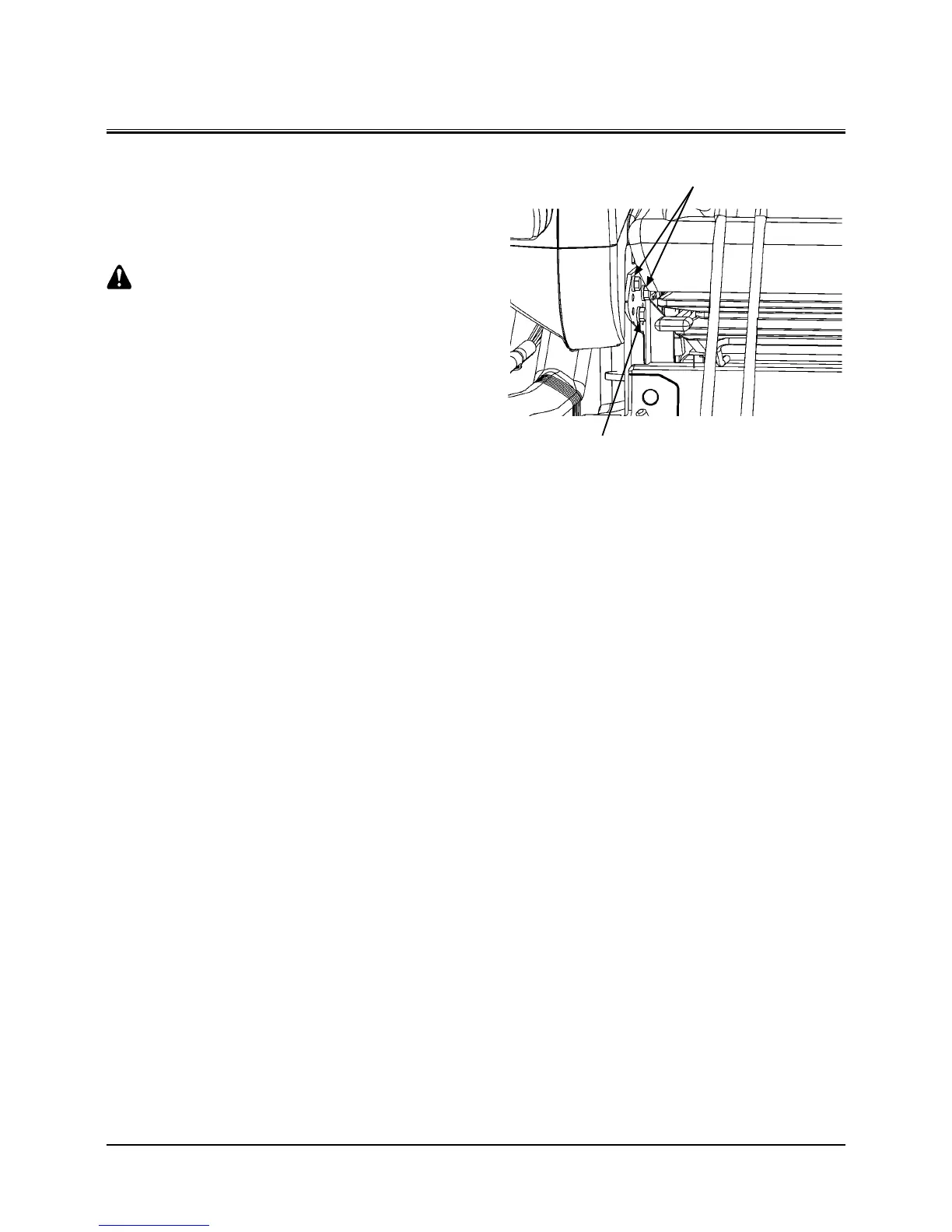

3. Remove left and right console holding bolts (1). Loosen
bolts (2) to adjust the console height.
4. After adjusting, tighten bolts (1) and (2).
Tightening Torque: 50 N·m (5 kgf·m)
M1U1-01-030
1
2
To Next Page
