Hitachi ZW370 User Manual

ZW370 FS 00-5
00 General Information

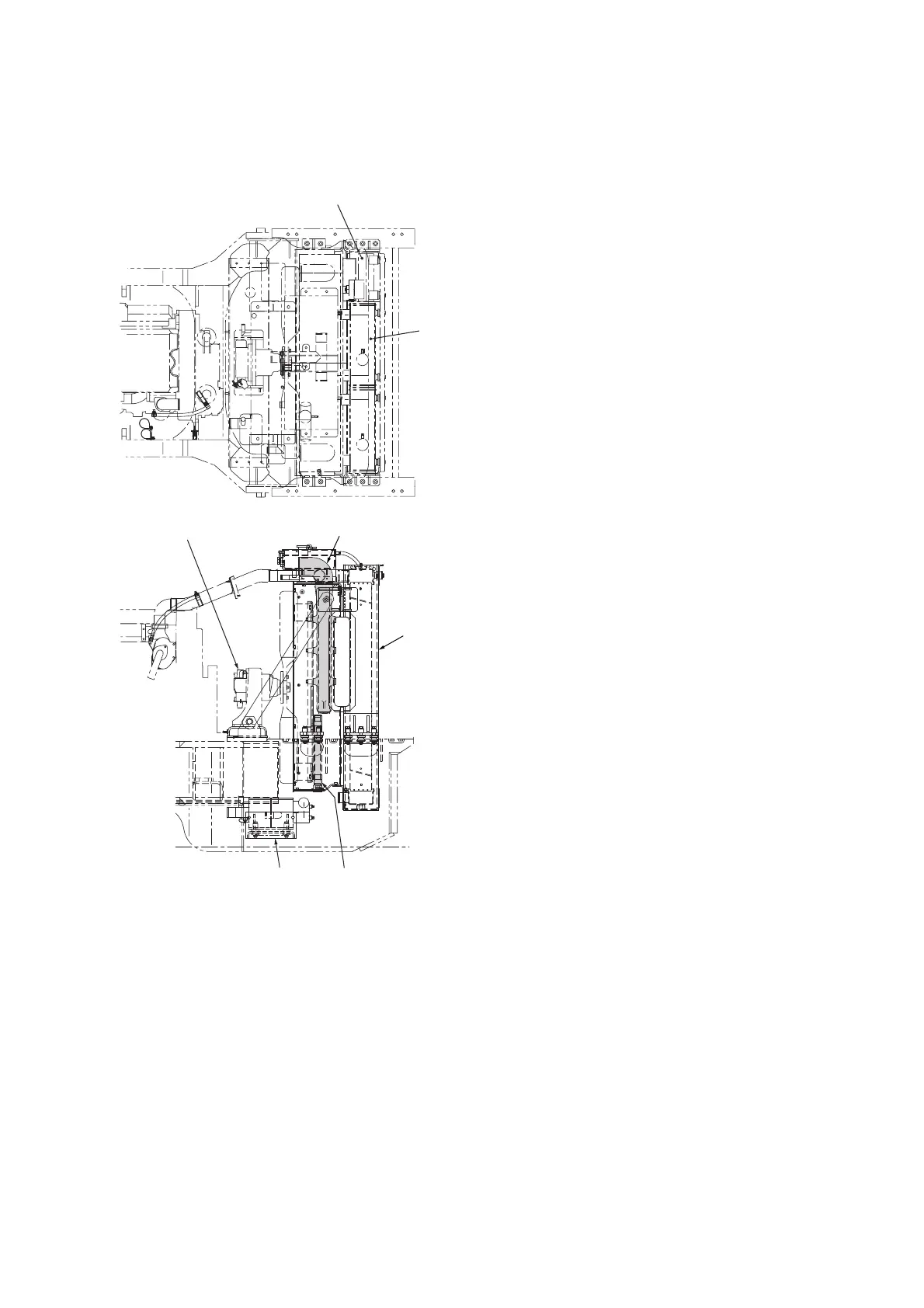

Outline
1. Engine assembly (Cummins QSX-15)
2. Transmission/Torque converter assy
3. Hydraulic pump
4. Multiple (loader) control valve
5. Steering valve
6. Pilot valve (for loading)
7. Transmission control valve
8. Air cleaner
9. ELS valve
10. Muffler
11. Radiator
12. Front axle assembly
13. Rear axle assembly
14. 2nd propeller shaft
15. 3rd propeller shaft
16. Hydraulic oil cooler (air-to-oil type)
17. T/C oil cooler
18. Air charge cooler
19. Fuel cooler
20. Parking brake
21. Combination valve
22. Fan motor
K95V2U00001
11
11
18
22
17 19
16
(S/N 9151~)
