Hitachi ZW370 - Rear Chassis

ZW370 FS 12-5
12 Function & Structure Chassis Group
Rear Chassis
Rear Chassis

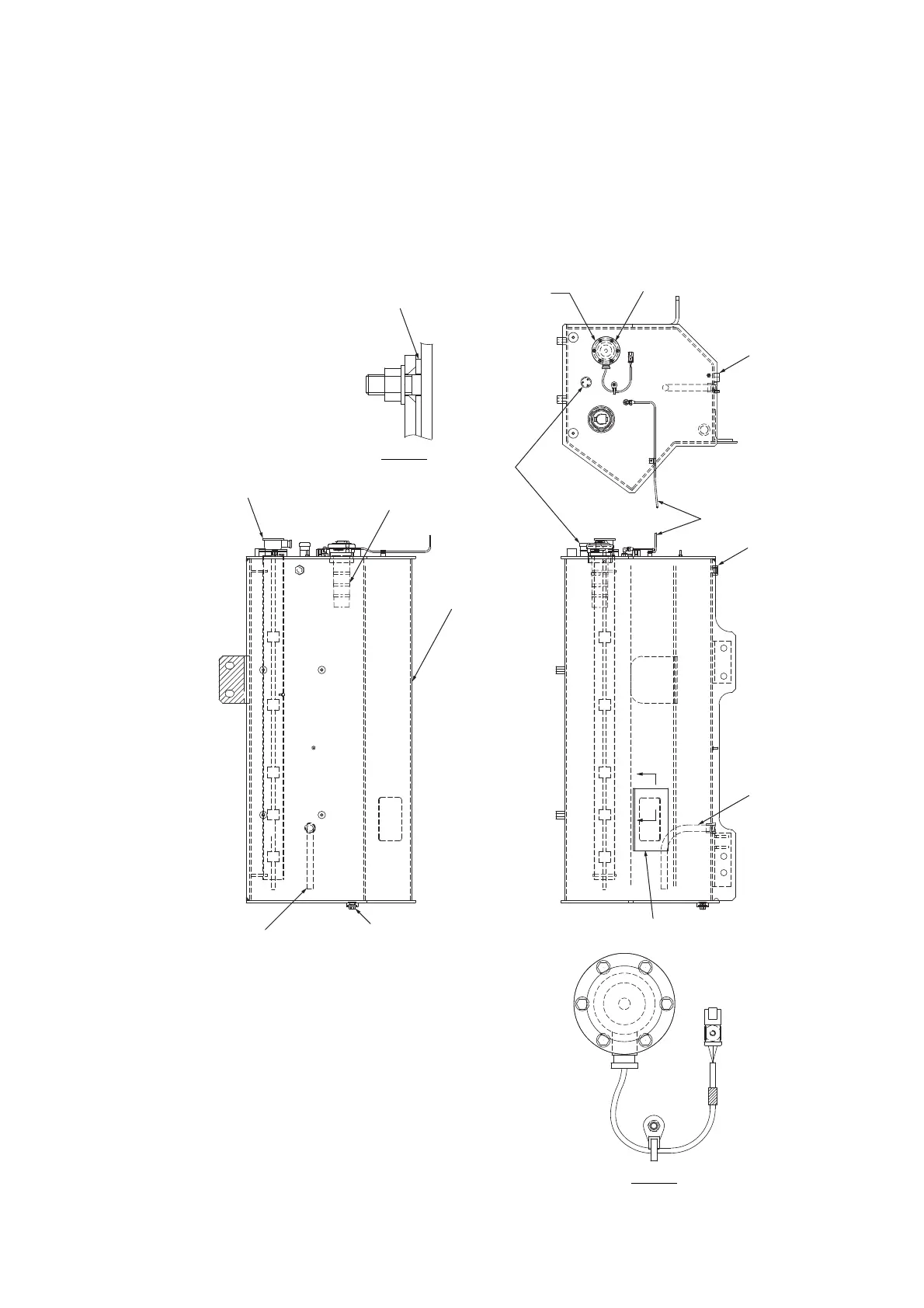

Fuel tank
95V2E12002
A
A
7
11
8
2
4
1
6
5
8
B
2
10
10
9
1. Fuel tank
2. Fuel level sensor
3. Fuel tank filler assembly
4. Filter
5. Drain plug
6. Inspection hole cover
7. Gasket (Rubber seal type)
8. Suction pipe
9. Pipe (for vacuum prevention) (S/N ~9150)
10. Breather valve (S/N 9151~)
11. Fuel return pipe
A-Detail
B-Detail
(S/N ~9150)
(S/N 9151~)
