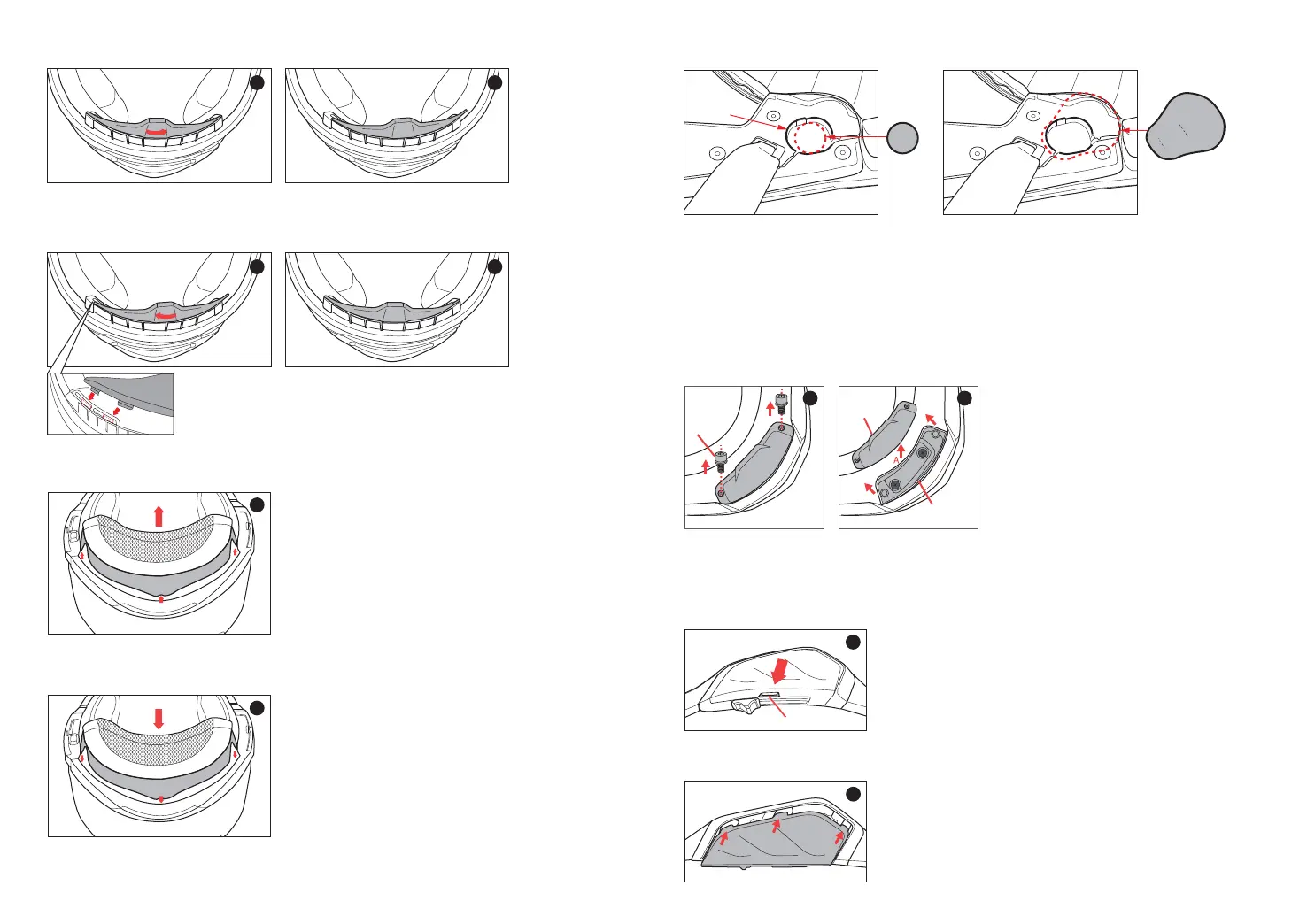

Breath Deflector Removal

1. To remove the breath deflector, pull in the direction of the arrow.

Breath Deflector Installation

1. To attach the Breath Deflector, insert into the slot and push it in the direction of the arrow.

Chin Curtain Removal

Chin Curtain Installation

1. Center the front plastic sleeve of the chin curtain

with the shell. Force the chin curtain’s plastic sleeve

in between the shell and EPS.

1. Grasp the chin curtain fabric (one side at a time)

at the bottom corners and gently pull the sleeve down

and away from the shell.

1a 1b

HJC Intercom Placement Guide

Mounting the Intercom

Unscrew and remove the base cover at the back of the helmet to begin mounting process of the intercom.

Please refer to the manual of the current intercom you are using for directions on mounting and

unmounting the intercom unit.

Base Cover Detachment

1. Remove the screws from the base cover. (picture1)

2. While lifting the base cover(direction A) detach it by pushing toward direction B. (Picture 2)

Bluetooth UI Cover Detachment

1. Push the Bluetooth UI cover in the direction of the arrow

while pressing down on A.

Mounting the Bluetooth UI Cover

1. After aligning the hook of the Bluetooth UI cover

with the groove of the body, and push and attach.

Mounting the Base Cover

Push the base cover underneath the gasket at the bottom of the helmet until the base cover

and the bracket screw holes match. Using the screw, fixate the base cover onto the helmet.

Base cover

Screw

How to install speaker pocket cover

If you install communication system speakers, please do not use the speaker pocket cover.

Bracket

Speaker

Speaker Pocket

Speaker Pocket Cover
