If the vehicle is equipped with the accessory fog lights, go
to step 56; otherwise, continue with step 55.
55. Plug the engine starter harness 4-pin connector into
the fuse bo
x. Go to step 58.

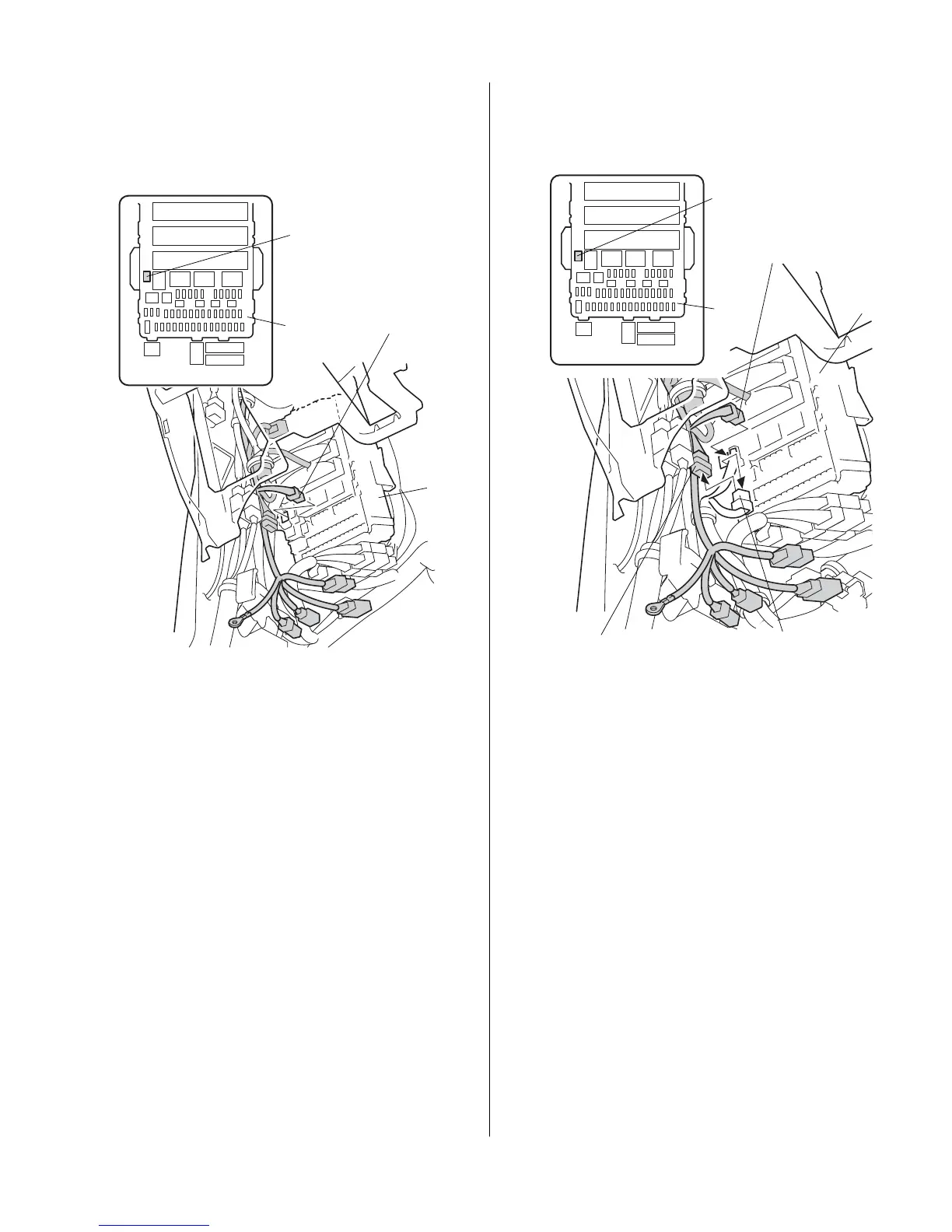

QD90215AG
FRONT VIEW
FUSE
BOX
FUSE
BOX
Plug in
here.
ENGINE STARTER
HARNESS 4-PIN
CONNECTOR
56. Unplug the fog light 4-pin connector from the fuse
box, and plug it into the engine star ter harness 4-pin
connector.
QD90216AG
FRONT VIEW
FUSE
BOX
FUSE
BOX
Plug in
here.
ENGINE STARTER
HARNESS 4-PIN
CONNECTOR
FOG LIGHTS
4-PIN
CONNECTOR
ENGINE STARTER
HARNESS 4-PIN
CONNECTOR
57. Plug the remaining engine starter harness 4-pin
connector into the fuse box.
