© 2013 American Honda Motor Co., Inc. – All Rights Reserved. AII 49542 (1306) 3 of 3

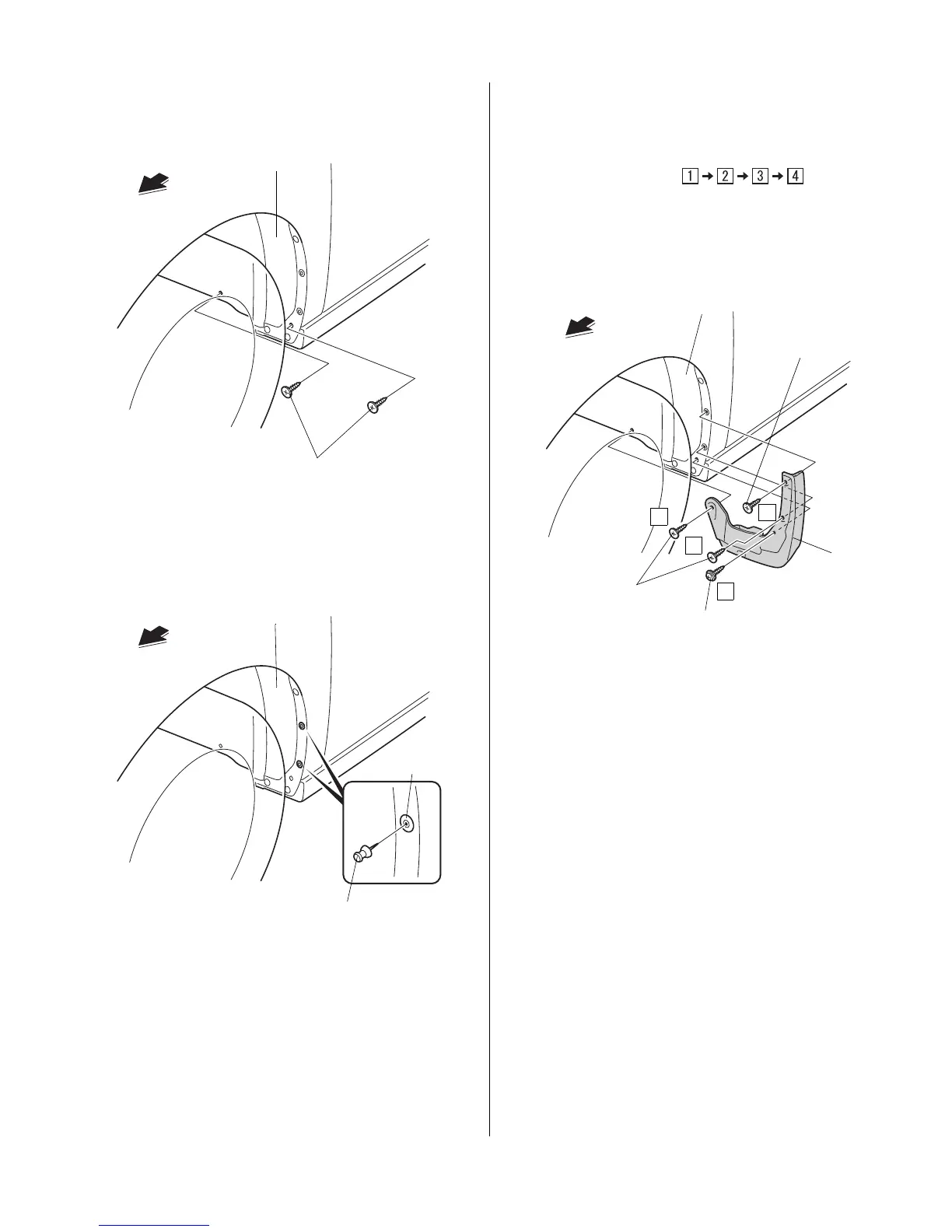

Installing the Front Splash Guards
5. Turn the steering wheel fully counterc
lockwise.
LEFT FRONT
INNER FENDER
2 SCREWS
FRONT
6. Remove two screws from the left front inner fender.
7. Using a pushpin, pierce the center of two clips on the
left front
inner fender.
LEFT FRONT
INNER FENDER
2 CLIPS
FRONT
PUSHPIN
8. Secure the left front splash guard to the left front
inner fender with one 5 x 25 mm self-tapping screw
and three screws removed step in
1 and step in 6.
While holding the splash guard firmly against the
fende
rwell, tighten the self-tapping screw and
screws in the order
.
NOTE: Check for a gap between the splash guard
and th
e body. If a gap exists, loosen the screws and
repeat the above procedure.
QC11405AY
LEFT FRONT
INNER FENDER
LEFT
FRONT
SPLASH
GUARD
FRONT
2 SCREWS
1
2
3
4
SCREW
(Reuse from
the rear
fender.)
5 x 25 mm
SELF-TAPPING
SCREW
9. Turn the steering wheel fully clockwise, and repeat
steps 6 through 8 to install the right front splash
guard.
