Remove the electrical connector
from the bulb by pulling the
connector straight back.
Remove the rubber weather seal
by pulling on the tab.
Make sure that the hold-down
wire is installed properly and
securely. You can check its
installation from the inspection
window on the headlight assembly.
Install the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Push the electrical connector onto
the new bulb. Make sure it is
connected securely. Turn on the
headlights to test the new bulb.
Reinstall the inner fender cover.
Then reinstall the holding clip, and
lock it in place by pushing on its
center.
Unclip the end of the hold-down
wire from its slot. Pivot the wire
out of the way, then remove the
bulb.
5.
6.
3.
4.
7.
8.
9.
10.
Lights
Maintenance
187

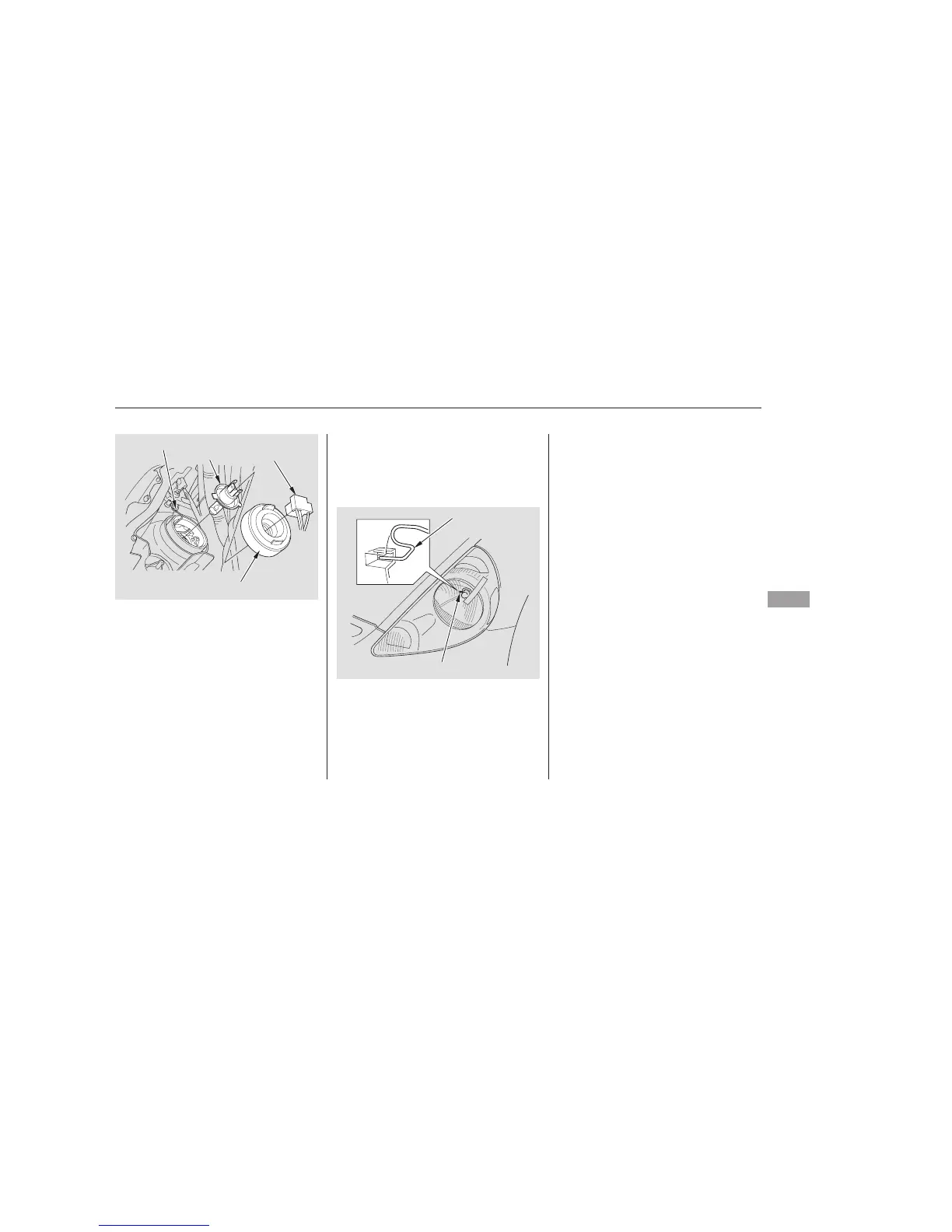

RUBBER WEATHER SEAL
HOLD-DOWN
WIRE BULB
ELECTRICAL
CONNECTOR
HOLD-DOWN
WIRE
INSPECTION WINDOW
