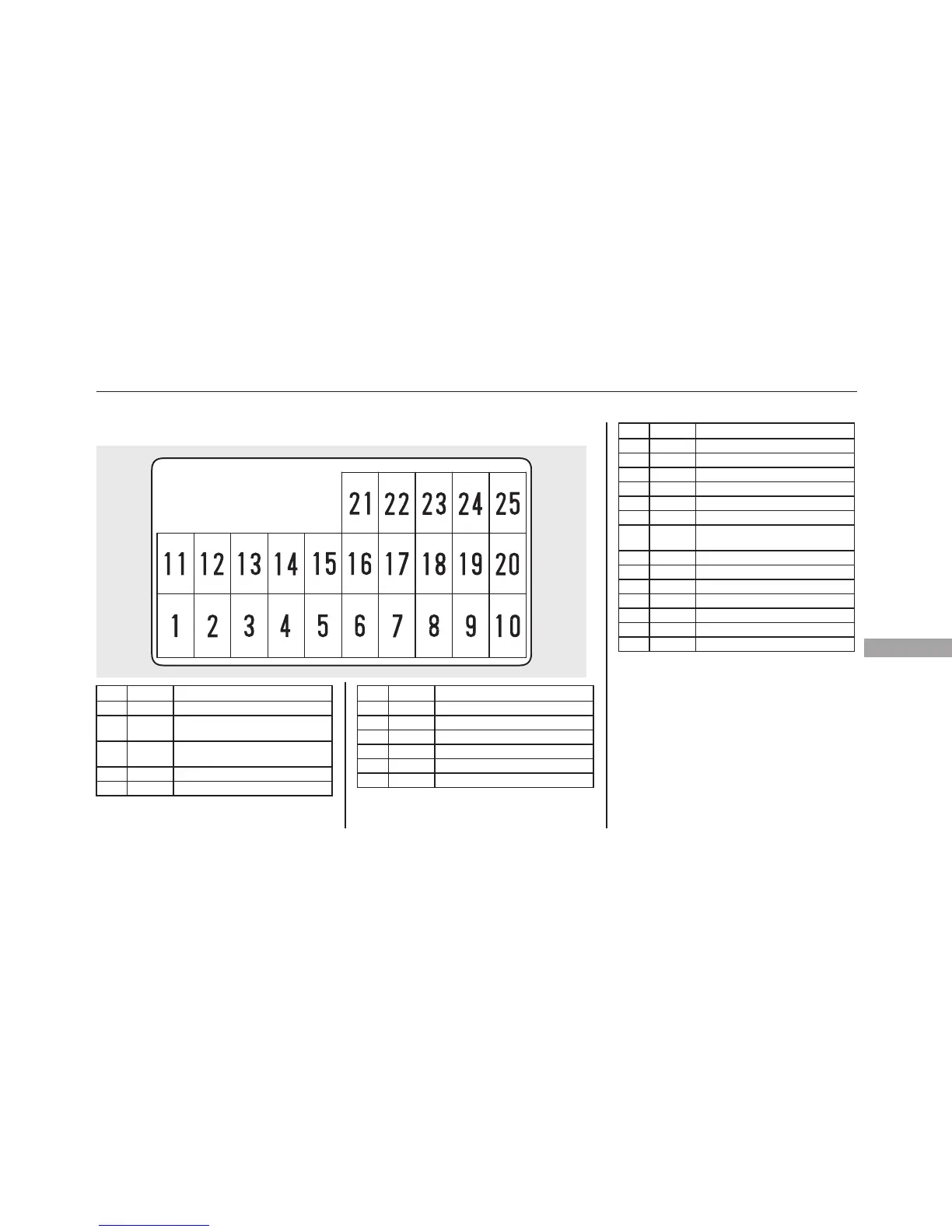

INTERIOR FUSE BOX
No.
Amps. Circuits Protected
1 － Not Used
2 10 A Rear Accessory Power
Socket
3 10 A Daytime Running Lights/
TPMS
4 10 A ACG
5 － Not Used
No. Amps.
Circuits Protected
6 7.5 A Power Window Relay
7 20 A AMP
ꭧ
8 7.5 A Accessory, Radio
9 10 A Rear Wiper
10 7.5 A Meter
11 － Not Used
No. Amps.
Circuits Protected
12 7.5 A Daytime Running Lights
13 10 A SRS
14 10 A Remote Control Mirrors
15 20 A LAF Heater
16 15 A Ignition Relay
17 15 A Fuel Pump
18 15 A Front Accessory Power
Socket
19 7.5 A Turn Signal Lights
20 20 A Front Wiper
21 － Not Used
22 20 A Passenger's Power Window
23 20 A Driver's Power Window
24 － Not Used
25 － Not Used
ꭧ: If equipped
