90 | | 91
HANDLING THE UNEXPECTEDHANDLING THE UNEXPECTED

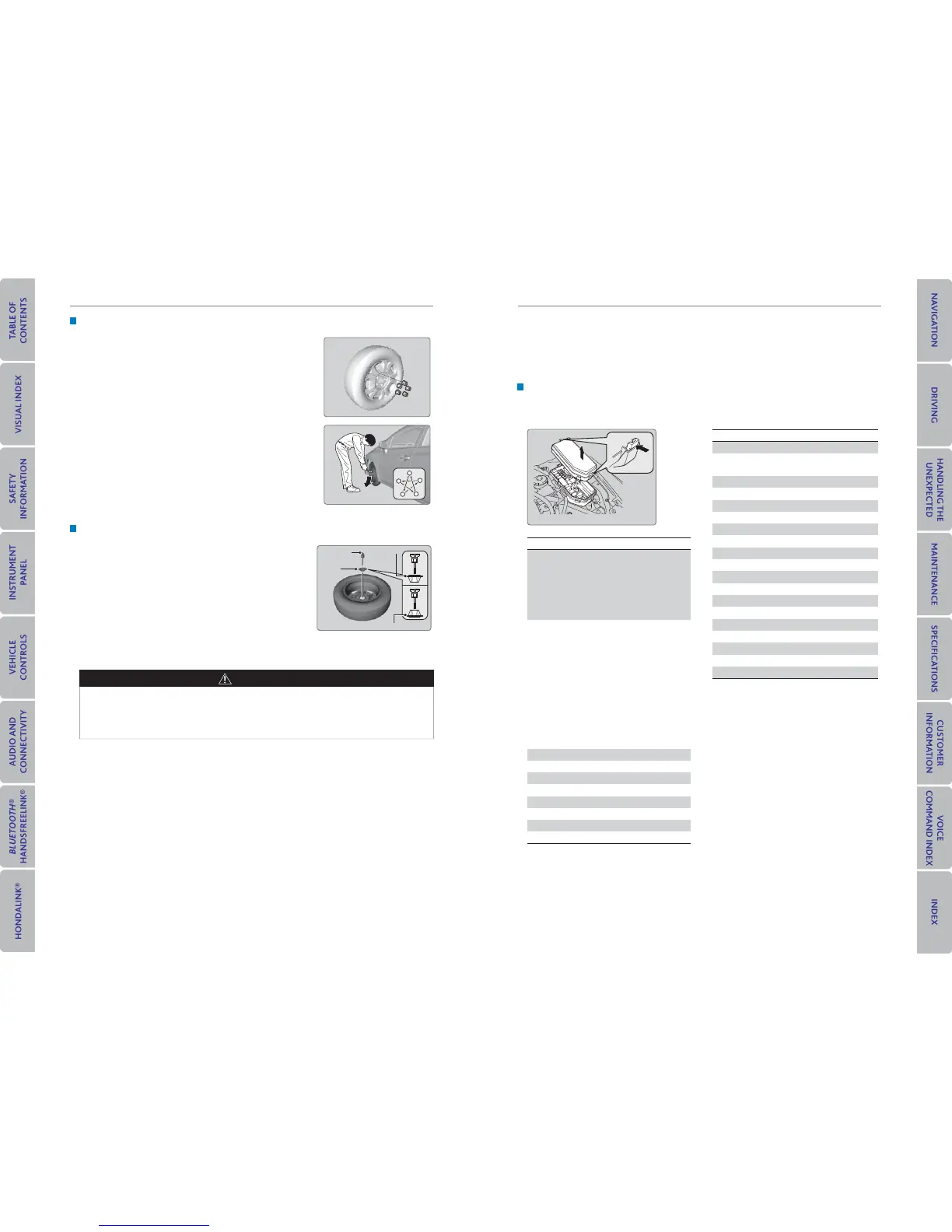

Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the
fuse in question by the fuse number and box cover number.
Engine Compartment Fuse Box
Located under the hood near the brake fl uid reservoir. Push the tabs to open the
box.
11 Oil Level 7.5 A
12
LED Daytime Running
Lights
10 A
13 IMA 1 7.5 A
14 Hazard 10 A
15 FI Sub 15 A
16 IG Coil 20 A
17 Stop 15 A
18 Horn 10 A
19 IMA 2 10 A
20 Right Headlight Low Beam 15 A
21 IGP 15 A
22 DBW 15 A
23 Left Headlight Low Beam 15 A
24 Booster SOL 15 A
25 MG Clutch 7.5 A
26 Washer 15 A
27 SMALL 20 A
28 Interior Lights 7.5 A
29 Backup 10 A
Circuit Protected Amps
Circuit Protected Amps
1
EPS 70 A
Booster Motor 40 A
ABS/VSA Motor 30 A
ABS/VSA FSR 30 A
Wiper Motor 30 A
Main Fuse 100 A
2
IG Main 30 A
Fuse Box Main 60 A
Fuse Box Main 2 60 A
Headlight Main 30 A
ST MG 30 A
Rear Defogger 30 A
−−
Blower 40 A
−−
Sub Fan Motor 20 A
Main Fan Motor 20 A
3 − −
4 IG Coil 2 15 A
5 Starter DIAG, ST MG 7.5 A
6 IG Coil 1 15 A
7 − −
8− −
9 − −
10 − −
Replacing the Flat Tire
1. Remove the wheel nuts and fl at tire.
2.
Mount the compact spare tire. Replace the
wheel nuts, and lightly tighten them.
3. Lower the vehicle and remove the jack. Tighten
the wheel nuts in the order indicated in the
image. Go around, tightening the nuts, two to
three times in this order. Do not overtighten the
wheel nuts.
If you drive with the spare tire installed, the
low tire pressure/TPMS indicator appears. The
indicator stays on until a regular tire is installed.
Storing the Flat Tire
1. Remove the center cap.
2.
Open the trunk. Place the fl at tire face down in
the spare tire well.
3. Remove the spacer cone from the wing bolt, fl ip
it over, and insert it back on the bolt. Secure the
fl at tire with the wing bolt.
4. Securely put the jack and wheel nut wrench back
in the tool case. Store the case in the trunk.
Loose items can fl y around the interior in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely before driving.
WARNING
For normal
tire
For compact spare tire
Wing bolt
Spacer
cone
