Honda 2015 Ruckus NPS50 User Manual

•
104

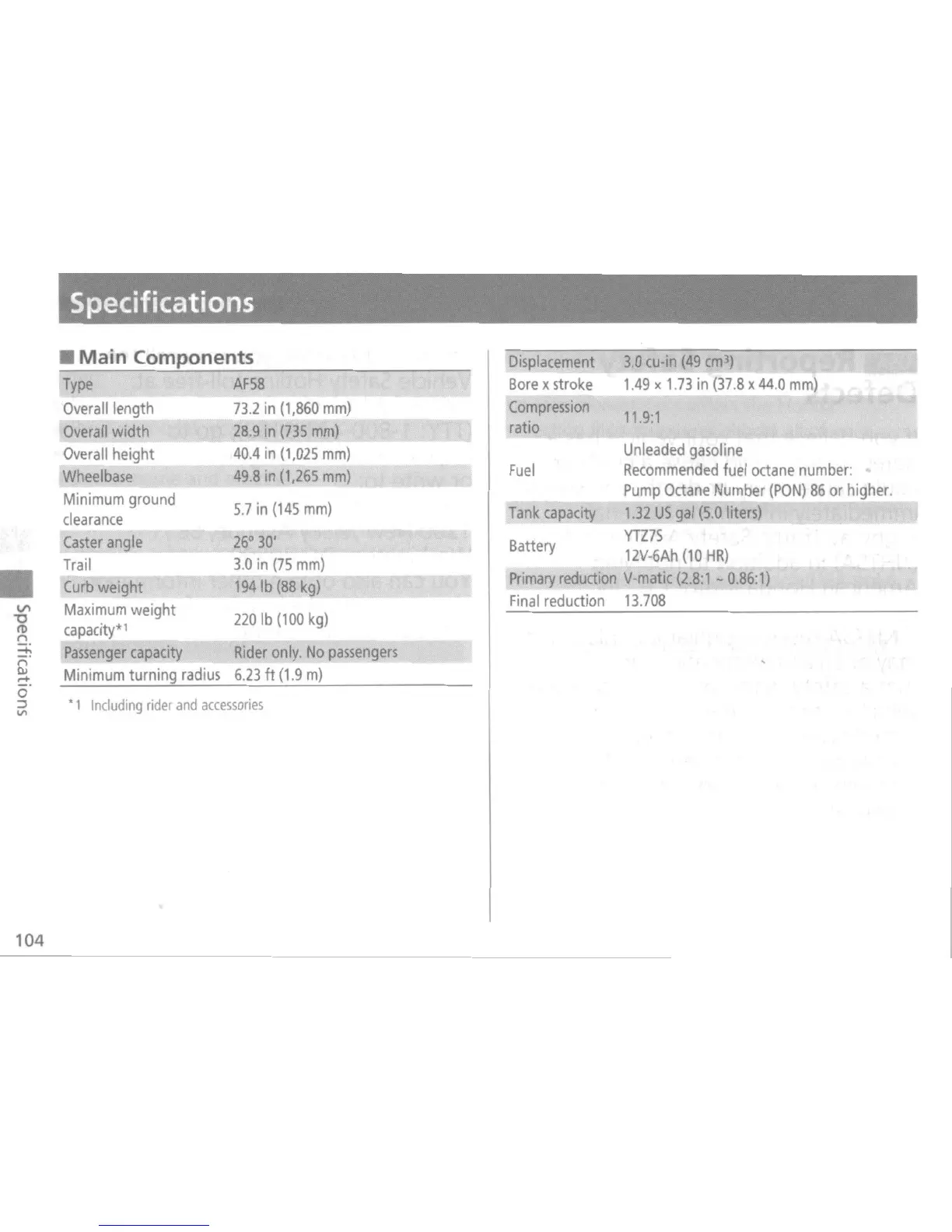

Specifications
• Main Components
Type AF58
Overall length
Overall width
Overall height
Wheelbase
Minimum ground
clearance
Caster angle
Trail
Curb weight
Ma xi mum weight
capacity *'
Passenger capacity
Mi nimum turning rad i us
73 .2 in (1 , 860 mm)
28.9 in (735 mm)
40.4 in (1 , 025 mm)
49.8 in (1,265 mm)
5.7 in (145 mm)
26° 30'
3.0 in (75 mm)
194 lb (88 kg)
220 lb (100 kg)
Rider only. No passengers
6. 23 ft (1 .9 m)
•1 Including rider and accessories
Displacement 3.0 cu·in (49 cml)
Bore x stroke 1.49 x 1. 73 in (37 .8 x 44 .0 mm)
Compression
ratio
Fuel
11.9:1
Unleaded gasoline
Recommended fuel octane number :
Pump Octane Number (PON) 86 or hi gher.
Tank capacity 1.32 US gal (5.0 liters)
YTZ7S
12V · 6Ah (10 HR)
Primary reduction V-matic (2.8:1 - 0.86:1)
Final reduction 13 . 708 ~__.~,.--"-_,..,._J
Battery

Honda 2015 Ruckus NPS50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Compression Ratio	12.0:1
Fuel System	PGM-FI with automatic enrichment
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Front Suspension	Twin-downtube fork; 1.9 inches travel
Rear Suspension	Single shock; 2.6 inches travel
Front Brake	Drum
Rear Brake	Drum
Front Tire	120/90-10
Rear Tire	130/90-10
Wheelbase	49.8 inches
Seat Height	28.9 inches
Fuel Capacity	1.3 gallons
Curb Weight	194 pounds
MPG	114 MPG
