80

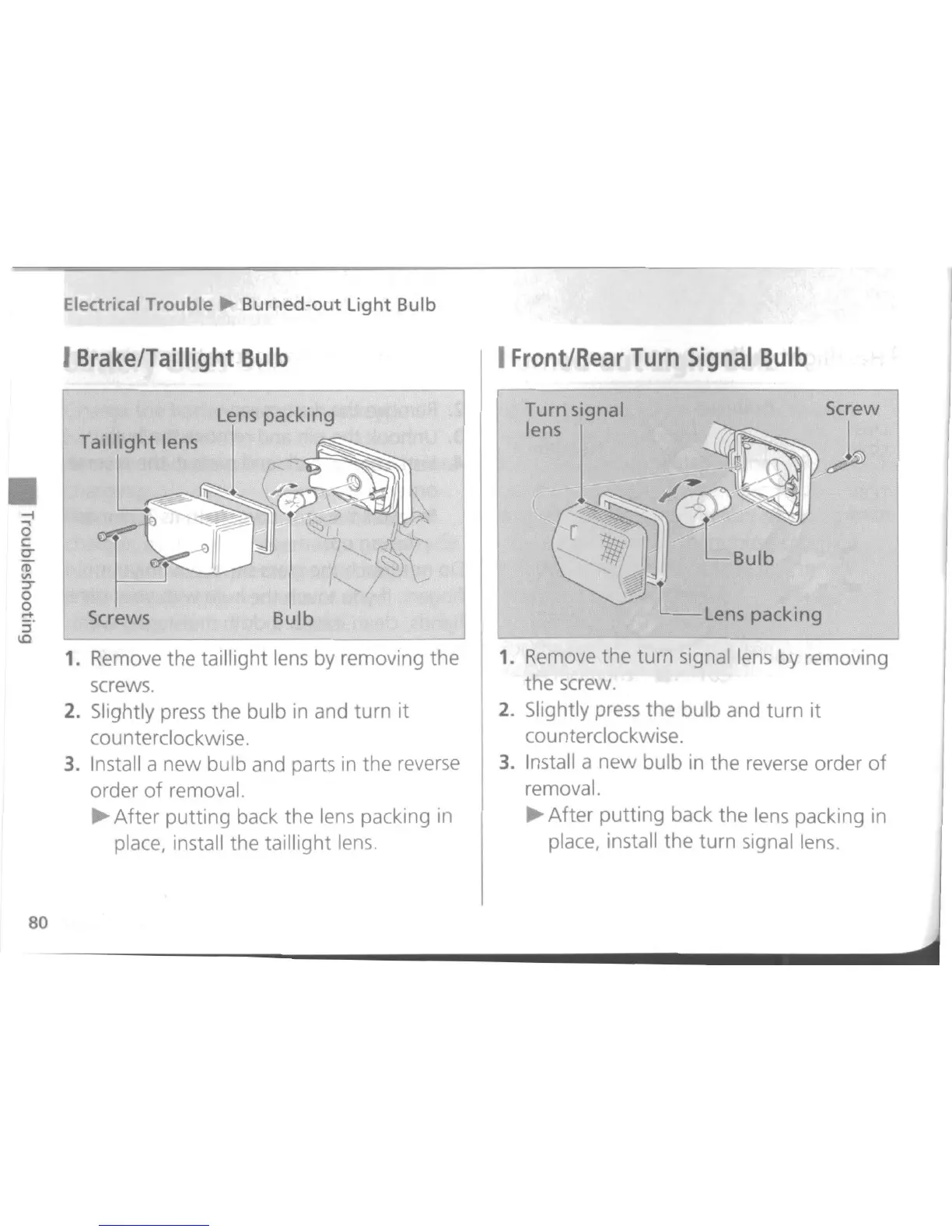

Electrical Trouble ~ Burned-out Light Bulb
I Brake/Taillight Bulb
Lens packing
Ta;ll[e"' J A
~j.r)~{
Screws Bulb
1. Remove the taillight lens by removing the
screws.
2. Slightly press the bulb in and turn it
counterclockwise.
3. Install a new bulb and parts in the reverse
order
of removal.
.... After putting back the lens packing in
place, install the taillight lens.
I Front/Rear Turn Signal Bulb
Screw
~
1. Remove the turn signal lens by removing
the screw.
2. Slightly press the bulb and turn it
counterclockwise.
3. Install a new bulb in the reverse order of
removal.
.... After putting back the lens packing in
place, install the turn signal
lens.

Honda 2015 Ruckus NPS50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Compression Ratio	12.0:1
Fuel System	PGM-FI with automatic enrichment
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Front Suspension	Twin-downtube fork; 1.9 inches travel
Rear Suspension	Single shock; 2.6 inches travel
Front Brake	Drum
Rear Brake	Drum
Front Tire	120/90-10
Rear Tire	130/90-10
Wheelbase	49.8 inches
Seat Height	28.9 inches
Fuel Capacity	1.3 gallons
Curb Weight	194 pounds
MPG	114 MPG
