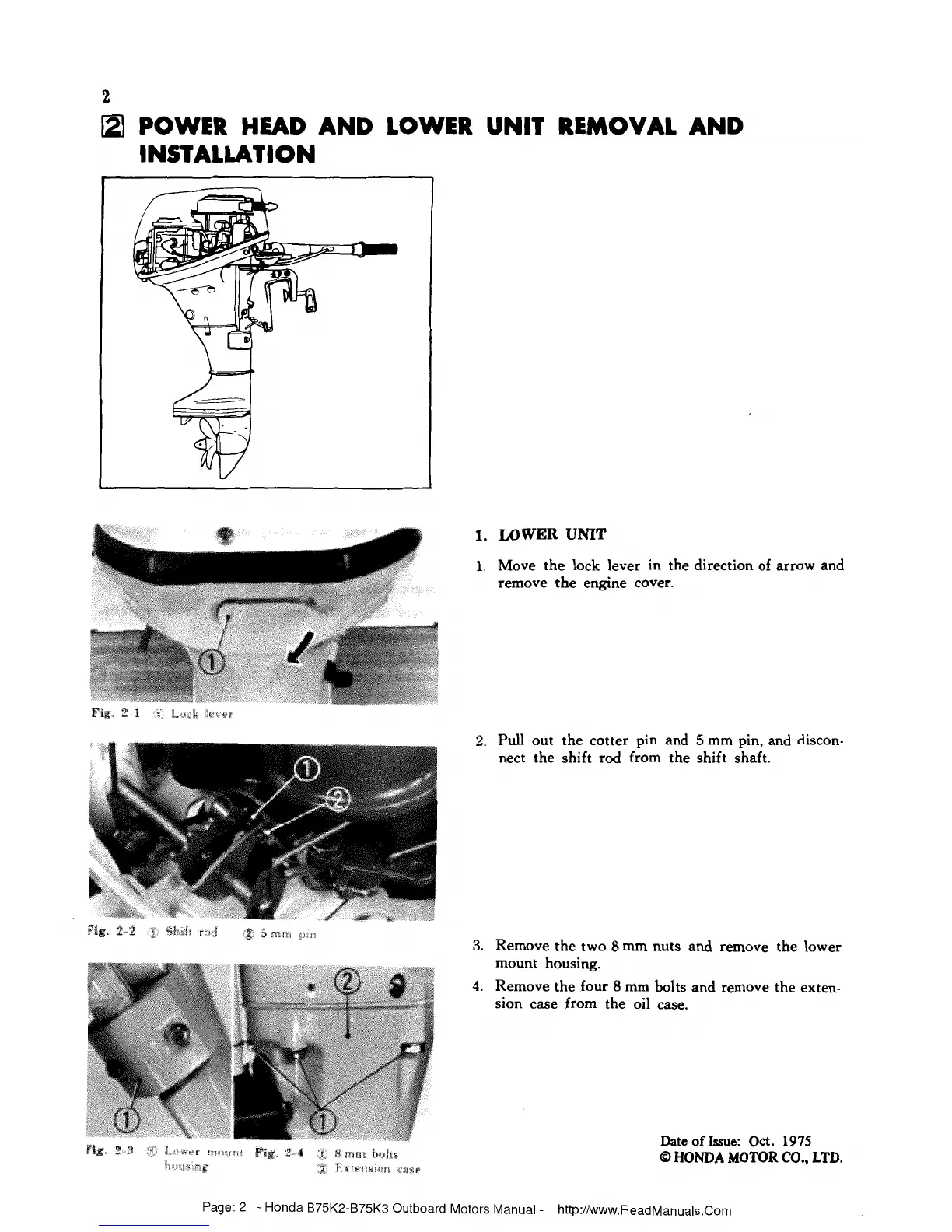

121
POWER
HEAD
AND LOWER UNIT REMOVAL AND
INSTALLATION
1.
LOWER
UNIT
1.
Move the lock lever in the direction of arrow and
remove the engine cover.
2.
Pull out the cotter pin and
5
mm pin, and discon-
nect the shift rod from the shift shaft.
3.
Remove the two
8
mm nuts and remove the lower
mount housing.
4.
Remove the four
8
mm bolts and remove the exten-
sion case from the oil case.
Date of
Issue:
Oct.
1975
@
HONDA
MOTOR
CO..
LTD.
Page: 2
-
Honda B75K2-B75K3 Outboard Motors Manual
-
