Honda CRF250X 2006 User Manual

Carburetor Adjustments & Tuning Tips
Adjustments for Competition 127

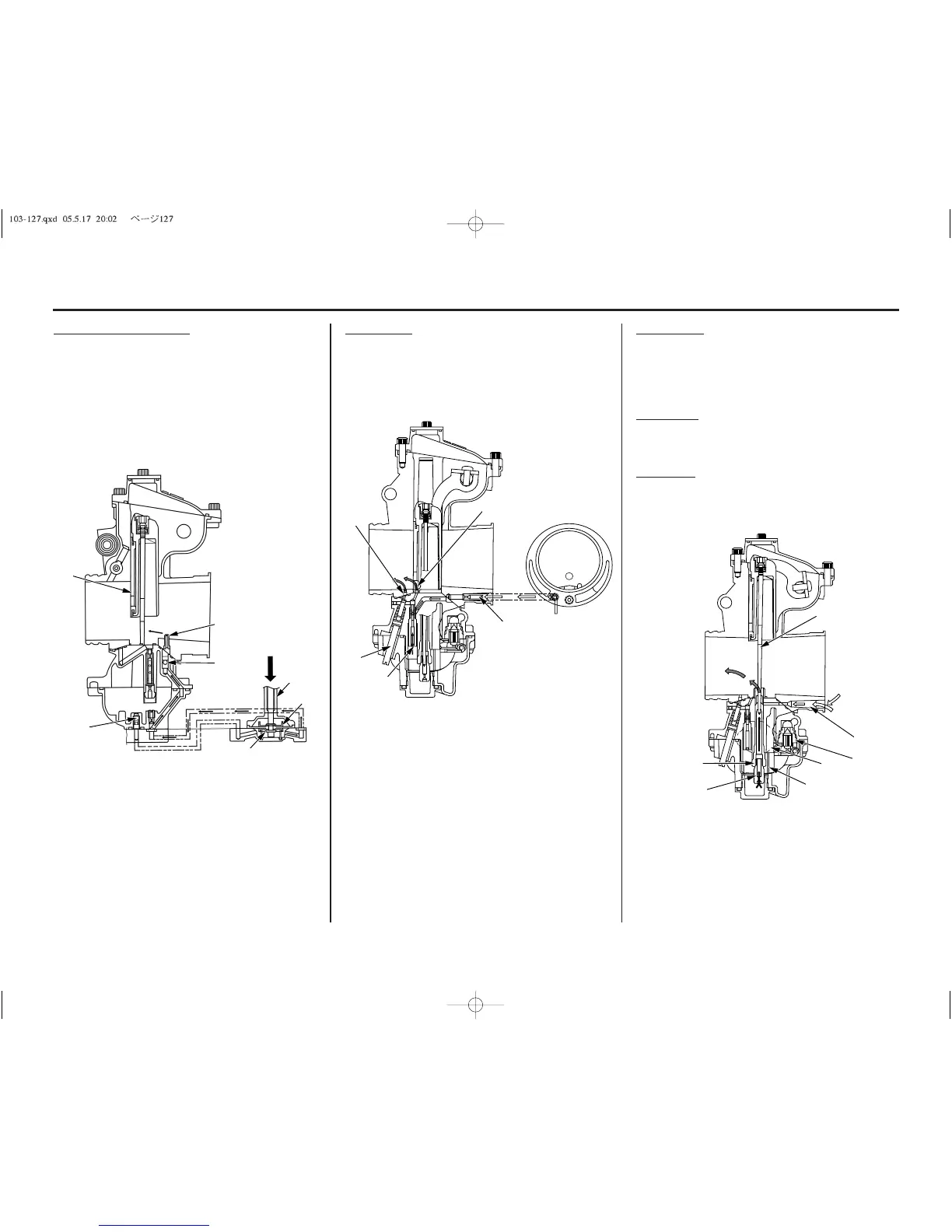

Accelerator Pump Circuit
The accelerator pump circuit operates when the
throttle is opened. As the throttle valve (1) opens,
the pump rod (2) depress the diaphragm (3). At
this time, the inlet check valve (4) is shut
resulting in a sharp increase in pressure in the
pump chamber (5). The outlet check valve (6)
then opens, supplying fuel to the main bore via
the accelerator nozzle (7).
(1) throttle valve (5) pump chamber
(2) pump rod (6) outlet check valve
(3) diaphragm (7) accelerator nozzle
(4) inlet check valve
Slow Circuit
Fuel is metered by the slow jet (1) and mixed
with air from the air passage (2). The mixture
enters the venturi through the bypass (3) and
pilot outlet (4) that has been metered by the pilot
screw (5).
(1) slow jet (4) pilot outlet
(2) air passage (5) pilot screw
(3) bypass
Main Circuit
Fuel is metered by the main jet (1), jet needle (2)
and needle jet (3). It is then mixed with air
coming from the air jet (4) and enters the venturi
past the needle jet.
Baf
fle Plate
The baffle plate (5) prevents foaming of fuel or
abnormal fuel level around the main jet.
Float Bowl
The float (6) and float valve (7) operate to
maintain a constant level of fuel in the float
bowl.
(1) main jet (5) baffle plate
(2) jet needle (6) float
(3) needle jet (7) float valve
(4) air jet
(3)
2
(1)
(7)
(6)
(2)
(5)
(4)
(3)
(2)
(1)
(5)
(4)
(2)
(4)
(7)
(6)
(5)
(1)
(3)

Honda CRF250X 2006 Specifications

General

Engine Type	Liquid-cooled single-cylinder four-stroke
Displacement	249 cc
Valve Train	Unicam, four-valve
Induction	Keihin 37 mm flat-slide carburetor
Transmission	5-speed
Front Brake	Single 240 mm disc with twin-piston caliper
Rear Brake	Single 240 mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Wheelbase	58.3 inches
Ground Clearance	13.6 inches
Bore x Stroke	78.0mm x 52.2mm
Final Drive	Chain
Front Suspension	47 mm inverted Showa cartridge fork with 16-position rebound damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
