Honda CRF250X 2006 User Manual

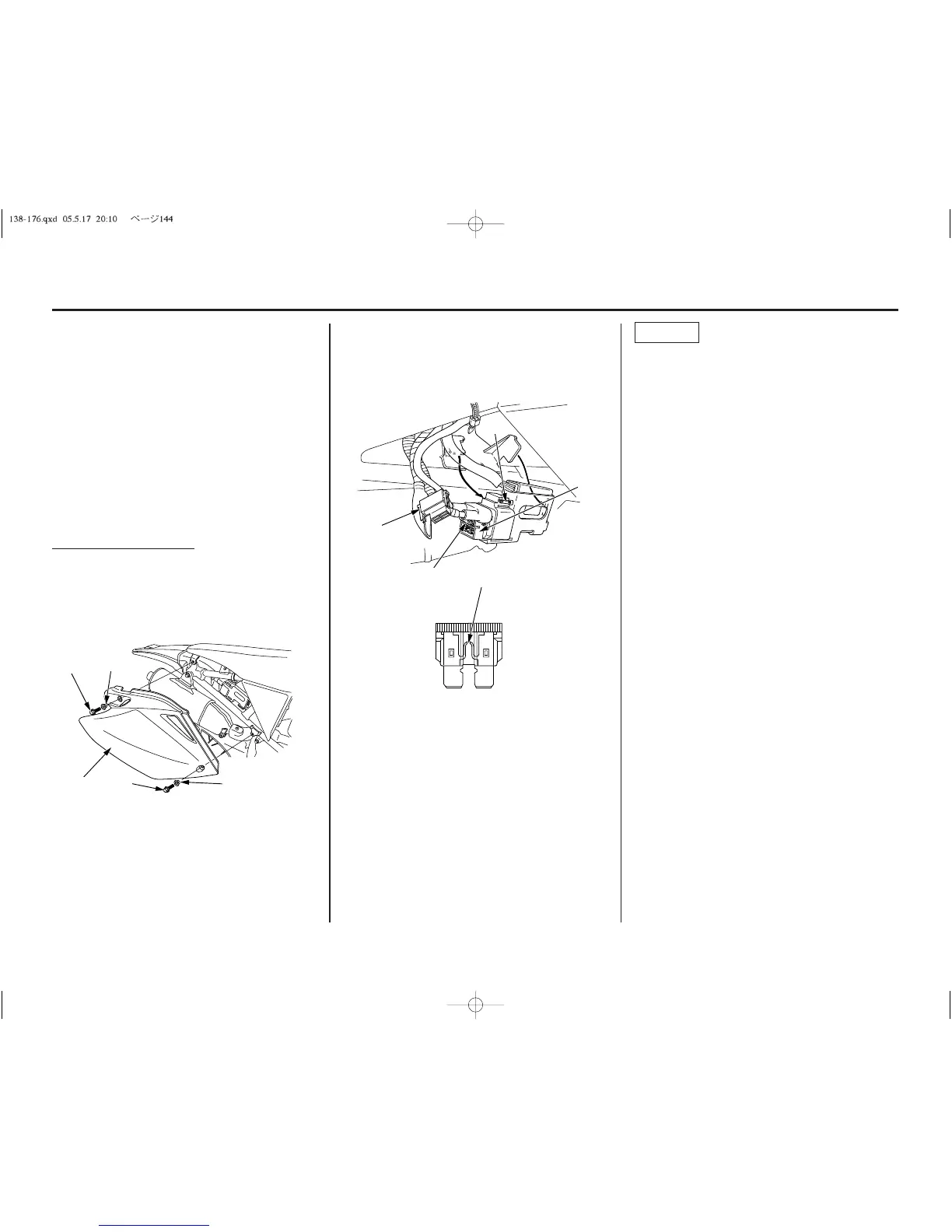

144 Taking Care of the Unexpected
If a Fuse Blows
All of the electrical circuits on your motorcycle
have a fuse to protect them from damage caused
by excess current flow (short circuit or overload).
If something electrical on your motorcycle stops
working, the first thing you should check for is a
blown fuse. Check the fuse before looking
elsewhere for another possible cause of the
problem. Replace a blown fuse and check
component operation.
• The main fuse (and spare) are located on the
starter motor magnetic switch behind the right
side cover.
Recommended Main Fuse:
15A
1. To prevent an accidental short circuit, stop the
engine.
2. Remove the seat bolt (1), right side cover bolt
(2), collars (3) and right side cover (4).
(1) seat bolt
(2) right side cover bolt
(3) collars
(4) right side cover
3. Disconnect the wire connector (5) of the
starter magnetic switch (6).
4. Pull main fuse (7) out. If it is blown (8),
install the spare main fuse (9).
(5) wire connector
(6) starter magnetic switch
(7) main fuse
(8) blown fuse
(9) spare main fuse
5. Reconnect the wire connector.
If you do not have a replacement fuse with the
proper rating for the circuit, install one with a
lower rating.
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If you replace a blown fuse with a spare fuse that
has a lower rating, replace the fuse with the
correct rating as soon as you can. Also remember
to replace the spare fuse that was installed.
If the replacement fuse of the same rating burns
out in a short time, there is probably a serious
electrical problem on your motorcycle.
Leave the blown fuse in that circuit and have
your motorcycle checked by your Honda dealer.
NOTICE
(1)
(3)
(3)
(2)
(4)
(9)
(5)
(7)
(6)
(8)
