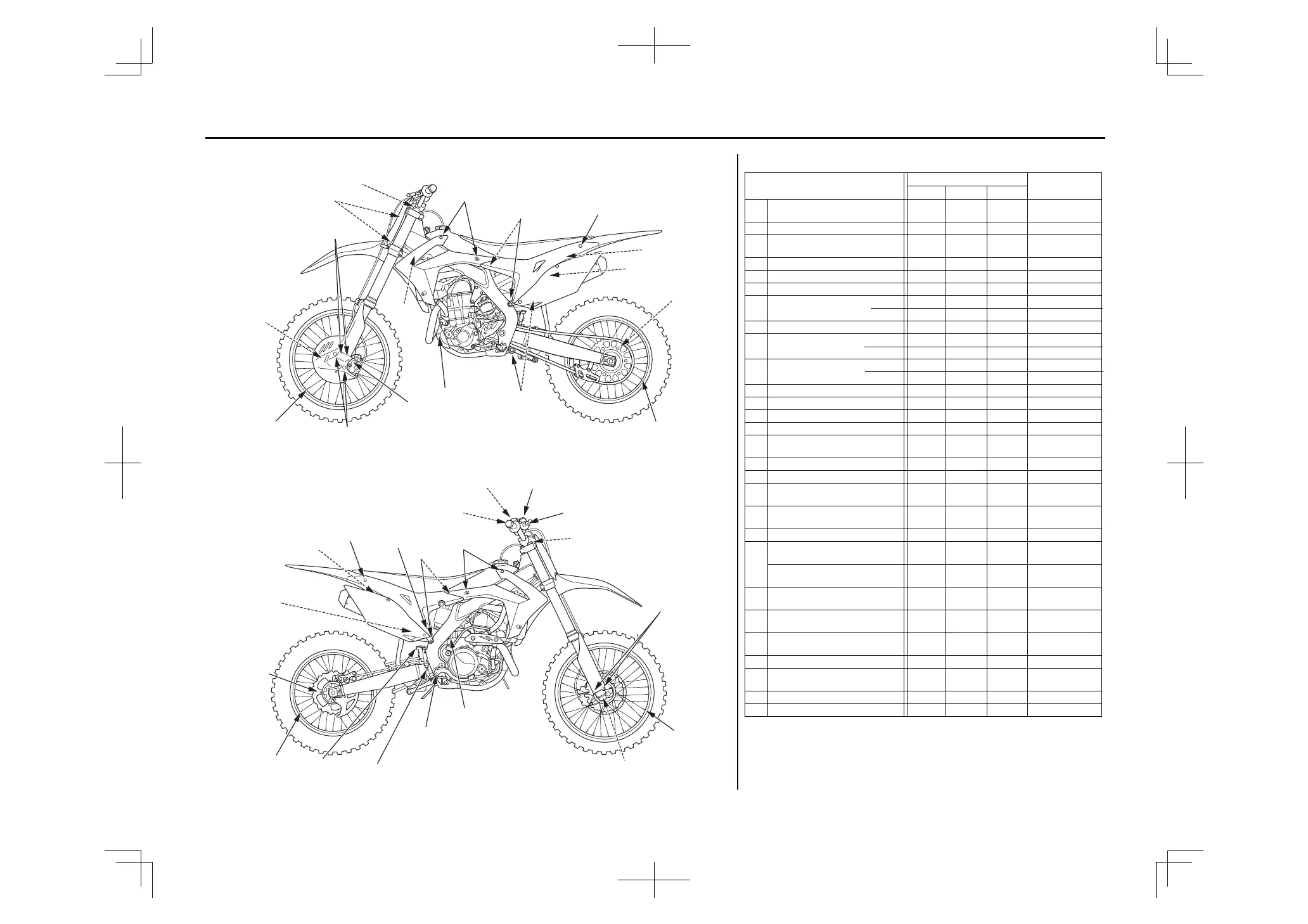

Torque Specifications
154 Technical Information
(41)
(43)
(46)
(42)
(38)
(37)
(28)
(47)
(48)
(34)
(28)
(25)
(31)
(24)
(35)
(49)
(30)
LEFT SIDE
(38)
(42)
(42)
(31)
(46)
(22)
(44)
(39)
(23)
(41)
(29)
(32)(33)
(36)
(27)
(45)
(29)
(40)
(26)
(35)
(36)
RIGHT SIDE
FRAME
Item
Torque
Remarks
lbf•ft N•m kgf•m
22 Front brake master cylinder
holder bolts 7.3 9.9 1.0
23 Brake hose oil bolts 25 34 3.5
24 Front brake caliper
mounting bolts 22 30 3.1 NOTE 5
25 Front brake disc nuts 12 16 1.6 NOTE 1
26 Rear brake disc nuts 12 16 1.6 NOTE 1
27 Brake pedal pivot bolt 27 36 3.7 NOTE 5
28 Spokes (front) 2.7 3.7 0.4
(rear) 2.7 3.7 0.4
29 Rim locks 9 12 1.2
30 Drive chain roller (upper) 9 12 1.2 NOTE 4
(lower) 9 12 1.2 NOTE 1
31
Subframe bolts
(upper) 24 32 3.3
(lower) 36 49 5.0
32 Fork center bolt 41 55 5.6 NOTE 3
33 Fork center bolt lock nut 21 29 3.0
34 Disc cover bolts 10 13 1.3
35 Fork protector socket bolts 5.2 7.0 0.7 NOTE 5
36 Left / right muffler clamp
bolt 15 20 2.0
37 Driven sprocket nuts 24 32 3.3 NOTE 1
38 Seat mounting bolts 19 26 2.7
39 Front brake reservoir cap
screws 0.7 1.0 0.1
40 Rear brake reservoir cap
bolts 0.7 1.0 0.1
41 PSF air valve assembly 4.3 5.8 0.6
42 Right/left muffler mounting
bolt (rear) 19 26 2.7
Left muffler mounting bolt
(front) 19 26 2.7
43 Steering damper mounting
bolts 15 20 2.0 NOTE 5
44 Throttle cable adjuster lock
nuts 3.0 4.0 0.4
45 Rear master cylinder push
rod lock nut 4.4 5.9 0.6
46 Shroud B bolts (upper) 3.8 5.2 0.5
47 Left engine guard bolt/
washer 7 10 1.0
48 Air bleed bolt 1.2 1.6 0.2
49 Mud guard screws 1.1 1.5 0.2
NOTES: 1. U-nut
3. Apply a locking agent to the threads.
4. SH bolt
5. Alock bolt: replace with a new one.
To Next Page
