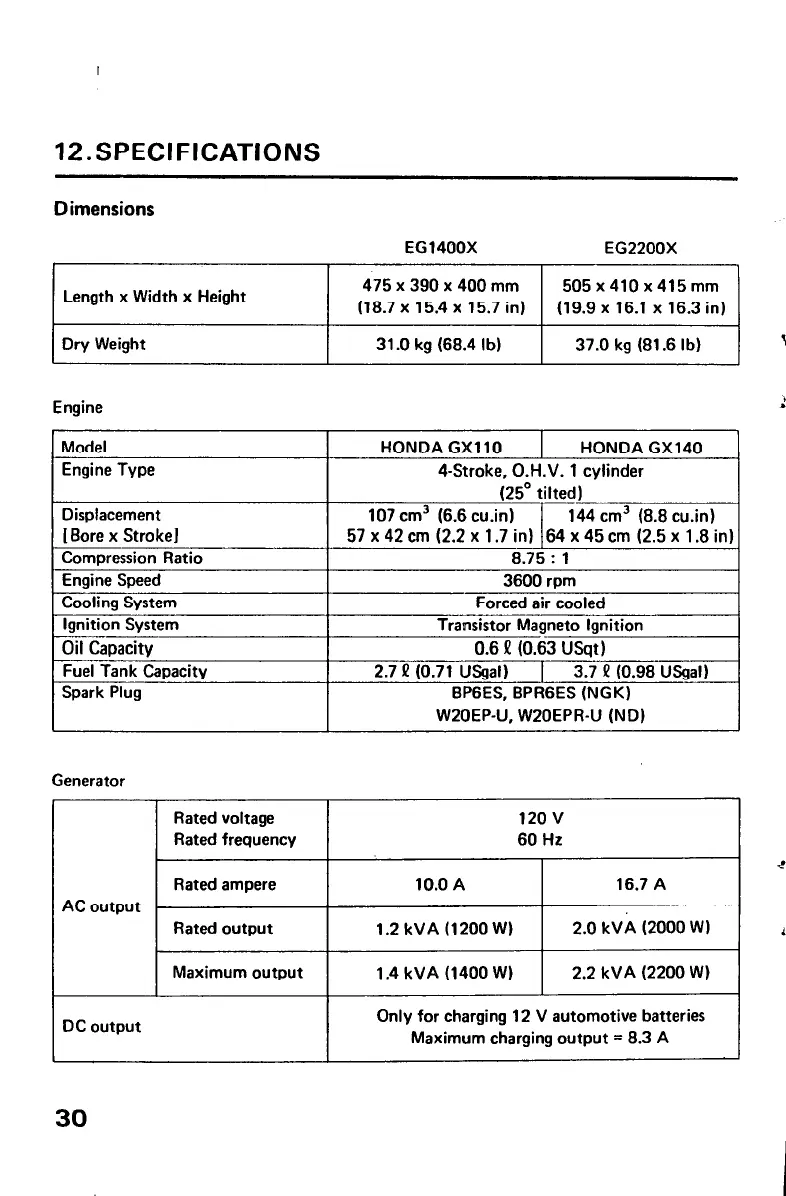

lZ.SPECIFICATIONS
Dimensions
EG1400X
EG2200X
Length x Width x Height
Dry Weight
475 x 390 x 400 mm
505x410x415mm
(18.7 x 15.4 x 15.7 in) (19.9 x 16.1 x 16.3 in)
31.0 kg (68.4 lb) 37.0 kg (81.6 lb)
Engine
Model
Engine Type
Displacement
[Bore x Stroke]
Compression Ratio
Engine Speed
HONDA GXllO HONDA GX140
4-Stroke, O.H.V. 1 cylinder
(25O tilted)
107 cm3 (6.6 cu.in) 144 cm3 (8.8 cu.in)
57 x 42
cm (2.2 x 1.7 in) 64 x 45 cm (2.5 x 1.8 in)
8.75 : 1
3600 rpm
Cooling System
Ignition System
Oil Capacity
Fuel Tank Capacity
Spark Plug
Forced air cooled
Transistor Magneto Ignition
0.6 Q (0.63 USqt )
2.7 2 (0.71 USgal) 1 3.7 P (0.98 USgal)
BPGES, BPRGES (NGK)
W20EP-U, W20EPRU (ND)
Generator
Rated voltage
120v
Rated frequency 60 Hz
Rated ampere 10.0 A
16.7 A
AC output
Rated output
1.2 kVA (1200 WI
2.0 kVA (2000 W)
Maximum output
1.4 kVA (1400 WI
2.2 kVA (2200 WI
DC output
Only for charging 12 V automotive batteries
Maximum charging output = 8.3 A
30
