CYLINDER BLOCK
14-14

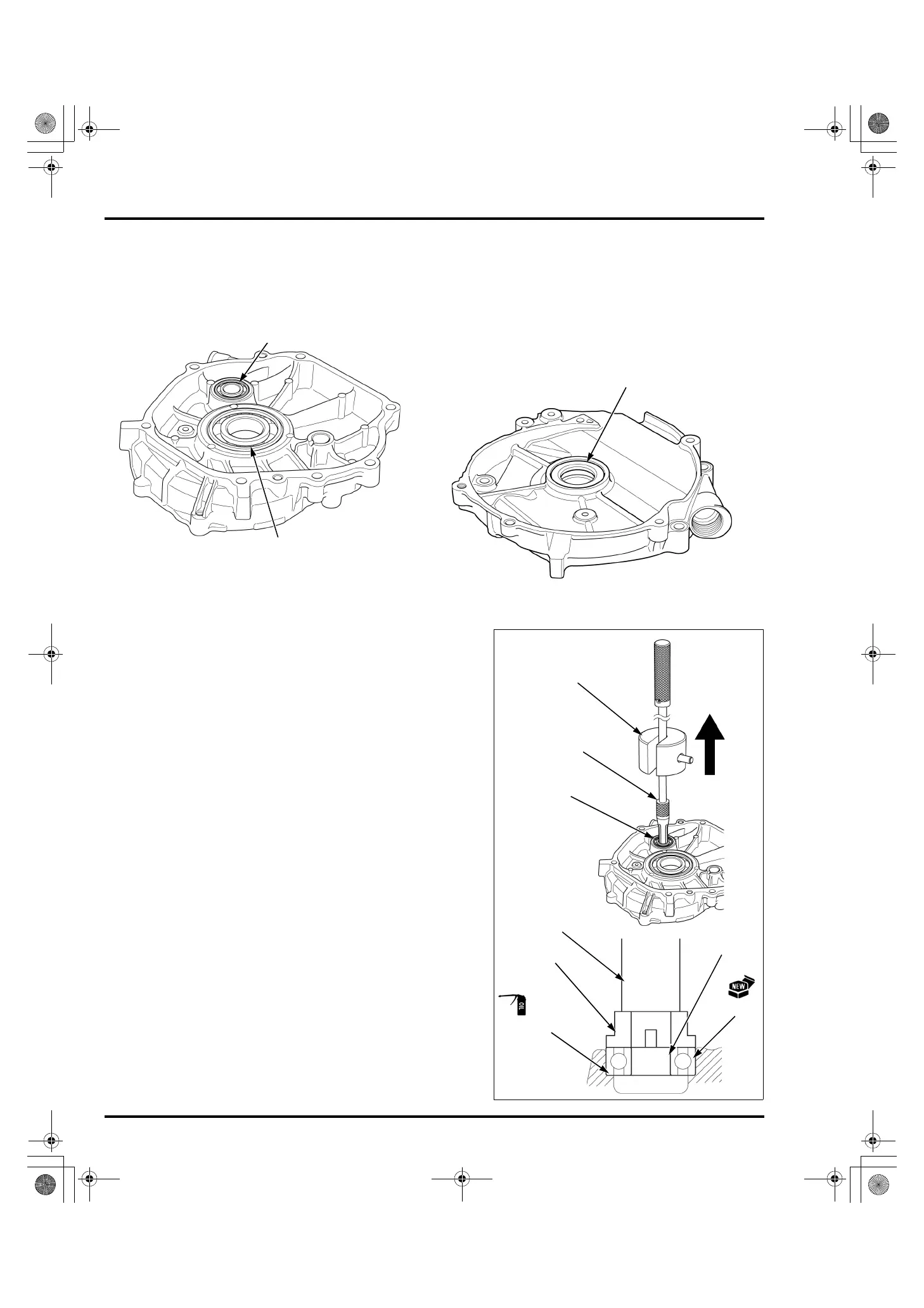

BEARING/OIL SEAL REPLACEMENT
CRANKCASE COVER
LOCATION
BALANCER WEIGHT BEARING (Except EG3600CX/
EG4000CX)
Pull out the radial ball bearing (1) using the special
tools.
Apply oil to the circumference of a new bearing (4).
Drive the radial ball bearing until it is fully seated on the
end using the special tools.
BALANCER WEIGHT BEARING (6202)
(Except EG3600CX/EG4000CX)
EG3600CX/EG4000CX:
CRANKSHAFT BEARING (6206)
Except EG3600CX/EG4000CX:
CRANKSHAFT BEARING (6207)
EG3600CX/EG4000CX:
CRANKSHAFT OIL SEAL (30 x 46 x 8 mm)
Except EG3600CX/EG4000CX:
CRANKSHAFT OIL SEAL (35 x 52 x 8 mm)
TOOLS:
Bearing remover shaft, 15 mm (2) 07936-KC10500
Remover weight (3) 07741-0010201
TOOLS:
Attachment, 32 × 35 mm (5) 07746-0010100
Pilot, 15 mm (6) 07746-0040300
Driver (7) 07749-0010000
(2)
(3)
(7)
(5)
(6)
(1)
(4)
(circumference)
