Honda EG5500CXS User Manual

MUFFLER
11-2
MUFFLER

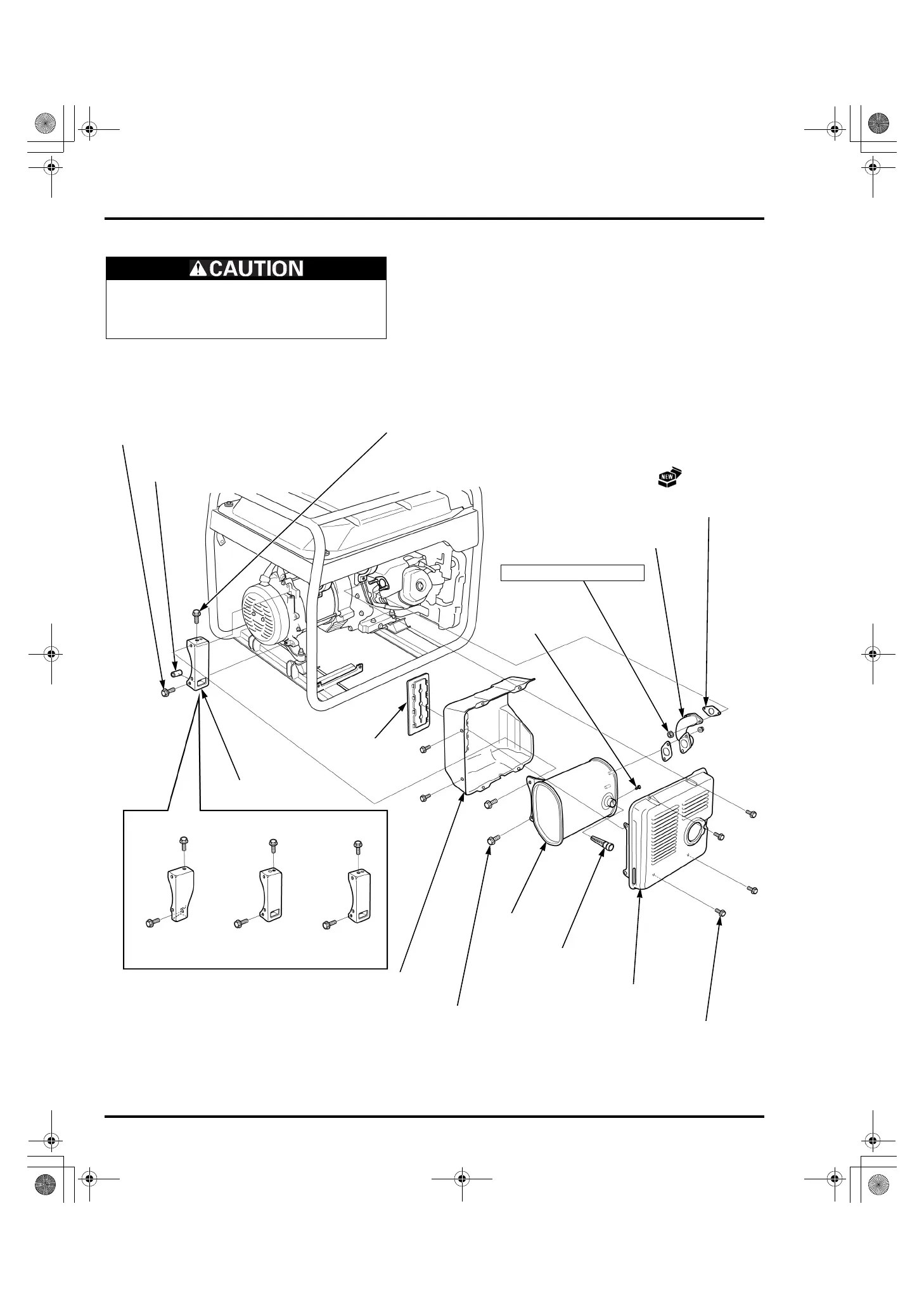

MUFFLER REMOVAL/INSTALLATION
The muffler becomes very hot during operation and
remains hot for a while after stopping the engine.
Be careful not to touch the muffler while it is hot.
Allow it to cool before proceeding.
INNER MUFFLER
PROTECTOR
EXHAUST PIPE
GASKET (2)
BOLT (6 x 10 mm) (6)
MUFFLER
OUTER MUFFLER
PROTECTOR
NUT (8 mm) (4)
EXHAUST PIPE
EG3600
/EG4000
BOLT (8 x 16 mm) (2)
BOLT (8 x 16 mm)
EG4500/EG5000:
BOLT (8 x 30 mm)
Except EG4500/EG5000:
BOLT (8 x 16 mm)
COLLAR
(EG4500/EG5000 only)
MUFFLER STAY
24 N·m (2.4 kgf·m, 18 lbf·ft)
TAPPING SCREW
(4 x 8 mm)
(UH type only)
SPARK ARRESTER
(UH type only)
EG4500
/EG5000
PROTECTOR
MUFFLER SEAL
EG5500
/EG6500
