ENGINE REMOVAL/INSTALLATION
12-2
ENGINE REMOVAL/ INSTALLATION
ENGINE REMOVAL/INSTALLATION
Remove the following:
– Muffler (page 11-2)
– Fuel tank (page 5-4)
– Recoil starter grip (page 9-4)

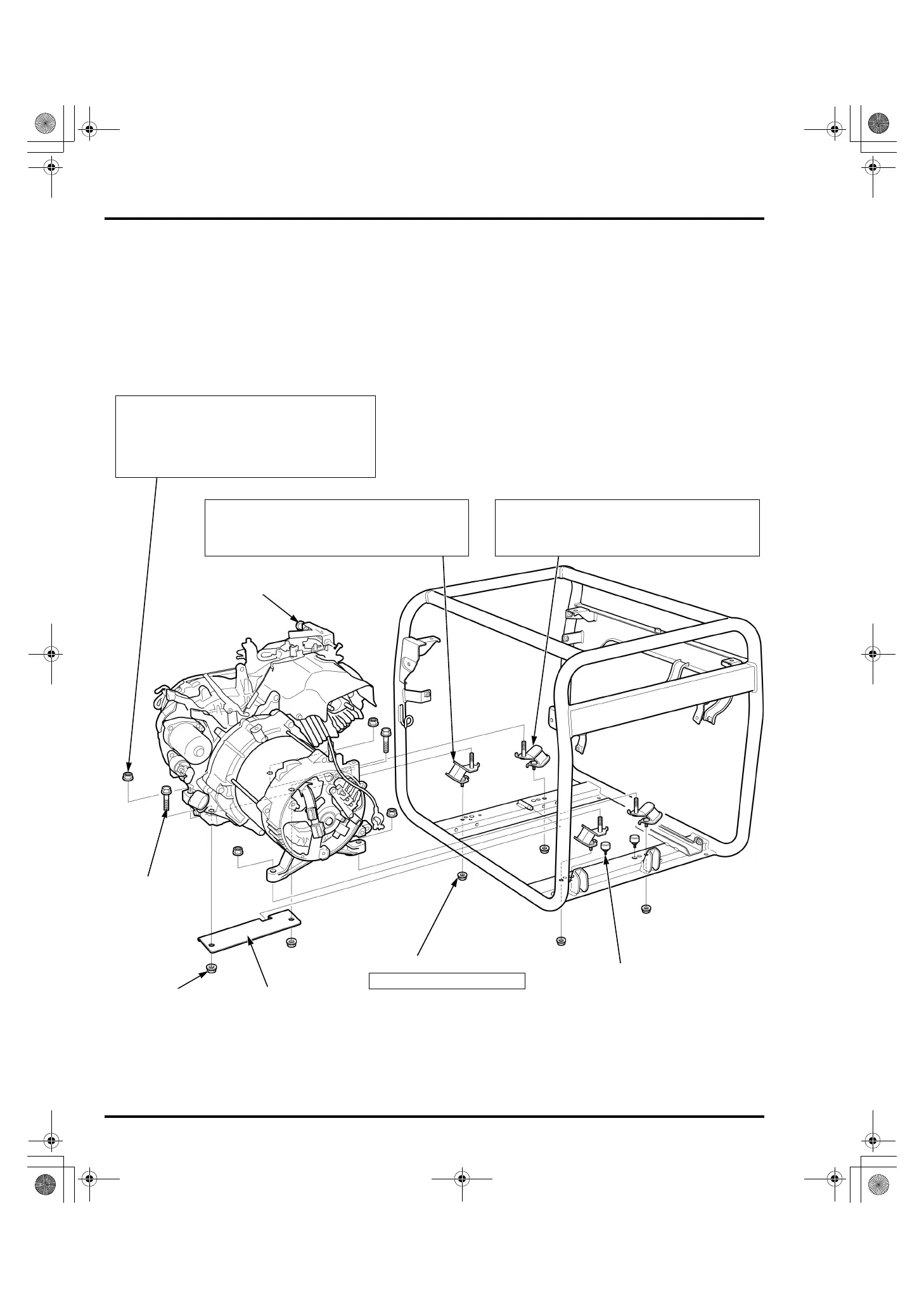

RUBBER MOUNT (OPPOSITE MUFFLER SIDE) (2)
STOPPER BRACKET
NUT (10 mm) (4)
NUT (8 mm) (4)
24 N·m (2.4 kgf·m, 18 lbf·ft)
INSTALLATION:
Tighten the nut to the specified torque while holding
the upper bracket of rubber mount by suitable tool.
TORQUE:
34 N·m (3.5 kgf·m, 25 lbf·ft)
ENGINE
RUBBER MOUNT (MUFFLER SIDE) (2)
INSTALLATION:
• Insert alignment tabs into the holes.
• Make sure the rubber is not chipped hard or worn.
• Note the installation direction.
NUT (10 mm) (2)
BOLT
(10 x 40 mm)
(2)
STOPPER RUBBER (2)
INSTALLATION:
• Insert alignment tabs into the holes.
• Make sure the rubber is not chipped hard or worn.
• Note the installation direction.
