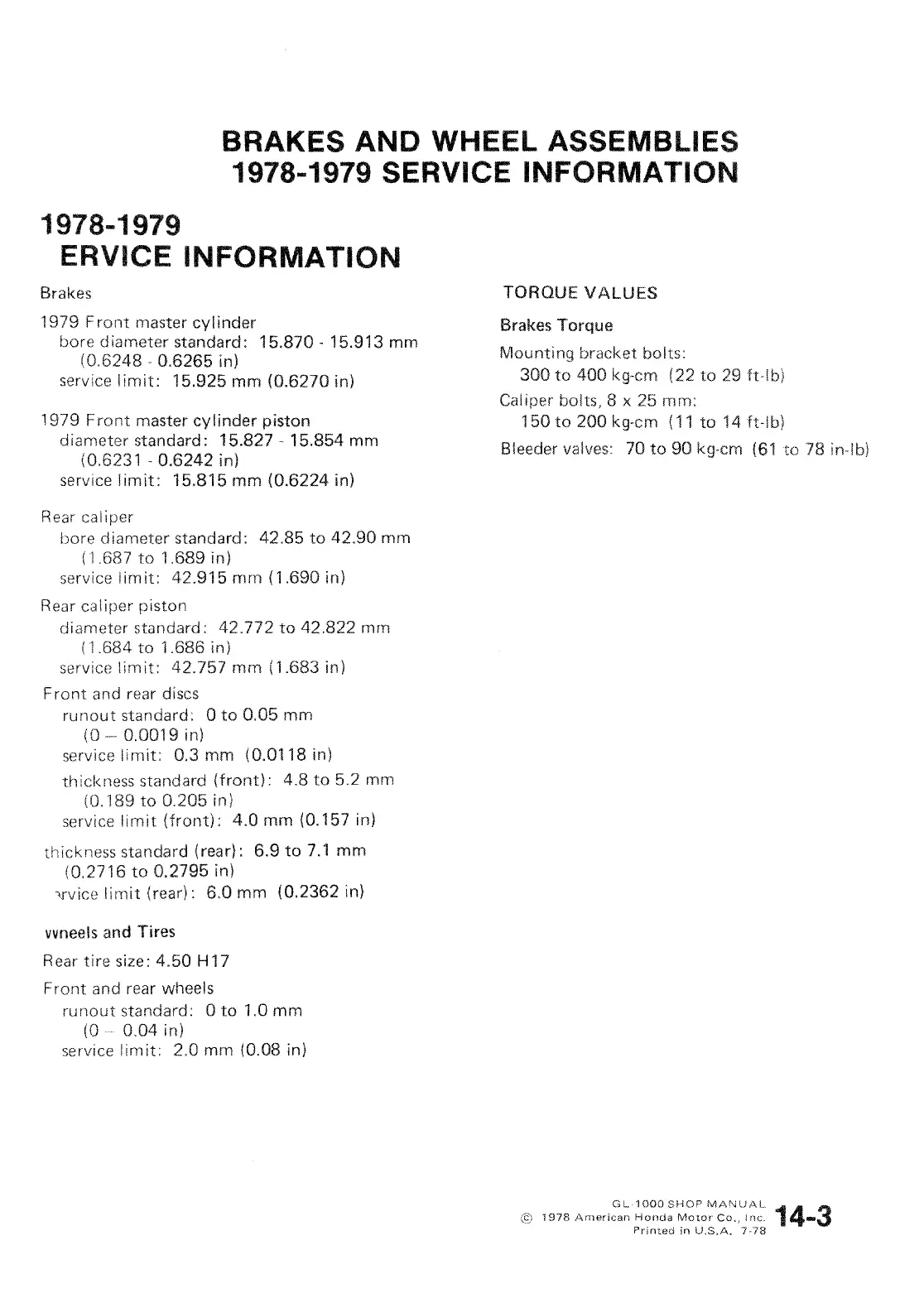

Honda GoldWing GL1000 1977 User Manual

TORQUE VALUES
I8rakes Torque
Mounting bracket bolts:
300 to 400 kg-cm (22 to 29 ft-Ib)
Caliper bolts, 8 x 25 mm:
150 to 200 kg-cm (11 to 14 ft-Ib)
Bleeder valves: 70 to 90 kg-cm (61 to 78 in-lb)
'l979 Front master cylinder
bore diameter standard: 15.870 - 15.913 rnm
(0.6248 — 0.6265 in)
ser v ice limit: 15.925 mm (0.6270 in)
1979 F I Qnt mastel" cyIlnder piston
diameter standard: 15.827 - 15.854 mm
(0.6231 - 0,6242 in)
service limit: 15.815 mm (0.6224 in)
Rear caliper
bore diameter standard: 42.85 to 42.90 mm
( I.687 to 1.689 in)
service limit: 42.915 mm (1.690 in)
Real
caliper p
iston
0IIBmetel' stal1dard: 42.772 to "I2.822 mftf
( l.684 to 1.686 in)
sef'vice limit: 42.757 mm (1.683 in)
r 0 n t. B n cl f' e B f' cl I s c s
runout standard: 0 to 0.05 mm
(0- 0.0019 in)
service limit: 0.3 mm (0.0118 in)
thickness standard (front): 4.8 to 5.2 mm
(0.189 to 0.205 in)
service liimit (front): 4.0 mm (0.157 in)
thick iaess staflcIBf
*
d (II'eal"): 6.9 to 7.1 fTllTI
(0.2716 to 0.2795 in)
~rvice limit (rear): 6,0 mm (0.2362 in)
vvneels and Tires
Rear tire size: 4.50 H]7
Front and rear wheels
rune ut standard: 0 to 1.0 mm
(0 0.04 in)
service limit: 2.0 rnm (0.08 in)
6 l .1000 SHOP rrir AKiuAL
c~ 1~378 American Honija Moto r Co
Inc
4 4
ao
3
P iinrara in U„S„A. r- 7 8

Honda GoldWing GL1000 1977 Specifications

General

Compression Ratio	9.2:1
Fuel System	Carburetor
Ignition	Breaker points
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Drum
Seat Height	810 mm (31.9 inches)
Dry Weight	265 kg (584 lbs)
Starting System	Electric
Front Tire	3.50-19
Rear Tire	4.50-17
Bore x Stroke	72.0 mm x 61.4 mm
Rear Suspension	Swingarm with dual shocks
Fuel Capacity	19 liters (5.0 gallons)
Carburetion	4 Keihin carburetors
