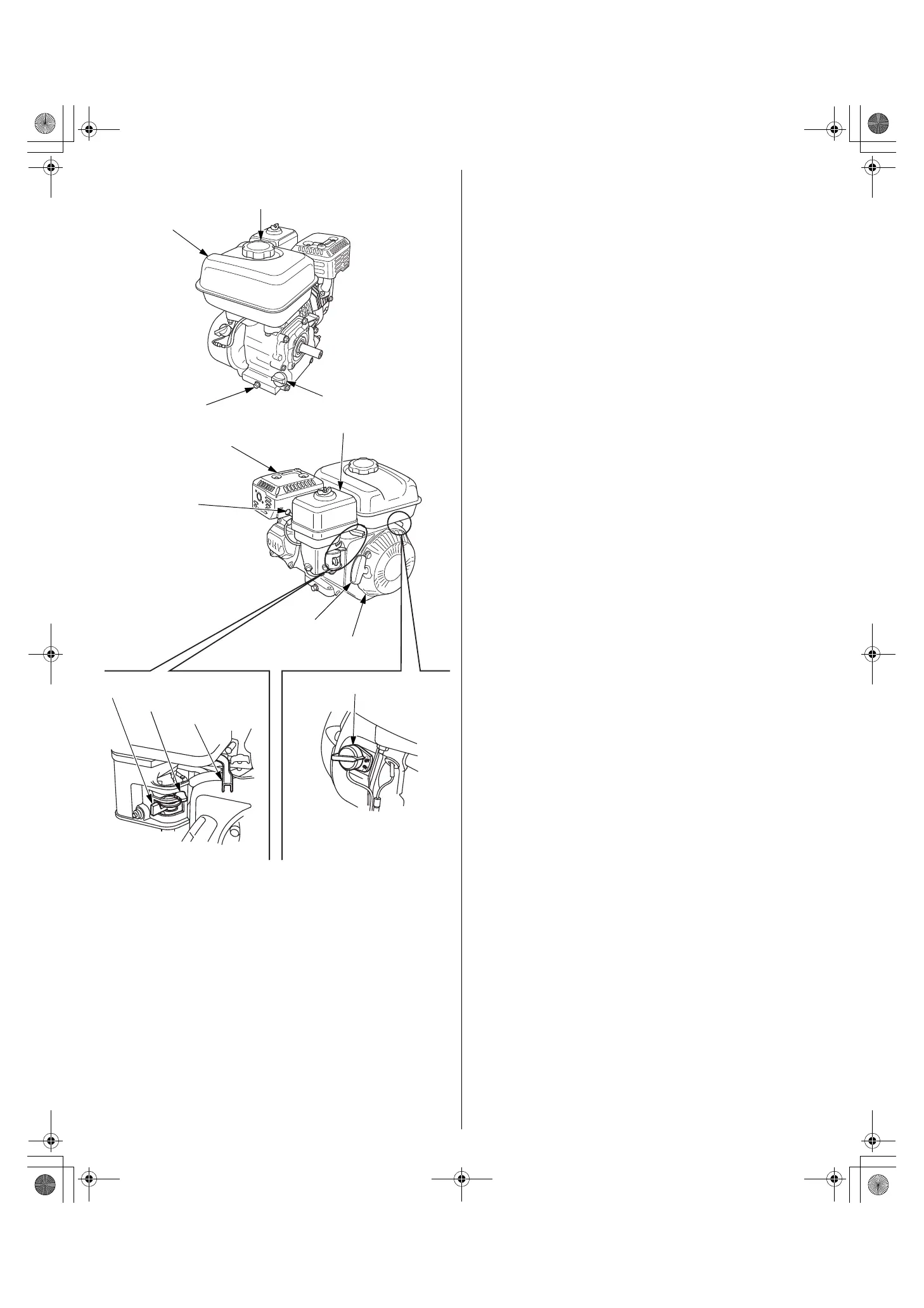

COMPONENT & CONTROL LOCATIONS
FUEL TANK CAP
FUEL TANK
OIL DRAIN PLUG
OIL FILLER CAP
RECOIL STARTER
AIR CLEANER
MUFFLER
SPARK PLUG
STARTER GRIP
ENGINE CONTROL TYPES
FUEL VALVE LEVER
CHOKE LEVER
ENGINE SWITCH
THROTTLE LEVER
FEATURES
OIL ALERT SYSTEM (applicable types)
The Oil Alert system is designed to prevent engine damage caused
by an insufficient amount of oil in the crankcase. Before the oil level
in the crankcase can fall below a safe limit, the Oil Alert system will
automatically stop the engine (the engine switch will remain in the
ON position).
If the engine stops and will not restart, check the engine oil level
(see page 7) before troubleshooting in other areas.
