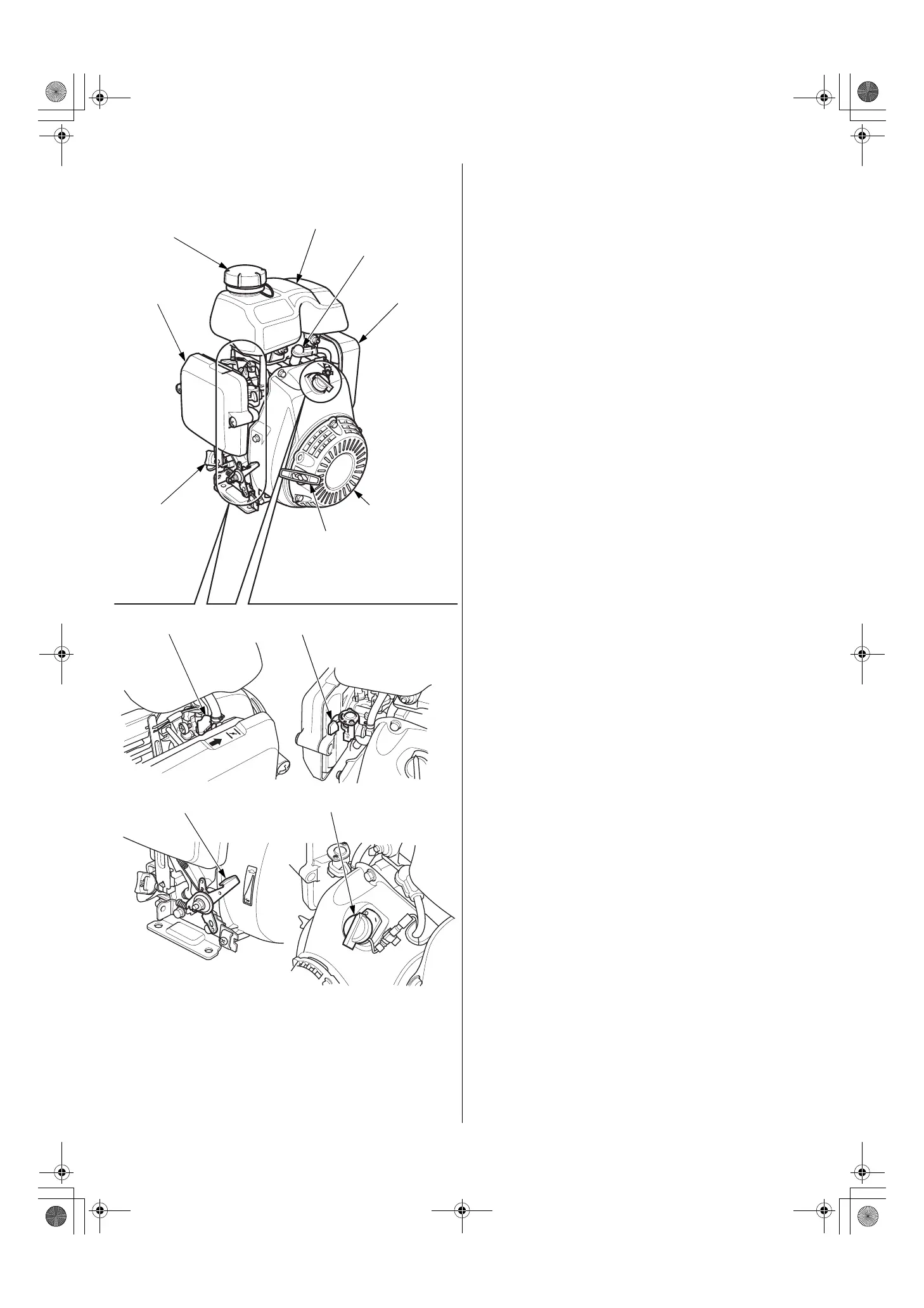

COMPONENT & CONTROL LOCATIONS FEATURES
Oil Alert® System (applicable types)
‘‘Oil Alert is a registered trademark in the United States’’
The Oil Alert system is designed to prevent engine damage caused by an
insufficient amount of oil in the crankcase. Before the oil level in the
crankcase can fall below a safe limit, the Oil Alert system will
automatically stop the engine (the engine switch will remain in the ON
position).
If the engine stops and will not restart, check the engine oil level (see
page 8) before troubleshooting in other areas.
FUEL FILLER CAP
FUEL TANK
SPARK PLUG
MUFFLER
(inside the cover)
AIR CLEANER
OIL FILLER CAP/
DIPSTICK
RECOIL STARTER
STARTER GRIP
ENGINE CONTROLS
FUEL VALVE LEVERCHOKE LEVER
THROTTLE LEVER ENGINE SWITCH
37ZDD6020.fm 3 ページ ２０１９年１１月１９日 火曜日 午前９時３分

Honda GX100 Specifications

General

Bore x Stroke	56 mm x 40 mm
Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto ignition
Starting System	Recoil starter
Lubrication System	Forced splash
Engine Type	4-stroke
Displacement	98 cm3
