Honda GX120 User Manual

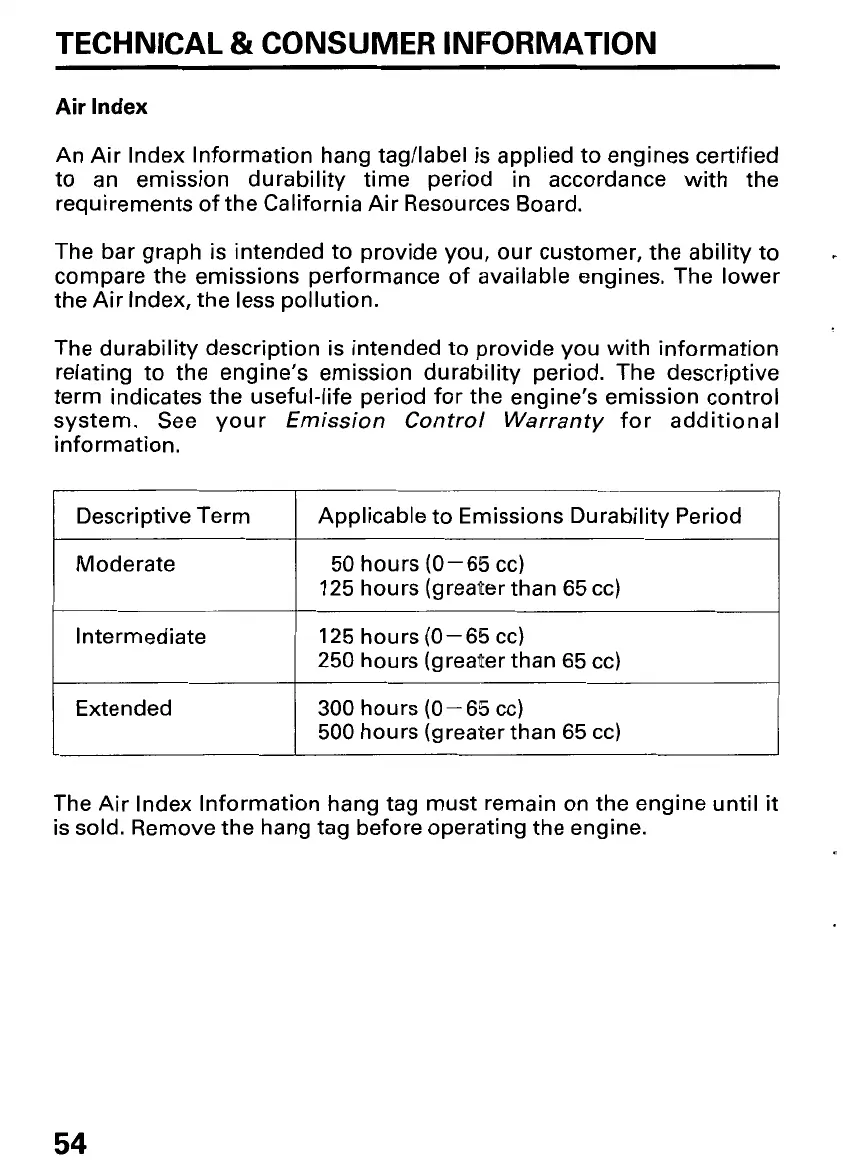

TECHNICAL 81 CONSUMER INFORMATION
Air Index
An Air Index Information hang tag/label is applied to engines certified
to an emission durability time period
in accordance with the
requirements of the California Air Resources Board.
The bar graph is intended to provide you, our customer, the ability to
compare the emissions performance of available engines. The lower
the Air Index, the less pollution.
The durability description is intended to provide you with information
relating to the engine's emission durability period. The descriptive
term indicates the useful-life period for the engine's emission control
system. See your
Emission Control Warranty for additional
information.
Descriptive Term
50 hours (0-65 cc) Moderate
Applicable to Emissions Durability Period
125 hours (greater than 65 cc)
Intermediate 125 hours (0-65 cc)
250 hours (greater than 65 cc)
Extended
300 hours (0-665 cc)
500 hours (greater than 65 cc)
The Air Index Information hang tag must remain on the engine until
it
is sold. Remove the hang tag before operating the engine.
54

Honda GX120 Specifications

General

Bore x Stroke	60 mm x 42 mm
Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Air Cleaner	Dual element
Ignition System	Transistorized magneto
Starting System	Recoil starter
Fuel System	Carburetor
Lubrication System	Splash
Engine Type	4-stroke, single cylinder, overhead valve (OHV)
Displacement	118 cm3
Net Power Output	2.6 kW (3.5 HP) at 3, 600 rpm
Net Torque	7.3 Nm (5.4 lbs ft) at 2, 500 rpm
Dimensions (L x W x H)	305 mm x 355 mm x 355 mm (12 in x 14 in x 14 in)
