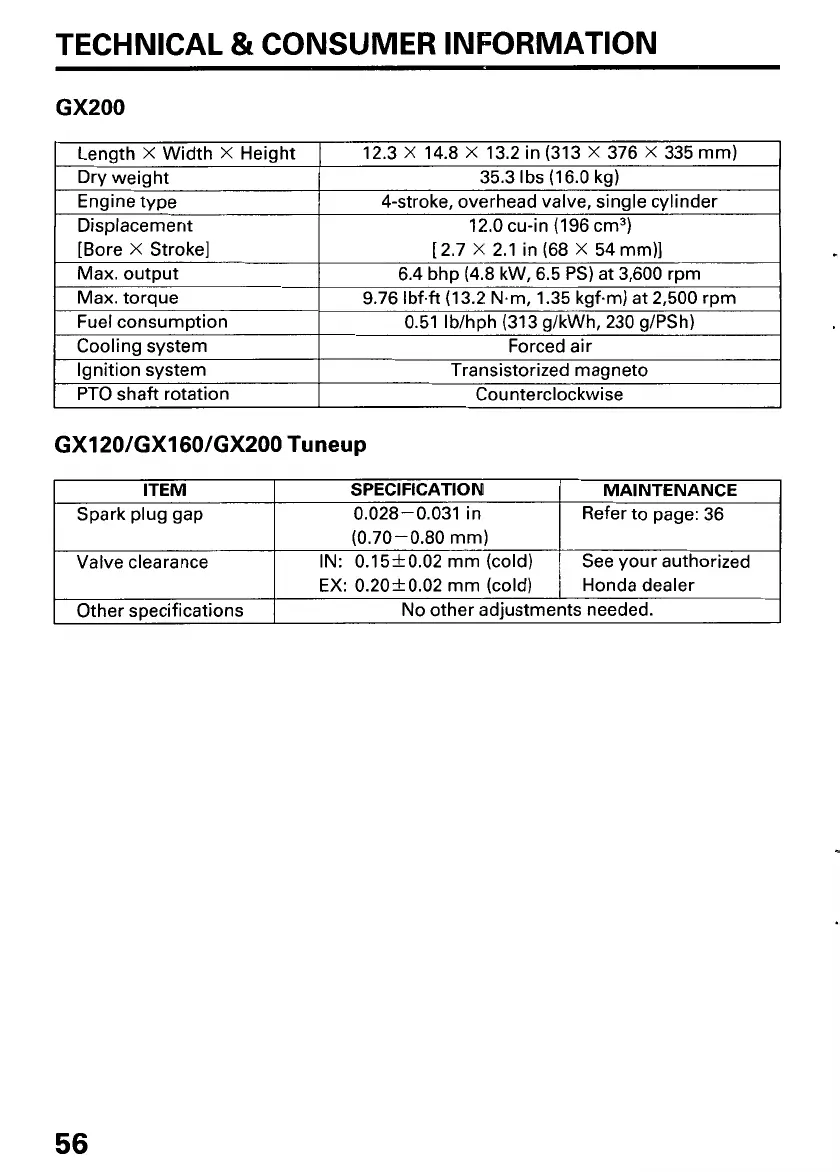

TECHNICAL & CONSUMER INFORMATION
GX200
Length X Width X Height I 12.3 X 14.8 X 13.2 in (313 X 376 X 335 mm)
Drv weiaht
35.3 Ibs (16.0 kn)
Engine type
12.0 cu-in (196 cm3)
Displacement
4-stroke, overhead valve, single cylinder
Forced air
Coolina svstem
0.51 Ib/hph (313 g/kWh, 230 g/PSh)
Fuel consumption
9.76 Ibf.ft (13.2 N.m, 1.35 kgf.m) at 2,500 rpm
Max. torque
6.4 bhp (4.8 kW, 6.5 PS) at 3,600 rpm
Max. output
[ 2.7 X 2.1 in (68 X 54 mm)]
[Bore
X Stroke]
I lanition svstem I Transistorized maaneto I
I PTO shaft rotation Counterclockwise
GX120/GX160/GX200 Tuneup
ITEM MAINTENANCE SPECIFICATION
Spark plug gap
No other adjustments needed.
Other specifications
See your authorized
IN: 0.15k0.02 mm (cold)
Valve clearance
(0.70-0.80 mm)
Refer to page:
36 0.028-0.031 in
EX: 0.20k0.02 mm (cold) Honda dealer
56

Honda GX120 Specifications

General

Bore x Stroke	60 mm x 42 mm
Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Air Cleaner	Dual element
Ignition System	Transistorized magneto
Starting System	Recoil starter
Fuel System	Carburetor
Lubrication System	Splash
Engine Type	4-stroke, single cylinder, overhead valve (OHV)
Displacement	118 cm3
Net Power Output	2.6 kW (3.5 HP) at 3, 600 rpm
Net Torque	7.3 Nm (5.4 lbs ft) at 2, 500 rpm
Dimensions (L x W x H)	305 mm x 355 mm x 355 mm (12 in x 14 in x 14 in)
