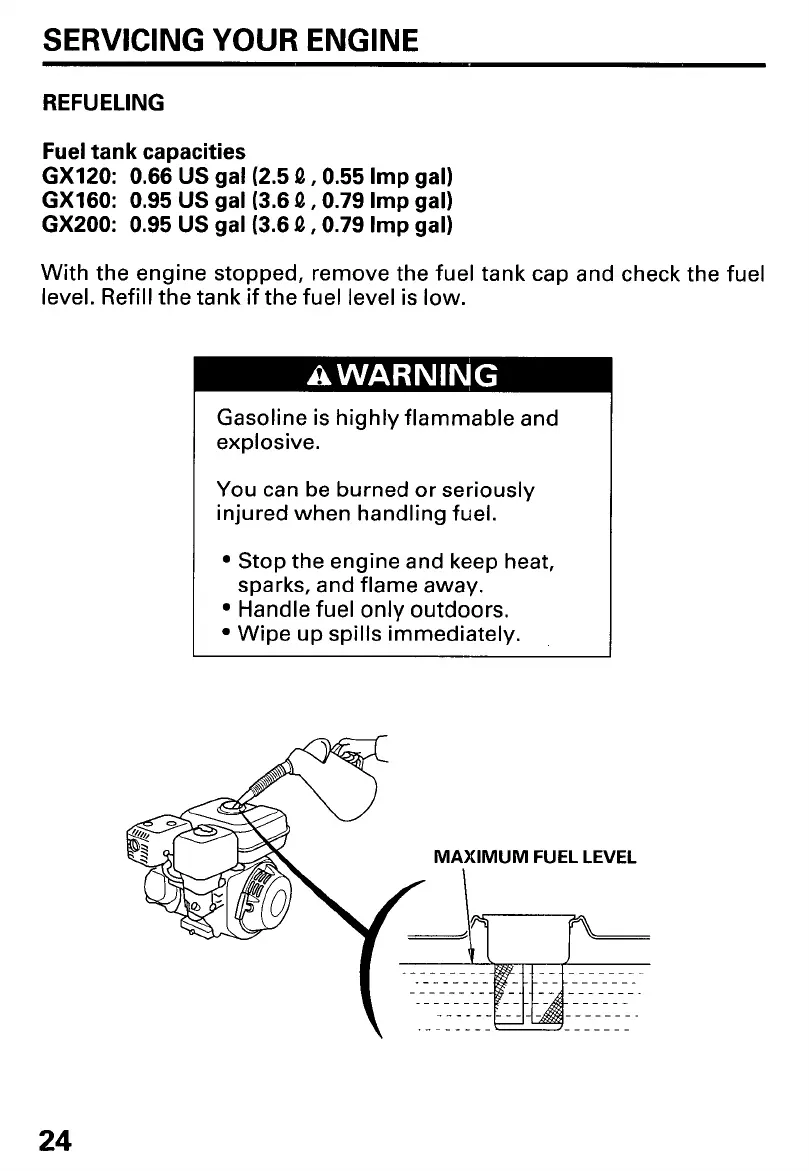

SERVICING YOUR ENGINE
REFUELING
Fuel tank capacities
GX120: 0.66 US gal
(2.5 Q ,0.55 Imp gal)
GX160:
0.95 US gal (3.6 Q ,0.79 Imp gal)
GX200:
0.95 US gal (3.6 Q, 0.79 Imp gal)
With the engine stopped, remove the fuel tank cap and check the fuel
level. Refill the tank
if the fuel level is low.
Gasoline is highlyflammable and
explosive.
You can be burned or seriously
injured when handling fuel.
Stop the engine and keep heat,
sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
24

Honda GX160 Specifications

General

Bore x Stroke	68 mm x 45 mm
Compression Ratio	9.0:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized Magneto Ignition
Air Cleaner	Dual element
Fuel System	Carburetor
Lubrication System	Splash
Engine Type	Air-cooled 4-stroke OHV
Displacement	163 cm³
Net Power Output	3.6 kW (4.8 HP) at 3, 600 rpm
Net Torque	10.3 Nm (7.6 lbs ft) @ 2, 500 rpm
Fuel Tank Capacity	3.1 Liters (0.82 US gal)
Fuel Consumption	1.4 L/h at 3, 600 rpm
Starting System	Recoil
Oil Capacity	0.58 Liters (0.61 US qt)
Dimensions	362 mm
Dry Weight	15.1 kg
Max Power Output	4.1 kW (5.5 HP) @ 3, 600 rpm
