Honda GX160 User Manual

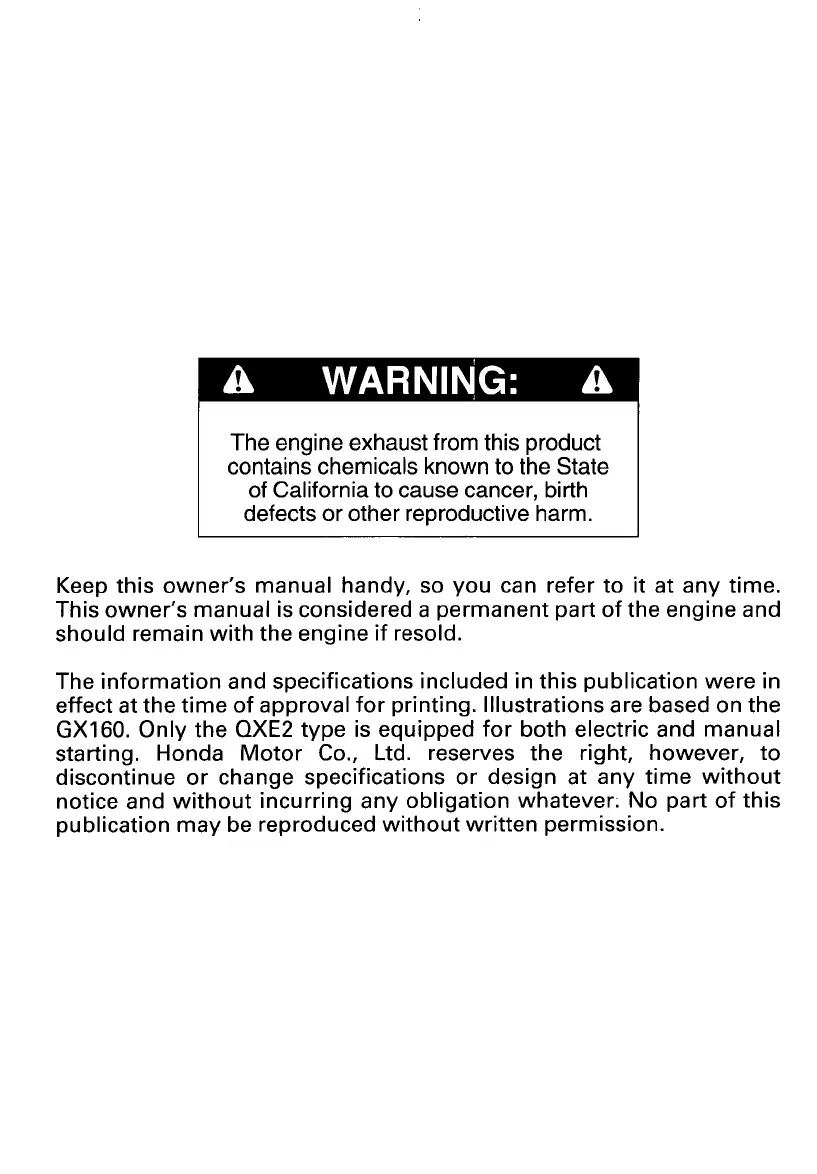

The engine exhaust from this product
contains chemicals known
to the State
of California
to cause cancer, birth
defects or other reproductive harm.
Keep this owner's manual handy,
so you can refer to it at any time.
This owner's manual
is considered a permanent part of the engine and
should remain with the engine if resold.
The information and specifications included in this publication were in
effect
at the time of approval for printing. Illustrations are based on the
GX160. Only the QXE2 type is equipped for both electric and manual
starting. Honda Motor
Co., Ltd. reserves the right, however, to
discontinue or change specifications or design
at any time without
notice and without incurring any obligation whatever.
No part of this
publication may be reproduced without written permission.

Honda GX160 Specifications

General

Bore x Stroke	68 mm x 45 mm
Compression Ratio	9.0:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized Magneto Ignition
Air Cleaner	Dual element
Fuel System	Carburetor
Lubrication System	Splash
Engine Type	Air-cooled 4-stroke OHV
Displacement	163 cm³
Net Power Output	3.6 kW (4.8 HP) at 3, 600 rpm
Net Torque	10.3 Nm (7.6 lbs ft) @ 2, 500 rpm
Fuel Tank Capacity	3.1 Liters (0.82 US gal)
Fuel Consumption	1.4 L/h at 3, 600 rpm
Starting System	Recoil
Oil Capacity	0.58 Liters (0.61 US qt)
Dimensions	362 mm
Dry Weight	15.1 kg
Max Power Output	4.1 kW (5.5 HP) @ 3, 600 rpm
