Honda GX160 User Manual

HELPFUL TIPS & SUGGESTIONS

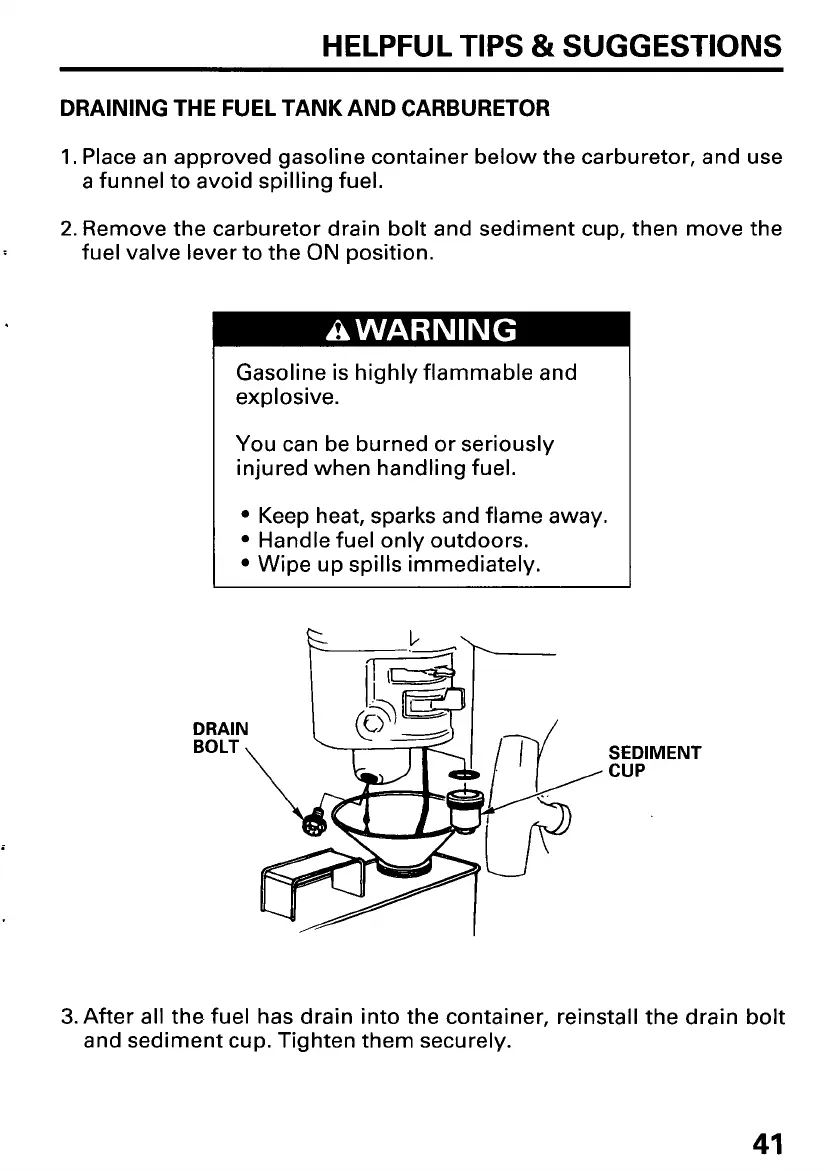

DRAINING THE FUEL TANK AND CARBURETOR
1. Place an approved gasoline container below the carburetor, and use
a funnel to avoid spilling fuel.
2. Remove the carburetor drain bolt and sediment cup, then move the
fuel valve lever to the
ON position.
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
Keep heat, sparks and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
SEDIMENT
CUP
3. After all the fuel has drain into the container, reinstall the drain bolt
and sediment cup. Tighten them securely.
41

Honda GX160 Specifications

General

Bore x Stroke	68 mm x 45 mm
Compression Ratio	9.0:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized Magneto Ignition
Air Cleaner	Dual element
Fuel System	Carburetor
Lubrication System	Splash
Engine Type	Air-cooled 4-stroke OHV
Displacement	163 cm³
Net Power Output	3.6 kW (4.8 HP) at 3, 600 rpm
Net Torque	10.3 Nm (7.6 lbs ft) @ 2, 500 rpm
Fuel Tank Capacity	3.1 Liters (0.82 US gal)
Fuel Consumption	1.4 L/h at 3, 600 rpm
Starting System	Recoil
Oil Capacity	0.58 Liters (0.61 US qt)
Dimensions	362 mm
Dry Weight	15.1 kg
Max Power Output	4.1 kW (5.5 HP) @ 3, 600 rpm
