Honda GX270UT2 User Manual

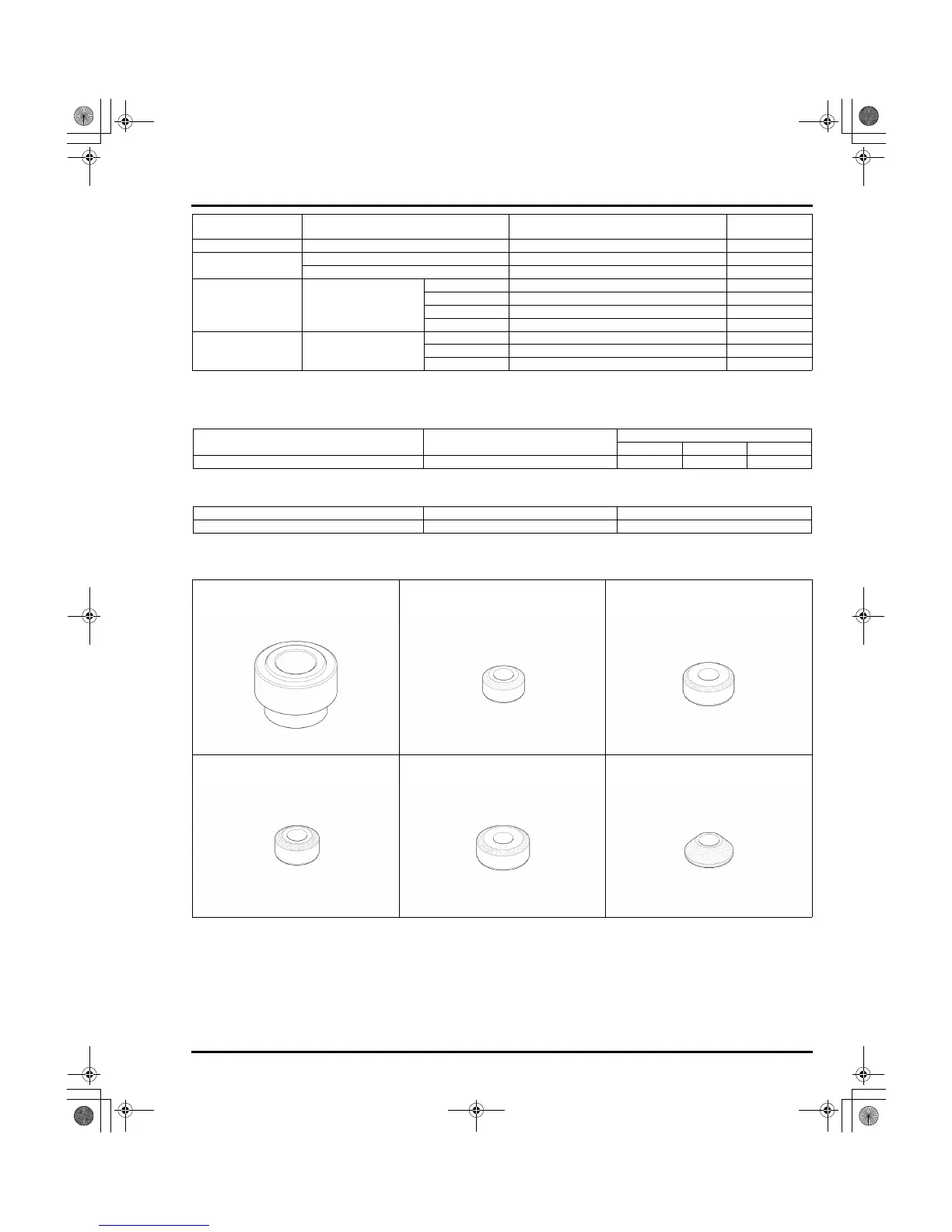

SERVICE INFORMATION
2-3
TORQUE VALUES
ENGINE TORQUE VALUES
LUBRICATION & SEAL POINT
TOOLS
Ignition coil Air gap 0.2 – 0.6 (0.01 – 0.02) –
Starter motor Brush length 7.0 (0.28) 3.5 (0.14)
Mica depth 1.0 (0.04) 0.2 (0.01)
Charge coil Resistance 1A 3.00 - 4.00 Ω –
3A 0.62 - 0.93 Ω –
10A 0.16 - 0.24 Ω –
18A 0.10 - 0.30 Ω –
Lamp coil Resistance 12V - 15 W 1.04 - 1.56 Ω –
12V - 25 W 0.30 - 0.46 Ω –
12V - 50 W 0.29 - 0.44 Ω –
Part Item Standard
Service
limit
Item Tread Dia. (mm)
Torque values
N·m kgf·m lbf·ft
Flywheel nut M16 x 1.5 (Special nut) 128 13.1 94
Location Material Remarks
Clutch friction disc and clutch plate Engine oil 1/2 reduction with clutch
Inner bearing driver attachment, 30
mm [in combination with 07746-
0030100] 07746-0030300
Seat cutter, 27.5 mm
07780-0010200
Seat cutter, 33 mm
07780-0010800
Flat cutter, 28 mm
07780-0012100
Flat cutter, 33 mm
07780-0012900
Interior cutter, 30 mm
07780-0014000
62Z5F00Z.book 3 ページ ２０１０年６月２３日 水曜日 午後２時５７分

Honda GX270UT2 Specifications

General

Brand	Honda
Model	GX270UT2
Category	Engine
Language	English

Summary

Safety Information and Precautions

General Service Safety Information

Guidance for professional technicians on safe service procedures and potential hazards.

Customer and Personal Safety Warnings

Critical warnings about injury or death from improper service and unsafe conditions.

Engine Specifications

Dimensions and Weights

Engine Performance Data

Dimensional Drawings

P.T.O. Dimensional Drawings

Service Information

Maintenance Standards and Tolerances

Specifies standard measurements and service limits for engine components.

Engine Torque Specifications

Lists critical torque values for engine assembly and maintenance.

Maintenance

Maintenance Schedule Overview

Provides a schedule for regular maintenance tasks based on time or usage.

Reduction Case Oil Maintenance
