MAINTENANCE
3-6

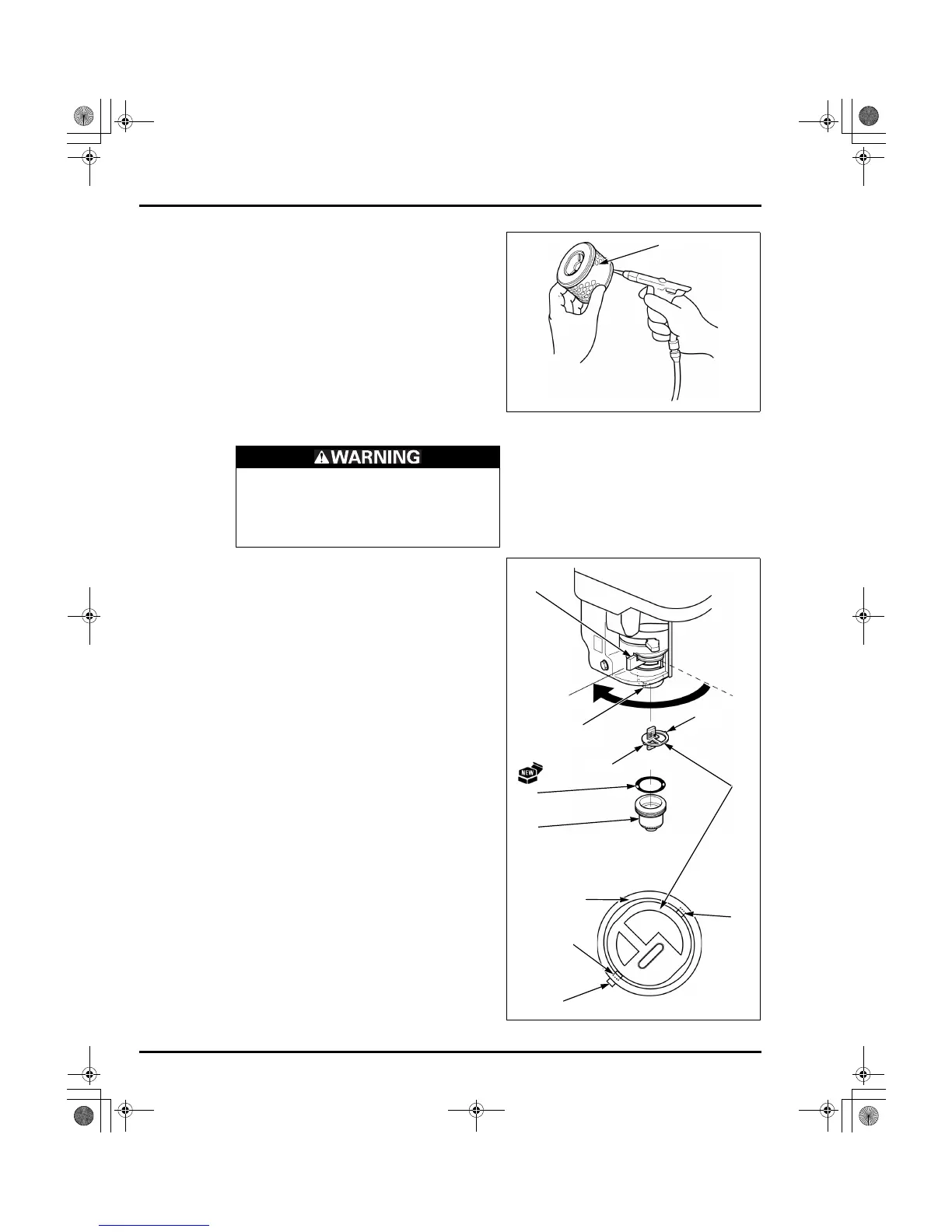

INNER FILTER (PAPER) TYPE:
Tap the inner filter (1) lightly several times on a hard
surface to remove excess dirt, or blow compressed air
lightly (207 kPa (2.11 kgf/cm
2
, 30 psi) or less) through
the paper filter from the inside out. Never try to brush
the dirt off; brushing will force dirt into the fibers.
Wipe dirt from the inside of the air cleaner case and the
air cleaner cover, using a rag.
Check the air cleaner case packing for deterioration or
damage. Make sure the air cleaner packing installed
securely.
Install the cleaner in the reverse order of removal.
SEDIMENT CUP CLEANING
Turn the fuel cock lever (1) to the OFF position.
Remove the sediment cup (2) and the O-ring (3).
Remove the cup filter (4) while releasing the tabs (5).
Clean the sediment cup and the cup filter with non-
flammable solvent and allow them to dry thoroughly.
Install the cup filter as the direction shown in the
illustration.
Install a new O-ring and tighten the sediment cup to the
specified torque.
Check the installation part of the sediment cup for any
sign of fuel leakage.
(1)
Gasoline is highly flammable and explosive. You
can be burned or seriously injured when handling
fuel.
• Keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
TORQUE: 3.9 N·m (0.40 kgf·m, 2.9 lbf·ft)
(1)
OFF
ON
(3)
(2)
(4)
(5)
(5)
(5)
(5)
UNDER VIEW:
CARBURETOR
BOSS
BOSS
