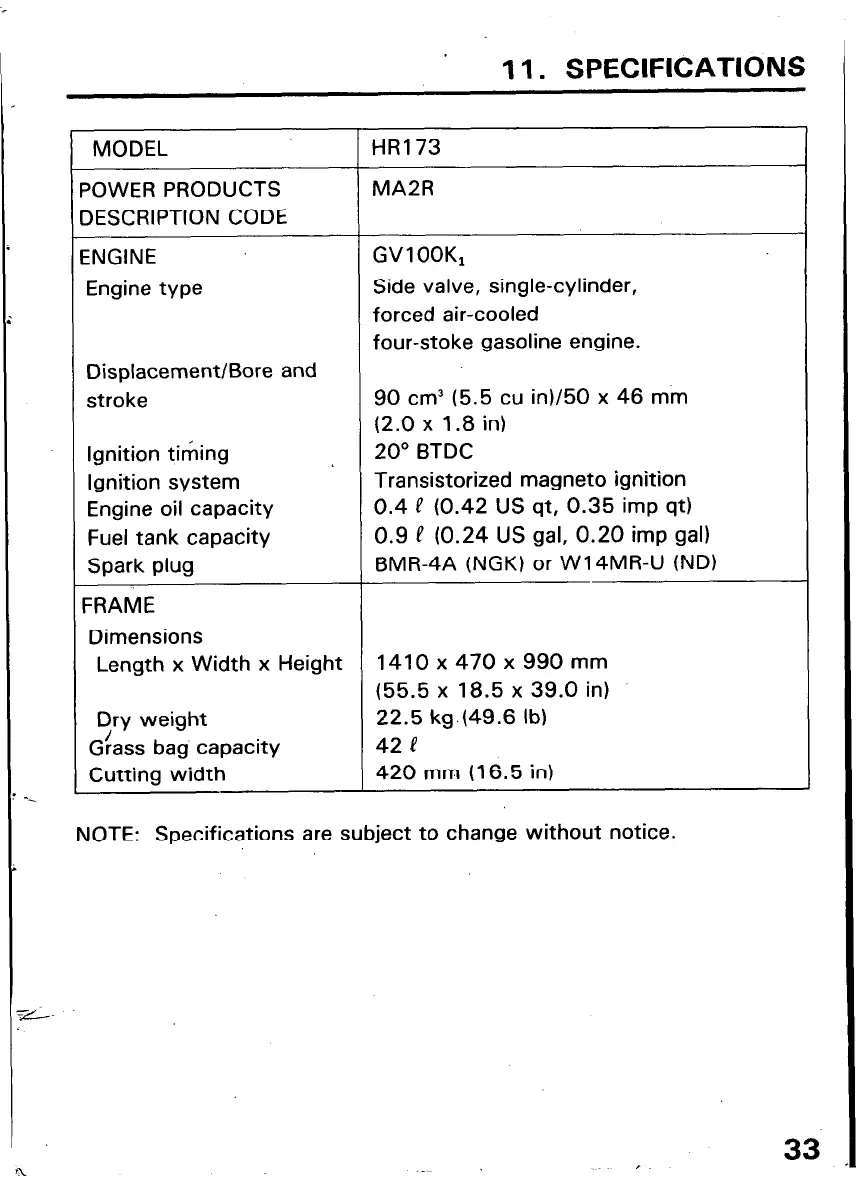

11. SPECIFICATIONS
MODEL
‘OWER PRODUCTS
IESCRIPTION CODE
:NGINE
Engine type
Displacement/Bore and
stroke
Ignition timing
Ignition system
Engine oil capacity
Fuel tank capacity
Spark plug
FRAME
Dimensions
Length x Width x Height
Dry weight
Glass bag capacity
Cutting width
HR173
MA2R
GVl OOK,
Side valve, single-cylinder,
forced air-cooled
four-stoke gasoline engine.
90 cm3 (5.5 cu in)/50 x 46 mm
(2.0 x 1.8 in)
20” BTDC
Transistorized magneto ignition
0.4 e (0.42 US qt, 0.35 imp qt)
0.9 e (0.24 US gal, 0.20 imp gal)
BMR-4A (NGK) or W14MR-U (ND)
141Ox470x990mm
(55.5 x 18.5 x 39.0 in)
22.5 kg.(49.6 lb)
42 d
420 mm (16.5 in)
--
NOTE: Specifications are subject to change without notice.
33
