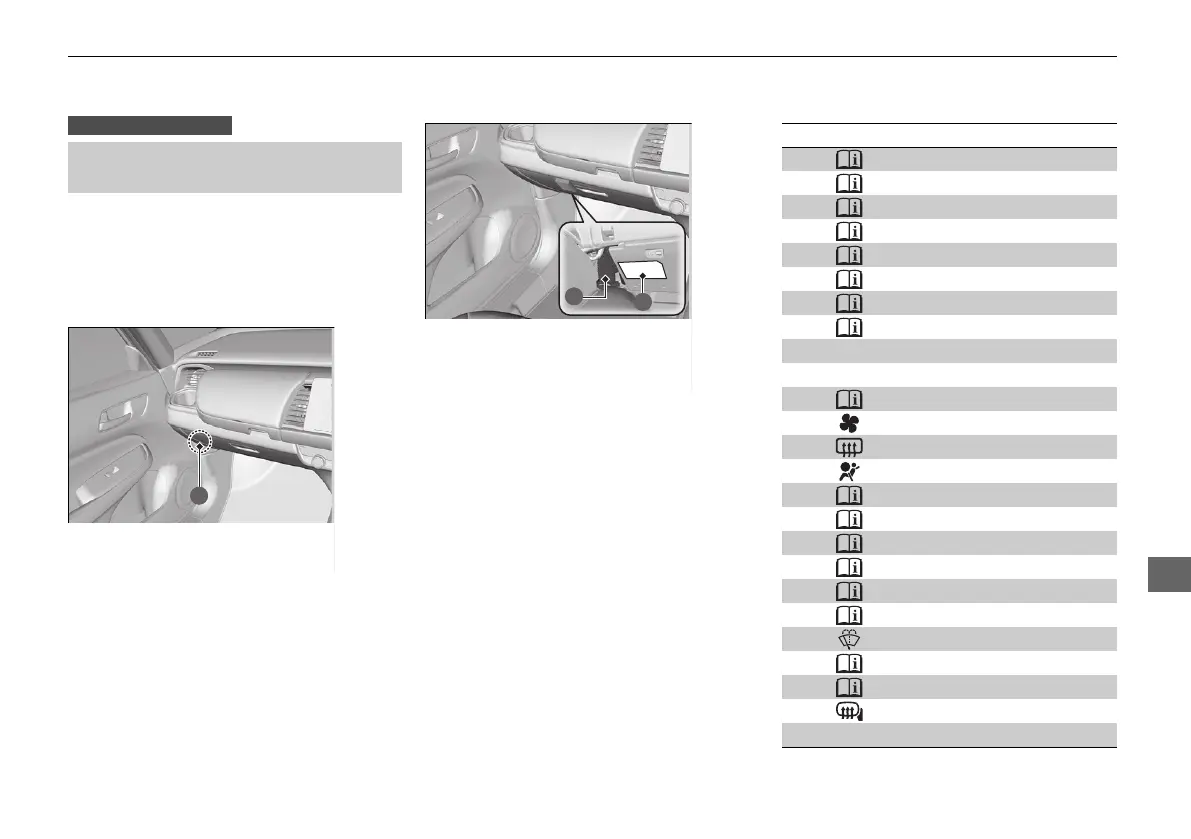

uuFusesuFuse Locations
Handling the Unexpected
Located under the dashboard.
Only the fuse No. 1 is outside of the fuse
box. Replacement of this fuse should be
done by a dealer.
The fuses other than No.1 are under the
dashboard.
■
Passenger Side Interior Fuse
Box
Right-hand drive type
1
a Fuse No. 1
Fuse locations are shown on the label.
Locate the fuse in question by the fuse
number and label number.
2
1
a Fuse Label
b Fuse No. 2-25
Circuit Protected Amps
1 Fuse Box Main 60 A
2 IG Main 30 A
3 IG Main 2 30 A
4 Relay Module 1 30 A
5 Relay Module 2 30 A
6 Fuse Box Main 2 (40 A)
7 Fuse Box Main 3 (40 A)
8 A/C PTC1 (40 A)
9 − − −
10 − − −
11 A/C PTC2 (40 A)
12 Heater Motor 30 A
13 Rear Demister (30 A)
14 SRS 10 A
15 IGB (10A)
16 IGA (10A)
17 Keyless Access (10A)
18 Super Lock
*
(20A)
19 − (10A)
20 Audio Amp
*
(20A)
21 Washer 15A
22 Heated Steering
*
(15A)
23 IGA2 (15A)
24 Heated Door Mirror (10A)
25 − − −
