Honda XR250R User Manual

Installation Note:
x To install the rear wheel, reverse the
removal procedure.

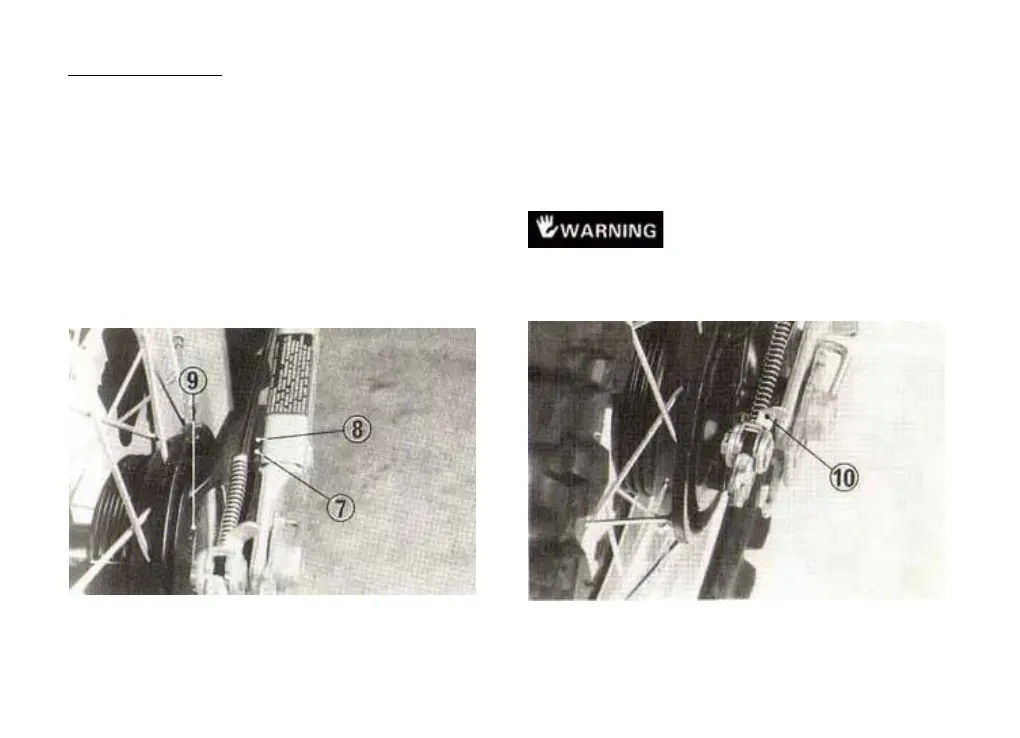

x Make sure that the tang (7) on the
swingarm is located in the slot (8) in the
brake panel (9).
Tighten the axle nut to 80-110 N-m (8.0-
11.0 kg-m, 58-80 ft-lb) torque.
(7) Tang (9) Brake panel
(8) Slot
x Position the brake arm pin holder (10)
correctly.
x Adjust the rear brake (page 19) and drive
chain (pages 27-30).
x Apply the brake several times and check
for free wheel rotation when released.
 If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
(10) Brake arm pin holder
67

Honda XR250R Specifications

General

Displacement	249 cc
Bore x Stroke	73.0 mm x 59.5 mm
Compression Ratio	9.3:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Pro-Link single shock
Front Brake	Single disc
Rear Brake	Drum
Front Tire	80/100-21
Engine Type	Air-cooled, four-stroke, single-cylinder
Fuel Capacity	9.5 liters (2.5 US gal)
