MOUNTING OPTIONS
DANGER
Turn off the circuit breakers and the wall switch to
the fan supply line leads. Failure to disconnect
the power supply prior to installation may result in
serious injury or death.
Fig. 1
Fig. 2
Fig. 3

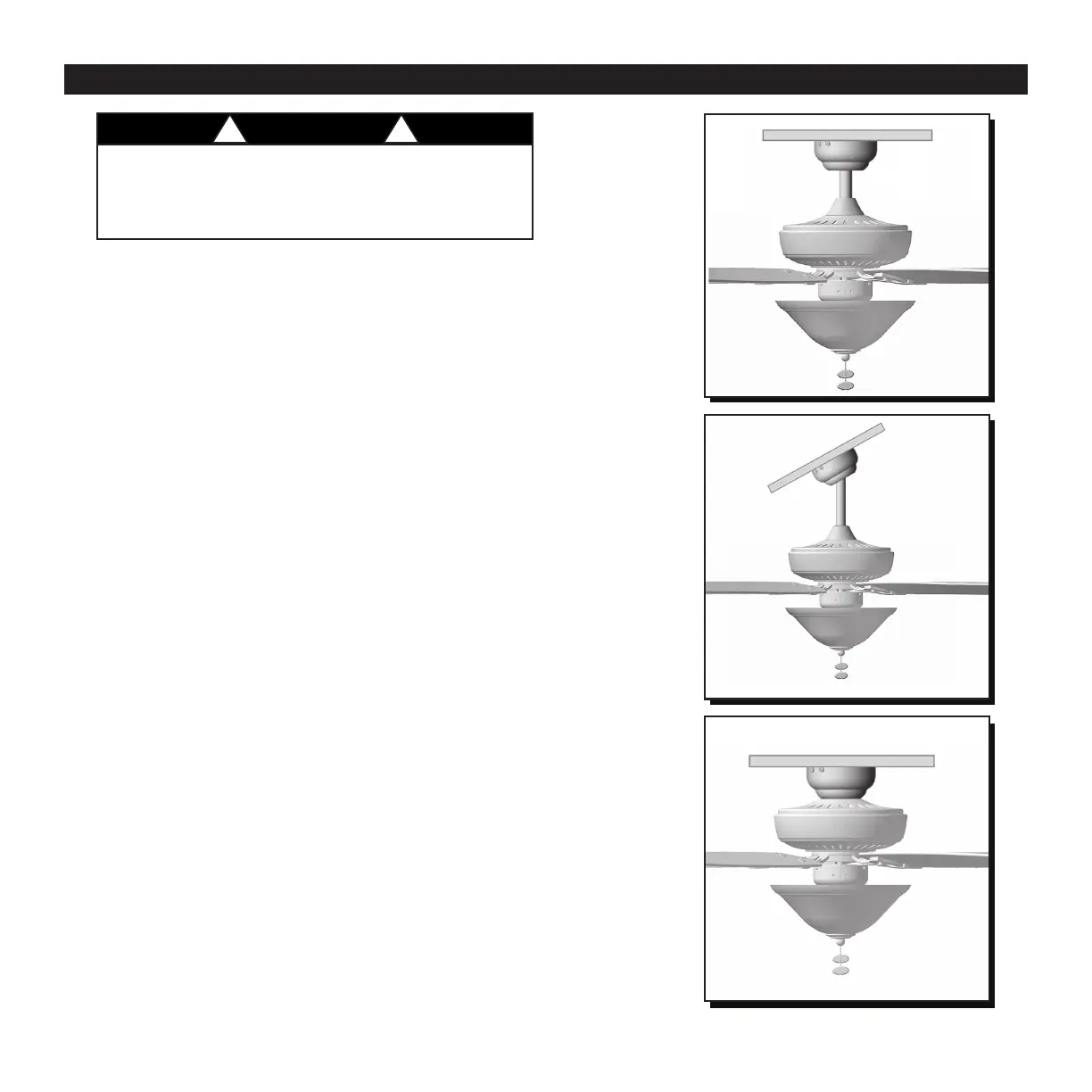

1. Your fan has 3 mounting options:
• Standard (Fig. 1)
• Angled (Fig. 2)
• Closemount (Fig. 3)
Note: The fans in gures 1 through 3 are not the actual
fan in your package, they are representation of the
3 different mounting options.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
Helpful Hint: Standard mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (sold separately).
Angled mounting is best suited for angled or
vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance.
Closemount-style mounting is more suitable for
ceilings lower than 8 ft. (2,44 m) high.
2. Ensure that the blades of the fan are 30 in. (76 cm)
from any obstruction.
3. Check the downrod length to ensure the blades will
be at least 7 ft. (2,14 m) above your oor.
!
!
