7
FINAL INSTALLATION
Figure 5.2Figure 5.1 Figure 5.3
WARNING: Do NOT use a
full-range dimmer to control
the fan speed.
Mounting
Bracket Screw
1. Use wire connnectors to connect household supply and fan wires according to the diagram (Figure 5.1) and the following
steps:
• Connect the green wire from the fan and mounting bracket to the Bare/Green (ground) supply wire.
• Connect the White wire from the fan to the White (neutral) supply wire.
• Connect the Black and Blue wires from the fan to the Black (hot) supply wire.
Note: If there is a second hot supply wire in the outlet box, connect it to the blue (light power) fan wire for separate light and
fan control.
2. Align the canopy over the loosened mounting bracket screws. Place the J-slot of the canopy onto the mount bracket screws
and rotate clockwise (Figure 5.2).
3. Secure the canopy with the two previously removed mounting bracket screws. Tighten all the mounting bracket screws
securely (Figure 5.3).
Wire Connector
Mounting
Bracket Screw
Black (hot)
White (neutral)
Bare/Green
(ground)
Black
Blue
White
Green
Figure 4.2Figure 4.1 Figure 4.3
Braided Cable
Brace
Open Loop
Secondary Support Screw
Support
Washer
Spring
Washer
Secondary
Support Screw

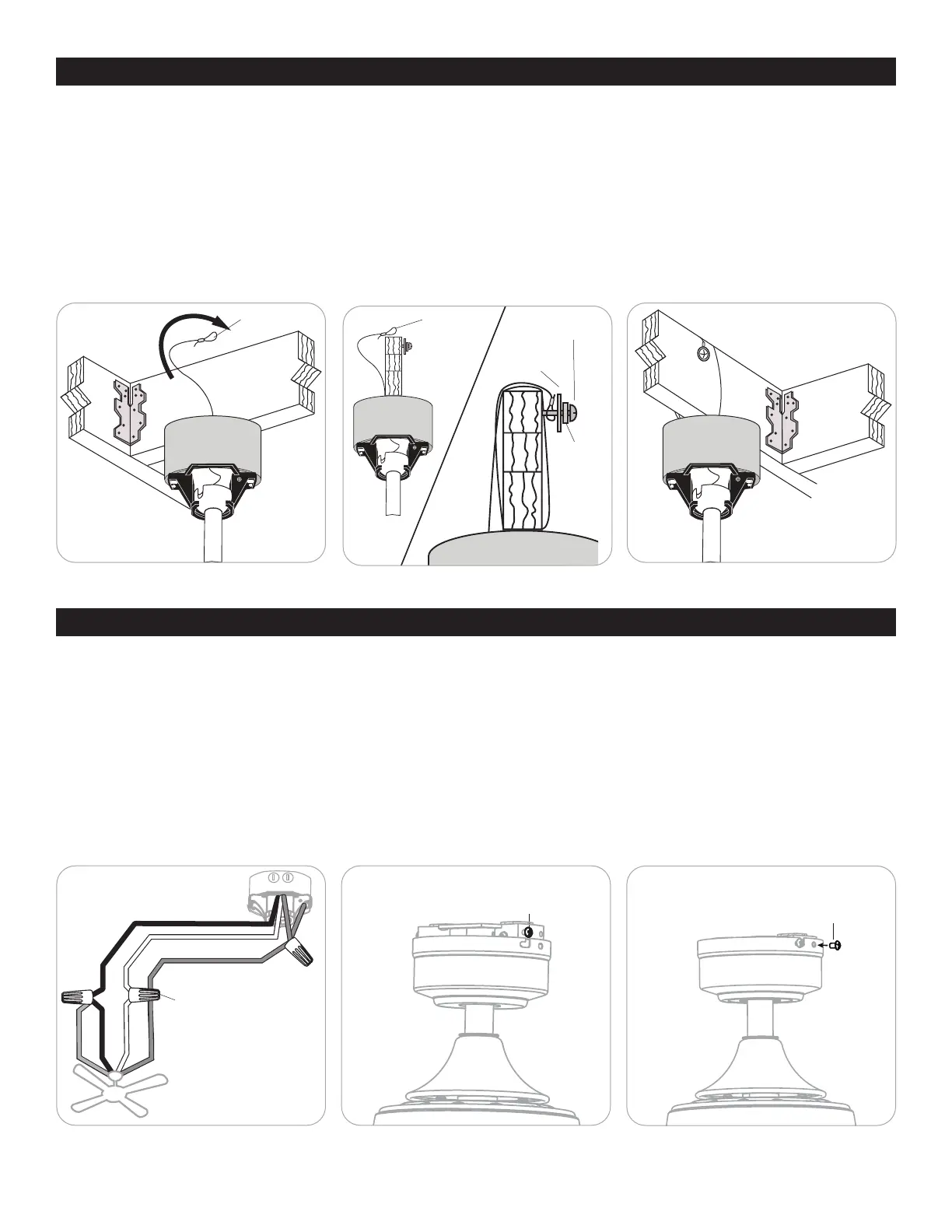

SECONDARY HANGING SYSTEM INSTRUCTIONS
1. WARNING: Secondary support is required for this product. Failure to follow the steps below could result in property damage
and/or personal injury. Feed the loop of the braided cable, preassembled to the motor assembly, up through the outlet box
mounted in the ceiling (Figure 4.1).
2. Install secondary support screw, spring washer and support washer partly into the side of the brace installed in the ceiling.
Then loop the braided cable up and over the ceiling brace and place the open loop of the braided cable around the secondary
support screw. Note: The ceiling support brace may not be accessible from below. If not, it must be accessed from above.
Important: The braided cable must make a complete circle around the support brace to secure the fan (Figure 4.2).
3. Tighten the secondary support screw, securing the braided cable (Figure 4.3).
For installation in the United States: Building codes in the U.S.A. do not require installation of a Secondary Hanging System.
If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to FINAL INSTALLATION. For
installation in Canada: In compliance with building codes in Canada, installation of the Secondary Hanging System is required.
To Next Page
