DELTANET R7515A/B, RP7515A/B, R7516B MICROCEL
™
CONTROLLERS
WARNINGS
1. Do not mount MicroCel with integral damper
actuator where acid fumes or other corrosive
vapors might contact and corrode metal parts.
2. Do not mount MicroCel with integral damper
actuator where there is escaping gas or other
explosive vapors. The electrical arcing in the
actuator could cause an explosion.
NOTE: The R7516B is furnished with a 4074ENH Bag
Assembly that contains a 201391 Shaft
Adapter (“Shaft Adapter”) and a 201614
Range Stop Pin (“Pin”), which are used in the
following procedure.
C3956-2
1/8 IN. ALLEN
SETSCREWS
CW
COM
CCW
HOUSING
OUTPUT
HUB
RANGE
STOP
PIN
C
W
C
C
W
CW
CCW
45°
60° 60°
45°

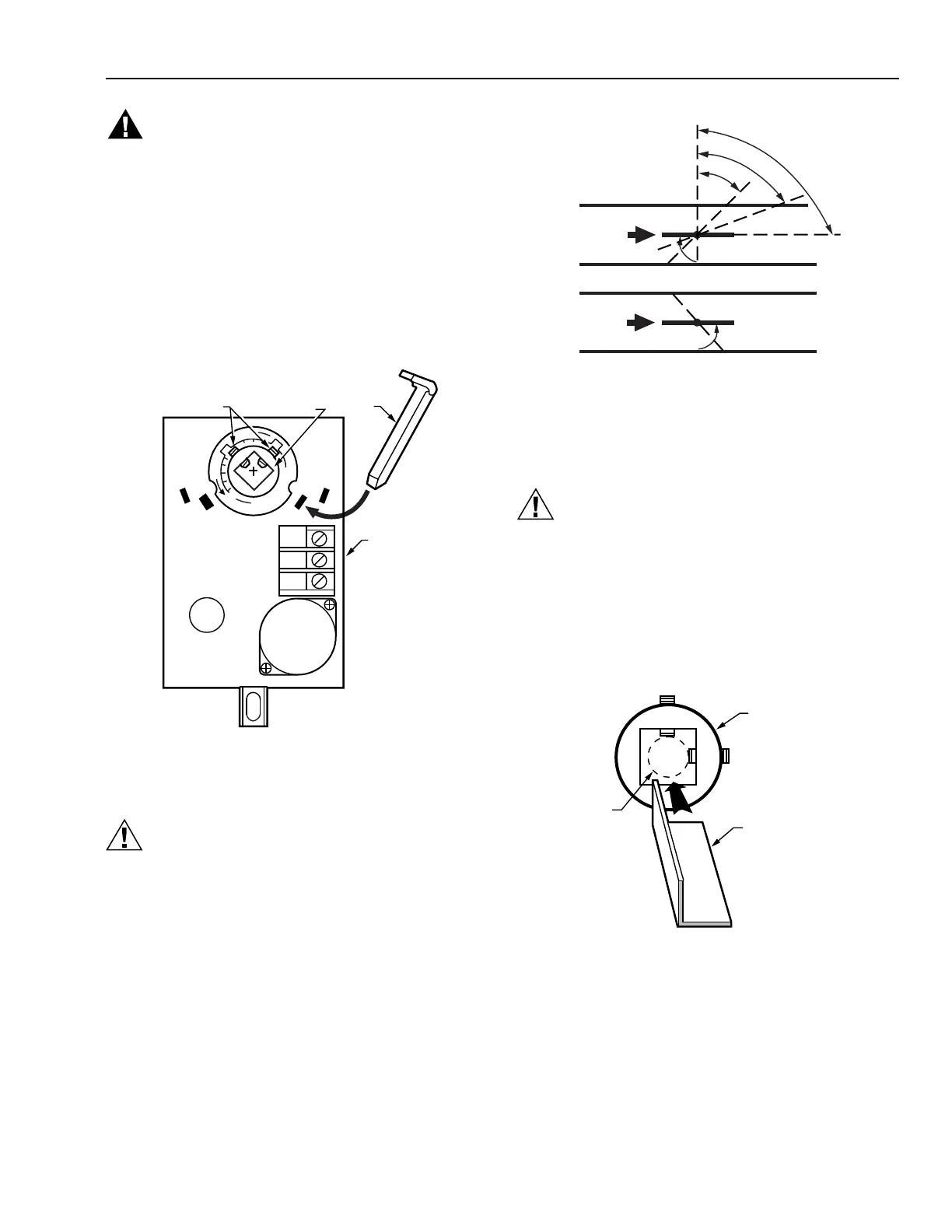

Fig. 5. Damper Actuator with Output
Hub in Full CW Position.
CAUTION
To prevent damage to gear train, never turn actuator
shaft by hand or with a wrench.
Before installing, determine the following:
a. Direction the damper shaft moves to open the
damper (Fig. 6): cw or ccw
b. Size of damper shaft: 3/8 or 1/2 in. (9 or 12 mm)
NOTE: Damper shaft must extend at least 2-1/2 in.
(63 mm) from damper housing.
c. Degrees of travel for damper to open: (Fig. 6.) 45,
60, or 90 degrees
AIRFLOW
AIRFLOW
CW TO OPEN, CCW TO CLOSE
45-DEGREE ROTATION
60-DEGREE ROTATION
90-DEGREE ROTATION
CCW TO OPEN, CW TO CLOSE
C3957-1
Fig. 6. Determining Direction of Damper Opening.
Position damper shaft so that damper is in most
clockwise position (Fig. 6):
a. Open for cw-to-open damper.
b. Closed for ccw-to-open damper.
CAUTION
To prevent serious control problems, do not position
cw-to-open dampers that do not have a full-open
damper stop at a setting greater than full open.
Loosen two cover mounting screws on MicroCel and
remove cover.
If damper shaft is 3/8 in. (9 mm) round or square, insert
Shaft Adapter into actuator output hub (Fig. 7) across
from Allen setscrews.
OUTPUT HUB
3/8-IN.
DAMPER
SHAFT
SHAFT ADAPTER
C5656
Fig. 7. Using 201391 Shaft Adapter for
3/8-In. Damper Shaft.
5
95-6083
